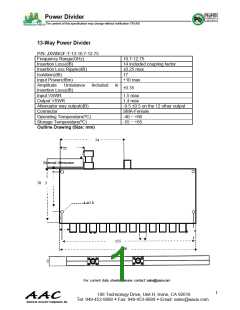

Power Divider
The content of this specification may change without notification 7/01/09
13-Way Power Divider
P/N: JXWBGF-T-13-10.7-12.75
Frequency Range(GHz)
Insertion Loss(dB)
Insertion Loss Ripple(dB)
Isolation(dB)
10.7-12.75
14 included coupling factor
±0.25 max
17
Input Power(dBm)
+10 max
Amplitude
Insertion Loss(dB)
Unbalance Included in
±0.35
Input VSWR
1.5 max
Output VSWR
1.4 max
Attenuator way output(dB)
Connector
Operating Temperature(ºC)
Storage Temperature(ºC)
Outline Drawing (Size: mm)
-9.5 ±0.5 on the 12 other output
SMA-Female
-40 ~ +80
-55 ~ +85
74
22
External Attenuator
7
3
78
4-ø2.8
8
8
9
155
160
For current data sheets, please contact: sales@aacix.com
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
