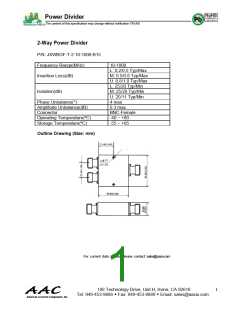

Power Divider
The content of this specification may change without notification 7/01/09
2-Way Power Divider
P/N: JXWBGF-T-2-10-1000-B15
Frequency Range(MHz)
Insertion Loss(dB)
10-1000
L: 0.2/0.5 Typ/Max
M: 0.5/0.8 Typ/Max
U: 0.8/1.0 Typ/Max
L: 25/20 Typ/Min
M: 25/20 Typ/Min
U: 20/11 Typ/Min
4 max
0.3 max
BNC-Female
-40 ~ +80
Isolation(dB)
Phase Unbalance(°)
Amplitude Unbalance(dB)
Connector
Operating Temperature(ºC)
Storage Temperature(ºC)
-55 ~ +85
Outline Drawing (Size: mm)
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
