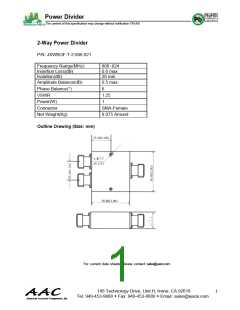

Power Divider
The content of this specification may change without notification 7/01/09
2-Way Power Divider
P/N: JXWBGF-T-2-806-821
Frequency Range(MHz)
Insertion Loss(dB)
Isolation(dB)
806~824
0.8 max
20 min
Amplitude Balance(dB)
0.5 max
Phase Balance(°)
VSWR
6
1.25
Power(W)
1
Connector
SMA-Female
0.075 Around
Net Weight(Kg)
Outline Drawing (Size: mm)
