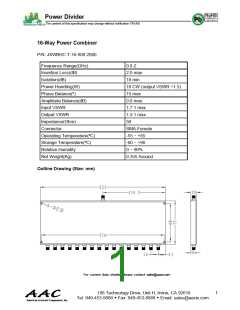

Power Divider
The content of this specification may change without notification 7/01/09
16-Way Power Combiner
P/N: JXWBHC-T-16-800-2000
Frequency Range(GHz)
Insertion Loss(dB)
Isolation(dB)
0.8-2
2.0 max
18 min
Power Handling(W)
Phase Balance(º)
Amplitude Balance(dB)
Input VSWR
10 CW (output VSWR <1.5)
15 max
0.8 max
1.7:1 max
1.5:1 max
50
Output VSWR
Impedance(Ohm)
Connector
SMA-Female
-55 ~ +85
-60 ~ +90
0 ~ 90%
Operating Temperature(ºC)
Storage Temperature(ºC)
Relative Humidity
Net Weight(Kg)
0.355 Around
Outline Drawing (Size: mm)
For current data sheets, please contact: sales@aacix.com
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
