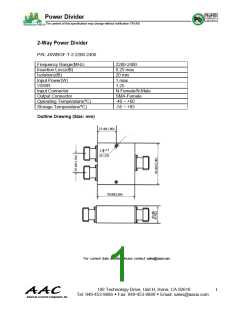

Power Divider
The content of this specification may change without notification 7/01/09
2-Way Power Divider
P/N: JXWBGF-T-2-2200-2400
Frequency Range(MHz)
Insertion Loss(dB)
Isolation(dB)
2200-2400
0.25 max
20 min
Input Power(W)
1 max
VSWR
1.25
Input Connector
N-Female/N-Male
SMA-Female
-40 ~ +80
-55 ~ +85
Output Connector
Operating Temperature(ºC)
Storage Temperature(ºC)
Outline Drawing (Size: mm)
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
