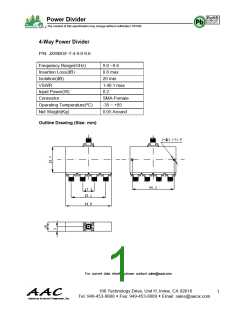

Power Divider
The content of this specification may change without notification 7/01/09
4-Way Power Divider
P/N: JXWBGF-T-4-9.0-9.6
Frequency Range(GHz)
Insertion Loss(dB)
Isolation(dB)
9.0 ~9.6
0.6 max
20 min
VSWR
1.40:1 max
0.2
Input Power(W)
Connector
SMA-Female
-35 ~ +85
0.05 Around
Operating Temperature(ºC)
Net Weight(Kg)
Outline Drawing (Size: mm)
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
