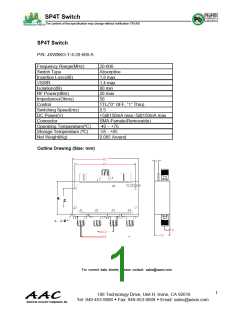

SP4T Switch
The content of this specification may change without notification 7/01/09
SP4T Switch
P/N: JXWBKG-T-4-20-600-A
Frequency Range(MHz)
Switch Type
20-600
Absorptive
Insertion Loss(dB)
VSWR
1.8 max
1.4 max
Isolation(dB)
80 min
RF Power(dBm)
Impedance(Ohms)
Control
Switching Speed(ms)
DC Power(V)
20 max
50
TTL(“0” OFF, “1” Thru)
0.5
+5@150mA max;-5@150mA max
SMA-Female(Removable)
-40 ~ +70
Connector
Operating Temperature(ºC)
Storage Temperature (ºC)
Net Weight(Kg)
-55 - +85
0.085 Around
Outline Drawing (Size: mm)
52
3
48
C1
C2C3C4
J0
J3
J1
J2
J4
4- 2.2
4
13
39
12
For current data sheets, please contact: sales@aacix.com
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
