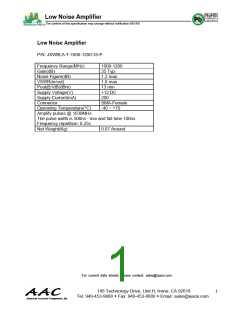

Low Noise Amplifier
The content of this specification may change without notification 8/01/09
Low Noise Amplifier
P/N: JXWBLA-T-1000-1200-35-P
Frequency Range(MHz)
Gain(dB)
1000-1200
35 Typ.
Noise Figure(dB)
VSWR(in/out)
Pout@1dB(dBm)
Supply Voltage(V)
Supply Current(mA)
Connector
1.2 max
1.8 max
13 min
+12 DC
200
SMA-Female
-40 ~ +70
Operating Temperature(°C)
Amplify pulses @ 1030MHz.
The pulse width is 500ns - rise and fall time 100ns
Frequency repetition: 0.25s
Net Weight(Kg)
0.07 Around
