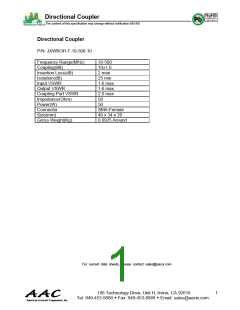

Directional Coupler
The content of this specification may change without notification 8/01/09
Directional Coupler
P/N: JXWBOH-T-10-500-10
Frequency Range(MHz)
Coupling(dB)
10-500
10±1.0
Insertion Loss(dB)
Isolation(dB)
2 max
25 min
Input VSWR
1.6 max
1.6 max
2.0 max
50
Output VSWR
Coupling Port VSWR
Impedance(Ohm)
Power(W)
50
Connector
Size(mm)
Gross Weight(Kg)
SMA-Female
40 x 34 x 20
0.0925 Around
