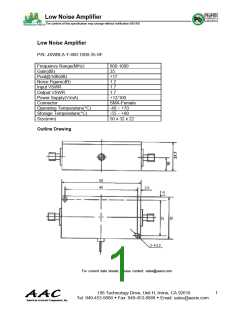

Low Noise Amplifier
The content of this specification may change without notification 8/01/09
Low Noise Amplifier
P/N: JXWBLA-T-800-1000-35-SF
Frequency Range(MHz)
Gain(dB)
800-1000
35
Pout@1dB(dB)
+17
Noise Figure(dB)
Input VSWR
1.2
1.7
Output VSWR
1.7
Power Supply(V/mA)
Connector
Operating Temperature(°C)
Storage Temperature(°C)
Size(mm)
+12/100
SMA-Female
-40 ~ +70
-55 ~ +80
50 x 32 x 22
Outline Drawing
For current data sheets, please contact: sales@aacix.com
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
