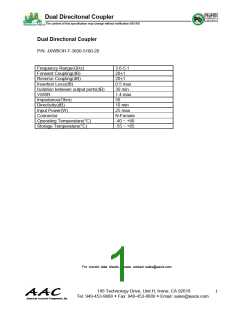

Dual Direcitonal Coupler
The content of this specification may change without notification 8/01/09
Dual Directional Coupler
P/N: JXWBOH-T-3600-5100-20
Frequency Range(GHz)
Forward Coupling(dB)
Reverse Coupling(dB)
Insertion Loss(dB)
Isolation between output ports(dB)
VSWR
3.6-5.1
20±1
20±1
0.5 max
30 min
1.4 max
50
Impedance(Ohm)
Directivity(dB)
Input Power(W)
Connector
Operating Temperature(°C)
Storage Temperature(°C)
10 min
25 max
N-Female
-40 ~ +80
-55 ~ +85
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
