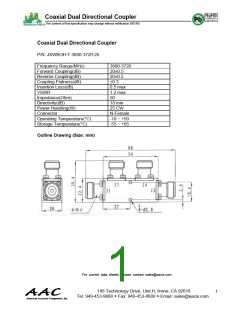

Coaxial Dual Directional Coupler
The content of this specification may change without notification 8/01/09
Coaxial Dual Directional Coupler
P/N: JXWBOH-T-3680-3720-20
Frequency Range(MHz)
Forward Coupling(dB)
Reverse Coupling(dB)
Coupling Flatness(dB)
Insertion Loss(dB)
VSWR
3680-3720
20±0.5
20±0.5
±0.3
0.5 max
1.2 max
50
Impedance(Ohm)
Directivity(dB)
18 min
Power Handling(W)
Connector
Operating Temperature(°C)
Storage Temperature(°C)
25 CW
N-Female
-10 ~ +50
-55 ~ +85
Outline Drawing (Size: mm)
