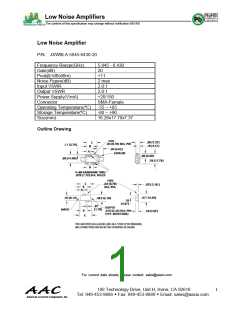

Low Noise Amplifiers
The content of this specification may change without notification 8/01/09
Low Noise Amplifier
P/N: JXWBLA-5845-6430-20
Frequency Range(GHz)
Gain(dB)
5.845 - 6.430
20
Pout@1dB(dBm)
Noise Figure(dB)
Input VSWR
+11
2 max
2.0:1
Output VSWR
2.0:1
Power Supply(V/mA)
Connector
Operating Temperature(ºC)
Storage Temperature(ºC)
Size(mm)
+20/150
SMA-Female
-55 ~ +85
-60 ~ +90
16.26x17.78x7.37
Outline Drawing
