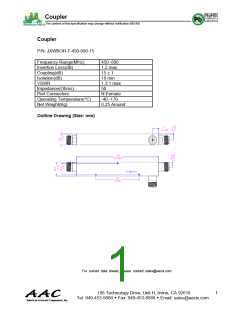

Coupler
The content of this specification may change without notification 8/01/09
Coupler
P/N: JXWBOH-T-450-890-15
Frequency Range(MHz)
Insertion Loss(dB)
Coupling(dB)
450~890
1.2 max
15 ± 1
Isolation(dB)
18 min
VSWR
1.3:1 max
50
N-Female
-40~+70
0.25 Around
Impedance(Ohms)
Port Connectors
Operating Temperature(°C)
Net Weight(Kg)
Outline Drawing (Size: mm)
