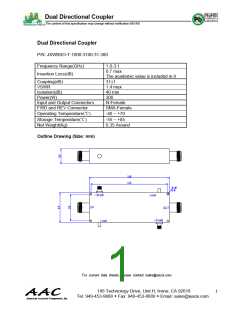

Dual Directional Coupler
The content of this specification may change without notification 8/01/09
Dual Directional Coupler
P/N: JXWBSO-T-1000-3100-31-300
Frequency Range(GHz)
Insertion Loss(dB)
1.0-3.1
0.7 max
The academic value is included in it
Coupling(dB)
31±1
VSWR
Isolation(dB)
1.4 max
40 min
Power(W)
300
Input and Output Connectors
FWD and REV Connector
Operating Temperature(℃)
Storage Temperature(℃)
Net Weight(Kg)
N-Female
SMA-Female
-40 ~ +70
-55 ~ +85
0.35 Around
Outline Drawing (Size: mm)
Load
Load
