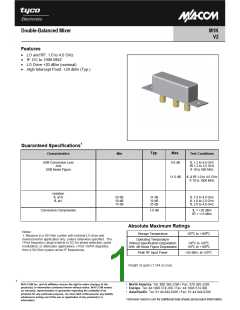

D o u b le -B a la n c e d Mix e r
M1K
V 2
Features
ñ
ñ
ñ
ñ
LO and RF: 1.0 to 4.0 GHz
IF: DC to 1000 MHZ
LO Drive +20 dBm (nominal)
High Intercept Point: +28 dBm (Typ.)
Guaranteed Specifications1
Typ.
Max.
Characteristics
Min
Test Conditions
SSB Conversion Loss
And
SSB Noise Figure
9.0 dB
fL 1.2 to 4.0 GHz
fR 1.2 to 3.5 GHz
fI 10 to 500 MHz
11.0 dB
fL & fR 1.0 to 4.0 GHz
fI 10 to 1000 MHz
Isolation
fL at R
fL at I
20 dB
10 dB
15 dB
31 dB
19 dB
25 dB
fL 1.0 to 4.0 GHz
fL 1.0 to 2.0 GHz
fL 2.0 to 4.0 GHz
Conversion Compression
1.0 dB
fL = +20 dBm
fR = +13 dBm
Absolute Maximum Ratings
Notes:
Storage Temperature
-65oC to +100oC
1. Measure in a 50-Ohm system with nominal LO drive and
downconverter application only, unless otherwise specified. The
I-Port frequency range extends to DC for phase detection, pulse
modulation, or attenuator applications, I-Port VSW R degrades
from a 50-Ohm system at low IF frequencies.
Operating Temperature
W ithout Specification Degradation
W ith dB Noise Figure Degradation
-54oC to +85oC
-54oC to +100oC
Peak RF Input Power
+26 dBm, at +25oC
W eight 33 gram (1.164 oz) max.
