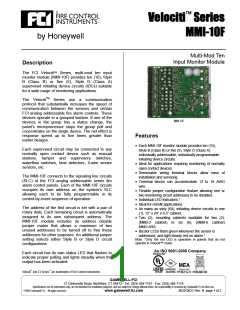

Velociti™ Series
MMI-10F
Multi-Mod Ten
Input Monitor Module
Description
The FCI Velociti™ Series, multi-mod ten input
monitor module (MMI-10F) provides ten (10), Style
B (Class B) or five (5), Style D (Class A)
supervised initiating device circuits (IDCs) suitable
for a wide range of monitoring applications.
The VelocitiTM Series use
a
communication
protocol that substantially increases the speed of
communication between the sensors and certain
FCI analog addressable fire alarm controls. These
devices operate in a grouped fashion. If one of the
devices in the group has a status change, the
panel’s microprocessor stops the group poll and
concentrates on the single device. The net effect is
response speed up to five times greater than
earlier designs.
MMI-10F
Features
• Each MMI-10F monitor module provides ten (10),
Style B (Class B) or five (5), Style D (Class A)
individually addressable, individually programmable
initiating device circuits.
• Ideal for applications requiring monitoring of normally
open contact devices.
Each supervised circuit may be connected to any
normally open contact device such as manual
stations, tamper and supervisory switches,
waterflow switches, heat detectors, 4-wire smoke
sensors, etc.
• Removable wiring terminal blocks allow ease of
installation and servicing.
• Terminal blocks can accommodate 12 to 18 AWG
wire.
• Flexible jumper configuration feature allowing one or
two monitoring circuit addresses to be disabled.
• Individual LED indicators.*
The MMI-10F connects to the signaling line circuits
(SLC) of the FCI analog addressable series fire
alarm control panels. Each of the MMI-10F circuits
occupies its own address on the system’s SLC
allowing each to be fully programmable in its
control-by-event sequence of operation.
• Ideal for retrofit applications.
• As many as sixty (60), initiating device circuits in one
(1), 12” x 24” x 6.5” cabinet.
• Two (2), mounting cabinets available for two (2),
(MBB-2 cabinet) to six (6), (MBB-6 cabinet)
MMO-6RS.
• Bicolor LEDs flash green whenever the sensor is
addressed, and light steady red on alarm.*
Note: *Only the red LED is operative in panels that do not
operate in Velociti™ mode.
The address of the first circuit is set with a pair of
rotary dials. Each remaining circuit is automatically
assigned to its own subsequent address. The
MMI-10F module includes an address disable
jumper matrix that allows a maximum of two
unused addresses to be turned off to free these
addresses for other purposes. An additional jumper
setting selects either Style B or Style D circuit
configurations.
An ISO 9001-2000 Company
Each circuit has its own status LED that flashes to
indicate proper polling and lights steadily when the
output has been activated.
Velociti™ and E3 Series™ are trademarks of Fire Control Instruments.
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118
Specifications are for information only, are not intended for installation purposes, and are subject to change without notice. No responsibility is assumed by Gamewell-FCI for their use.
©2006 Gamewell-FCI. All rights reserved.
www.gamewell.fci.com
9020-0631 Rev. B page 1 of 2
