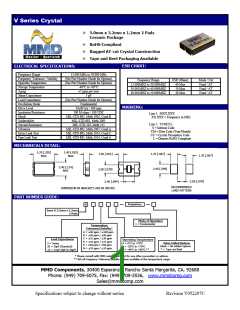

V Series Crystal
¾ 5.0mm x 3.2mm x 1.2mm 2 Pads
Ceramic Package
¾ RoHS Compliant
¾ Rugged AT-cut Crystal Construction
¾ Tape and Reel Packaging Available
ESR CHART:
ELECTRICAL SPECIFICATIONS:
Frequency Range
Frequency Tolerance / Stability
Operable Temperature
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Oscillation Mode
Drive Level
12.000 MHz to 50.000 MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
Frequency Range
ESR (Ohms)
60 Max
50 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
12.000MHZ to 30.000MHZ
30.001MHZ to 40.000MHZ
40.001MHZ to 50.000MHZ
±5 ppm per year
40 Max
5 pF
(See Part Number Guide for Options)
Fundamental
MARKING:
10µW typ / 300 max
Insulation Resistance
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
500 M ohms / 100 VDC
MIL-STD-883, Meth 2002, Cond B
MIL-STD-883, Meth 2003
MIL-STD-202, Meth 215
MIL-STD-883, Meth 2007, Cond A
MIL-STD-883, Meth 1014, Cond C
MIL-STD-883, Meth 1014, Cond A
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MECHANICALS DETAIL:
5.20 [.205]
MAX
1.40 [.055]
1.30 [.051]
1.70 [.067]
2.40 [.094]
1.70 [.067]
MAX
3.40 [.134]
MAX
2.00 [.079]
2.00 [.079]
2.40 [.094]
RECOMMENDED
LAND PATTERN
DIMENSION IN BRACKETS ARE IN INCHES
PART NUMBER GUIDE:
Frequency
V
5mm X 3.2mm x 1.2mm
2 Pads
Mode of Operation
1 = Fundamental
Temperature
Tolerance/Stability*
A = ±50 ppm / ±100 ppm
B = ±30 ppm / ±50 ppm
C = ±15 ppm / ±30 ppm
D = ±10 ppm / ±15 ppm
E = ±50 ppm / ±50 ppm
N = ±10 ppm / ±10 ppm
Load Capacitance
S = Series
20 = 20pF (Standard)
Operating Temperature
A = 0°C to +70°C
B = -20°C to +70°C
Value Added Options
Blank = No Added Options
T = Tape and Reel
C = -40°C to +85°C **
XX = XXpF (8pF to 50pF)
* Please consult with MMD sales department for any other parameters or options.
** Not all Frequency Tolerance/Stability options available at this temperature range.
MMD Components, 30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536, www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision V052207C
