OTS-1V2ATR1DTR1ETR

型号:

OTS-1V2ATR1DTR1ETR

描述:

OPTIVA标准,1个复合视频, 2复式模拟音频,1个全双工RS -232 /422/ 485和1复式10/100 Mbps以太网[ Optiva Standard, 1 Composite Video, 2 Duplex Analog Audio,1 Duplex RS-232/422/485 and 1 Duplex 10/100 Mbps Ethernet ]

品牌:

OPTICOMM[ Opticomm Corporation ]

页数:

2 页

PDF大小:

213 K

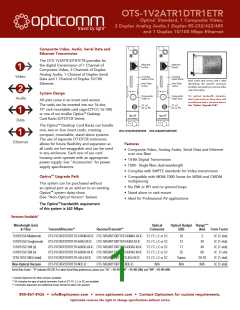

OTS-1V2ATR1DTR1ETR
Optiva™ Standard, 1 Composite Video,
2 Duplex Analog Audio,1 Duplex RS-232/422/485
and 1 Duplex 10/100 Mbps Ethernet
Composite Video, Audio, Serial Data and
Ethernet Transmission
The OTS-1V2ATR1DTR1ETR provides for
the digital transmission of 1 Channel of
Composite Video, 2 Channels of Duplex
Analog Audio, 1 Channel of Duplex Serial
Data and 1 Channel of Duplex 10/100
Ethernet.
Ethernet
In/Out
Ethernet
Out/In
2 Analog
Audio In/Out
2 Analog
Audio Out/In
Video
Audio
Each insert card comes with a label
identifying the specific protocols
handled, connector pin-out and other
vital information.
Serial Data
In/Out
Serial Data
In/Out
A
L
E
R
T
A
L
E
R
T
S
S
T
A
T
U
S
T
A
T
U
S
System Design
For optimal bandwidth allocation,
each insert card can daisy-chain with
an additional card in the same chassis.
See “Optiva™ Upgrade Path”.
Composite
Video In
Composite
Video Out
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva™ Desktop
Card Racks (OT-DTCR Series).
ST, LC,
SC or FC
ST, LC,
SC or FC
™
™
Optiav
Optiav
VAD Transmission
VAD Transmission
Data
The Optiva™ Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
OTS-1VT2ATR1DTR1ETR OTS-1VR2ART1DRT1ERT
Ethernet
Features
• Composite Video, Analog Audio, Serial Data and Ethernet
over one fiber
• 10-Bit Digital Transmission
• TDM - Single fiber, dual wavelength
• Complies with SMPTE standards for Video transmission
Optiva™ Upgrade Path
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
This system can be purchased without
an optical port as an add-on to an existing
Optiva™ system daisy-chain.
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
(See “Non-Optical Version” below).
• Ideal for Professional AV applications
The Optiva™ bandwidth requirement
of this system is 542 Mbps.
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit/Receive**
Receive/Transmit**
(dB)
(km) Form Factor
1310/1550 Multimode
OTS-1VT2ATR1DTR1ETR-A1/A3M-XX-IC OTS-1VR2ART1DRT1ERT-A3M/A1-XX-IC ST, FC, LC or SC
OTS-1VR2ART1DRT1ERT-A3/A2-XX-IC ST, FC, LC or SC
10
12
3
20
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot
IC (1-slot)
1310/1550 Singlemode OTS-1VT2ATR1DTR1ETR-A2/A3-XX-IC
1310/1550 SM (D)
1310/1550 SM (H)
1270-1610 SM (CWDM)
OTS-1VT2ATR1DTR1ETR-A2/A3D-XX-IC OTS-1VR2ART1DRT1ERT-A3D/A2-XX-IC ST, FC, LC or SC
OTS-1VT2ATR1DTR1ETR-A2/A3H-XX-IC OTS-1VR2ART1DRT1ERT-A3H/A2-XX-IC ST, FC, LC or SC
17
40
25
60
OTS-1VT2ATR1DTR1ETR-L4/L4-XX-IC
OTS-1VT2ATR1DTR1ETR-NOC-IC
OTS-1VR2ART1DRT1ERT-L4/L4-XX-IC
OTS-1VR2ART1DRT1RT-NOC-IC
ST, FC, LC or SC
N/A
Varies
20-70
Non-Optical Version
N/A
N/A
IC (1-slot)
Serial Data Codes - "D" indicates RS-232. For other Serial Data preferences, please use: "DJ" = RS-422; "DK" = RS-485 (2W); and "DW" = RS-485 (4W).
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
Composite Video,
Audio & Data
Video
Standard
™
SMPTE 170M; RS-250C
Optiva Configurable
Bit Resolution
Level
10-Bit Processing; 10-Bit Transmission
Communication Platform
1.0 Volt p-p
5.5 MHz
< 1%
< 0.7°
NTSC, PAL
> 67 dB
BNC (IEC 60169-8)
Bandwidth
Network Management
Differential Gain
Differential Phase
Compatibility
Signal to Noise Ratio
Connector
SDI & HD-SDI
Composite Video,
Audio & Data
Analog Audio
Level
6 dBm In/Out
20 Hz to 20 KHz
> 80 dB
Impedance Options:
Input
RGB/VGA/DVI
Bandwidth
Output
Signal to Noise Ratio
Total Harmonic Distortion
Signal Coding
Balanced 600 Ohm Balanced 600 Ohm
Audio/FSK/Intercom
< 0.1%
Balanced Hi-Z
Unbalanced Hi-Z
Balanced Low-Z
Unbalanced Low-Z
20-bit
Micro DB25
Data (Ethernet/Serial/USB)
Connector
CATV/RF & L-Band
Data
Connector
RS-232, RS-422
Data Rate
RS-485 (2 Wire)
Data Rate
RS-485 (4 Wire)
Data Rate
Micro DB25
Optical Switching, Routing
& Redundancy
DC to 1 Mbps
DC to 1 Mbps
DC to 1 Mbps
DC to 1 Mbps
Passive Multiplexing
Solutions
Enclosures, Racks
Contact Closure
Data Rate
& Frames
Ethernet
Standard
Data Rate
Connector
Power Supplies
& Accessories
Ethernet IEEE 802.3 (Auto-Negotiation)
10/100 Mbps
RJ-45
General
Dimensions & Weight
Operating temperature
Storage temperature
Humidity
Insert Card (IC): 6.3” L x 0.8” W x 4.0” H
-20° C to +55° C
-40° C to +85° C
0 to 95% non-condensing
9-12 VDC
11 oz
Operating voltage
Consumption
System Latency
1 Amp Max per Insert Card
Less than 1ms (Audio <10ms)
Local Monitoring
LED Status Indication
MADE IN THE USA
™
Remote Monitoring
Compatible with OptivaView
SNMP Management Suite
Sample Configuration
