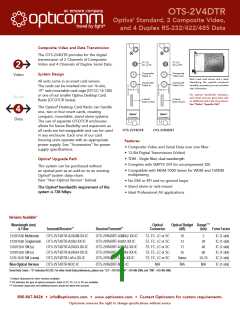

OTS-2V4DTR
®
Optiva Standard, 2 Composite Video,
and 4 Duplex RS-232/422/485 Data
Composite Video and Data Transmission
The OTS-2V4DTR provides for the digital
transmission of 2 Channels of Composite
Video and 4 Channels of Duplex Serial Data.
ST, LC,
SC or FC
ST, LC,
SC or FC
Composite
Video In
Composite
Video Out
System Design
Video
Audio
Data
Each insert card comes with a label
identifying the specific protocols
handled, connector pin-out and other
vital information.
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva Desktop Card
Racks (OT-DTCR Series).
Composite
Video In
Composite
Video Out
A
L
E
R
T
A
L
E
R
T
S
S
T
A
T
U
S
T
A
T
U
S
For optimal bandwidth allocation,
each insert card can daisy-chain with
an additional card in the same chassis.
See “Optiva™ Upgrade Path”.
4 Serial
Data In/Out
4 Serial
Data Out/In
®
The Optiva Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
™
™
Optiva
Optiva
VAD Transmission
VAD Transmission
OTS-2VT4DTR
OTS-2VR4DRT
Features
• Composite Video and Serial Data over one fiber
• 12-Bit Digital Transmission (Video)
Optiva® Upgrade Path
• TDM - Single fiber, dual wavelength
• Complies with SMPTE 259 for uncompressed SDI
This system can be purchased without
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
an optical port as an add-on to an existing
Optiva system daisy-chain.
®
(See “Non-Optical Version” below).
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
®
The Optiva bandwidth requirement of this
system is 738 Mbps.
• Ideal Professional AV applications
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit/Receive**
Receive/Transmit**
(dB)
(km) Form Factor
1310/1550 Multimode
OTS-2VT4DTR-A2/A3M-XX-IC
OTS-2VR4DRT-A3M/A2-XX-IC
OTS-2VR4DRT-A3/A2-XX-IC
OTS-2VR4DRT-A3D/A2-XX-IC
OTS-2VR4DRT-A3H/A2-XX-IC
OTS-2VR4DRT-L4/L4-XX-IC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
10
12
3
20
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
1310/1550 Singlemode OTS-2VT4DTR-A2/A3-XX-IC
1310/1550 SM (D)
1310/1550 SM (H)
1270-1610 SM (CWDM)
OTS-2VT4DTR-A2/A3D-XX-IC
OTS-2VT4DTR-A2/A3H-XX-IC
OTS-2VT4DTR-L4/L4-XX-IC
17
40
25
60
Varies
20-70
Non-Optical Version
OTS-2VT4DTR-NOC-IC
OTS-2VR4DRT-NOC-IC
N/A
N/A
N/A
IC (1-slot)
Serial Data Codes - "D" indicates RS-232. For other Serial Data preferences, please use: "DJ" = RS-422; "DK" = RS-485 (2W); and "DW" = RS-485 (4W).
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
