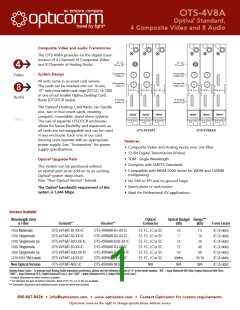

OTS-4V8A
®
Optiva Standard,
4 Composite Video and 8 Audio
Composite Video and Audio Transmission
The OTS-4V8A provides for the digital trans-
mission of 4 Channels of Composite Video
and 8 Channels of Analog Audio.
ST, LC,
SC or FC
ST, LC,
SC or FC
Composite
Video In
Composite
Video Out
System Design
Video
Audio
Data
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva Desktop Card
Racks (OT-DTCR Series).
Composite
Video In
Composite
Video Out
A
L
E
R
T
A
L
E
R
T
S
S
T
A
T
U
S
T
A
T
U
S
8 Analog
Audio In
8 Analog
Audio Out
®
The Optiva Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
™
™
Optiva
Optiva
VAD Transmission
VAD Transmission
OTS-4VT8AT
OTS-4VR8AR
Features
• Composite Video and Analog Audio over one fiber
• 12-Bit Digital Transmission (Video)
• TDM - Single Wavelength
Optiva® Upgrade Path
• Complies with SMPTE Standards
This system can be purchased without
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
an optical port as an add-on to an existing
Optiva system daisy-chain.
®
(See “Non-Optical Version” below).
• No EMI or RFI and no ground loops
• Stand-alone or rack-mount
®
The Optiva bandwidth requirement of this
system is 1,444 Mbps.
• Ideal for Professional AV applications
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit**
Receive**
(dB)
(km)
Form Factor
1310 Multimode
OTS-4VT8AT-B1-XX-IC
OTS-4VT8AT-B2-XX-IC
OTS-4VT8AT-B2D-XX-IC
OTS-4VT8AT-B3-XX-IC
OTS-4VT8AT-B3D-XX-IC
OTS-4VT8AT-L4-XX-IC
OTS-4VR8AR-B1-XX-IC
OTS-4VR8AR-B2-XX-IC
OTS-4VR8AR-B2D-XX-IC
OTS-4VR8AR-B3-XX-IC
OTS-4VR8AR-B3D-XX-IC
OTS-4VR8AR-L4-XX-IC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
10
7
1.5
10
IC (3-slots)
IC (3-slots)
IC (3-slots)
IC (3-slots)
IC (3-slots)
IC (3-slots)
1310 Singlemode
1310 Singlemode (D)
1550 Singlemode
1550 Singlemode (D)
1270-1610 SM (CWDM)
12
20
17
40
25
60
Varies
20-70
Non-Optical Version
OTS-4VT8AT-NOC-IC
OTS-4VR8AR-NOC-IC
N/A
N/A
N/A
IC (3-slots)
Analog Audio Codes - To indicate your Analog Audio impedance preference, please use the following instead of "A" in the model number: "AB" = Input Balanced 600 Ohm, Output Balanced 600 Ohm;
"ABH" = Input Balanced Hi-Z, Output Balanced Low-Z; and "AUH" = Input Unbalanced Hi-Z, Output Unbalanced Low-Z.
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
