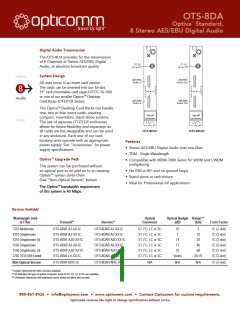

OTS-8DA
™
Optiva Standard,
8 Stereo AES/EBU Digital Audio
Digital Audio Transmission
The OTS-8DA provides for the transmission
of 8 Channels of Stereo AES/EBU Digital
Audio, at absolute broadcast quality.
ST, LC,
SC or FC
ST, LC,
SC or FC
System Design
Video
Audio
Data
AES/EBU
Audio In
AES/EBU
Audio Out
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva™ Desktop
Card Racks (OT-DTCR Series).
A
L
E
R
T
A
L
E
R
T
S
S
T
A
T
U
S
T
A
T
U
S
AES/EBU
Audio In
AES/EBU
Audio Out
The Optiva™ Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
™
™
Optiav
Optiav
VAD Transmission
VAD Transmission
OTS-8DAT
OTS-8DAR
Features
• Stereo AES/EBU Digital Audio over one fiber
• TDM - Single Wavelength
Optiva™ Upgrade Path
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
This system can be purchased without
an optical port as an add-on to an existing
Optiva™ system daisy-chain.
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
(See “Non-Optical Version” below).
• Ideal for Professional AV applications
The Optiva™ bandwidth requirement
of this system is 40 Mbps.
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit**
Receive**
(dB)
(km)
Form Factor
1310 Multimode
OTS-8DAT-A1-XX-IC
OTS-8DAT-A2-XX-IC
OTS-8DAT-A2D-XX-IC
OTS-8DAT-A3-XX-IC
OTS-8DAT-A3D-XX-IC
OTS-8DAT-L4-XX-IC
OTS-8DAR-A1-XX-IC
OTS-8DAR-A2-XX-IC
OTS-8DAR-A2D-XX-IC
OTS-8DAR-A3-XX-IC
OTS-8DAR-A3D-XX-IC
OTS-8DAR-L4-XX-IC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
10
7
3
10
IC (2-slot)
IC (2-slot)
IC (2-slot)
IC (2-slot)
IC (2-slot)
IC (2-slot)
1310 Singlemode
1310 Singlemode (D)
1550 Singlemode
1550 Singlemode (D)
1270-1610 SM (CWDM)
14
20
17
40
25
60
Varies
20-70
Non-Optical Version
OTS-8DAT-NOC-IC
OTS-8DAR-NOC-IC
N/A
N/A
N/A
IC (2-slot)
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
