Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Description

Applications

The OV8610 (color) and OV8110 (black and white) CMOS

Image sensors are single-chip video/imaging camera devices

designed to provide a high level of functionality in a single,

small-footprint package. The devices incorporate an 800 x

600 image array capable of operating at up to 60 frames per

second. Proprietary sensor technology utilizes advanced

algorithms to cancel Fixed Pattern Noise (FPN), eliminate

smearing, and drastically reduce blooming. All required

camera functions including exposure control, gamma, gain,

white balance, color matrix, color saturation, hue control,

windowing, and more, are programmable through the serial

SCCB interface. The device can be programmed to provide

image output in different 8-bit or 16-bit digital formats.

. Cell Phone

. Digital Still Camera

. PC Multimedia

. PDAs

. Machine Vision

Key Specifications

Active Array Element

(SVGA)

800x600

(400x300)

(QSVGA)

Pixel Size

Image Area

6.2µm x 6.2µm

4.96mm x 3.72mm

Up to 120 FPS for QSVGA

Up to 648:1 (for selected FPS)

Progressive or Interlace

0.45/0.55/1.0

Max Frames/Sec

Electronics Exposure

Scan Mode

Features

ꢀ480,000 pixels, 1/3” lens, SVGA/QSVGA format

ꢀData output formats include ITU-601 and ITU-656

Gamma Correction

Min. Illumination

(3000K)

OV8610 < 3 lux @ f1.2

OV8110 < 0.8 lux @ f1.2

ꢀChoice of progressive scan/interlaced read

ꢀWide dynamic range, anti-blooming, zero smearing

ꢀElectronic exposure/gain/white balance control

ꢀImage Controls - brightness, contrast, gamma, saturation,

sharpness, windowing, hue, etc.

ꢀInternal & external synchronization

ꢀLine exposure option

ꢀ3.3-Volt operation, low power dissipation

- < 30 mA active power at 30FPS with 10 mA load

- < 10 µA in power-down mode

> 48 dB

(AGC off, Gamma=1)

S/N Ratio

< 0.03% V_PP

< .2 nA/cm²

> 72 dB

FPN

Dark Current

Dynamic Range

Power Supply

3.0−3.6VDC

< 30mA Active (w/10mA load)

< 10µA Standby

Power Requirements

48 pin LCC

Package

ꢀBuilt in Gamma correction (0.45/0.55/1.00)

ꢀSCCB programmable:

- Color saturation, brightness, hue, white balance,

exposure time, gain, etc.

AGND

AVDD

PWDN

HVDD

7

42 CHSYNC/BW

41 Y0/CBAR

40 Y1/PROG

39 Y2/G2X

Ordering Information

8

9

10

Product

OV8610

Package

Description

VcCHG 11

SCCBB 12

38 Y3/RGB

37 Y4/CS1

OV8600/8100

48 LCC

0.560 in²

COLOR, SVGA,

QSVGA, QCIF

Digital, SCCB

interface

13

14

36 Y5/SHARP

35 Y6/CS2

VTO

ADVDD

ADGND 15

VSYNC/CSYS 16

FODD/SRAM 17

34 Y7/CS0

33 PCLK/PWDB

32 DOVDD

HREF/VSFRAM

18

31 DOGND

OV8110

48 LCC

0.560 in²

SVGA, QSVGA,

QCIF, Digital,

SCCB interface

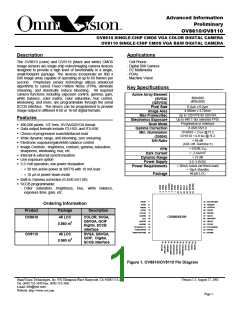

Figure 1. OV8610/OV8110 Pin Diagram

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 1

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Pin Description

Table 1. Pin Description

Pin No.

01

Name

SVDD

Pin Type

V_IN

Function/Description

Array power (+3.3VDC). Bypass to ground with a 0.1µF capacitor.

02

RESET

Function

Chip reset, active high. Resets all control registers to factory defaults.

(Default=0)

03

AGCEN

Function

Automatic Gain Control (AGC) selection

(Default=0)

“0” – Disable AGC

“1” – Enable AGC

Note: This function is disabled when OV8610/OV8110 sensor is configured in

SCCB low mode. In SCCB low mode this pin is an SCCB chip select function.

Frame exposure control

04

FREX

Function

(Default=0)

“0” – Disables frame exposure control

“1” – Enables frame exposure control

05

06

07

08

09

VREQ

ASUB

AGND

AVDD

PWDN

V_REF(1.5V)

V_IN

Function

(Default=0)

Array reference. Connect to ground with a 0.1µF (min.) capacitor.

Analog substrate voltage

Analog ground

Analog power supply (+3.3VDC). Bypass to ground with a 0.1µF capacitor.

Power-down mode selection.

“0” – Operating mode

“1” – Power-down mode

10

11

12

HVDD

V_CCHG

SCCBB

V_REF(5.0V)

V_REF(2.7V)

Function

Charge pump out voltage. Doubler must be enabled.

Internal voltage reference. Bypass to ground with a 0.1µF capacitor.

SCCB enable selection.

(Default=0)

“0” – Selects internal register setting control and enables SCCB interface

“1” – Enables I/O input pin power on latch setting control

B&W CCIR analog composite signal output—for test purposes only

Analog power supply (+3.3VDC). Bypass to ground with a 0.1µF capacitor.

Analog signal ground

Vertical sync output. At power-up, read as CSYS.

Field ID FODD output. At power-up, read as SRAM.

HREF output. At power-up, read as VSFRAM

Bit 7 of U video component output. At power-up, sampled as B8.

Bit 6 of U video component output. At power-up, sampled as TVEN.

Bit 5 of U video component output. At power-up, sampled as MIR.

Bit 4 of U video component output. At power-up, sampled as SLAEN.

Bit 3 of U video component output. At power-up, samples as ECLKO.

Bit 2 of U video component output. At power-up, sampled as QSVGA.

Bit 1 of U video component output. At power-up, sampled as CC656.

Bit 0 of U video component output. At power-up, sampled as GAMMA.

Crystal clock input

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

VTO

ADVDD

ADGND

VSYNC/CSYS

FODD/SRAM

HREF/VSFRAM

^*UV7/B8

O

V_IN

O

^*UV6/TVEN

^*UV5/MIR

^*UV4/SLAEN

^*UV3/ECLK0

^*UV2/QSVGA

^*UV1/CC656

^*UV0/GAMMA

XCLK1

XCLK2

DVDD

DGND

DOGND

I

O

Crystal clock output

Digital power supply (+3.3VDC). Bypass to ground with a 0.1µF capacitor.

Digital ground

V_IN

O

Digital interface output buffer ground

DOVDD

PCLK/PWDB

Y7

Digital output buffer supply (+3.3VDC ). Bypass to ground with a 0.1µF capacitor.

PCLK output. At power-up sampled as charge pump enable.

Bit 7 of Y video component output

Bit 6 of Y video component output

Bit 5 of Y video component output. At power-up, sampled as SHARP.

Bit 4 of Y video component output

Y6

Y5/SHARP

Y4

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Website: http://www.ovt.com

Page 2

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Pin No.

38

Name

Y3/RGB

Y2/G2X

Y1/PROG

Y0/CBAR

CHSYNC/BW

DEGND

DEVDD

Pin Type

Function/Description

Bit 3 of Y video component output. At power-up, sampled as RGB.

Bit 2 of Y video component output. At power-up, sampled as G2X.

Bit 1 of Y video component output. At power-up, samples as PROG

Bit 0 of Y video component output. At power-up, sampled as CBAR.

CHSYNC output. At power-up, sampled as BW.

O

39

40

41

42

43

44

45

O

V_IN

I

Decoder ground

Decoder power supply (+3.3VDC). Bypass to ground with a 0.1µF capacitor.

SCCB serial interface clock input

SIO-1

46

SIO-0

I/O

SCCB serial interface data input and output

47

Reserved

Function

(Default=0)

V_IN

48

SGND

Array ground

* Note: Output is not available on the OV8110 sensor and one-port mode for OV8610.

All I/O latch input pins are effective only when SCCB pin is high, otherwise all pin functions are regulated by the register

settings.

Legend: (I=Input), (O=Output), (I/O=Bi-directional), (P=Power), (A=Analog)

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 3

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Electrical and Mechanical Characteristics

Table 2. General Characteristics

Descriptions

Min

Max

Units

Operating temperature

Storage temperature

Operating humidity

Storage humidity

0

-40

TBD

40

°C

125

TBD

Table 3. DC Characteristics (0°C ≤ TA ≤ 85°C, Voltages referenced to GND)

Symbol

Supply

V_DD1

Descriptions

Max

Typ

Min

Units

Supply voltage

3.6

35

3.3

30

3.0

V

(DEVDD, ADVDD, AVDD, DVDD, DOVDD)

I_DD1

Supply current

mA

(@ 30 fps and 3.3V digital I/O with 25pF plus ITTL loading on

16-bit data bus)

I_DD3

Digital Inputs

V_IL

V_IH

C_IN

Standby supply current

10

0.8

10

8

µA

Input voltage LOW

Input voltage HIGH

Input capacitance

V

PF

2

Digital Outputs (standard loading 25pF, 1.2KΩ to 3V)

V_OH

V_OL

Output voltage HIGH

Output voltage LOW

2.4

V

0.6

SCCB Input

V_IL

V_IH

V_IL

V_IH

SIO-0 and SIO-1 (V_DD2=5V)

SIO-0 and SIO-1 (V_DD2=3V)

1.5

V_DD+0.5

1

-0.5

3.0

-0.5

2.5

V

3.3

0

3

V_DD+0.5

Table 4. AC Characteristics (T_A=25°C, V_DD=3V)

Symbol

Descriptions

Max

Typ

Min

Units

RGB/YCrCb Output

I_SO

V_Y

Maximum sourcing current

DC level at zero signal

Y_PP100% amplitude (without sync)

Sync amplitude

15

1.2

1

mA

V

0.4

ADC Parameters

B

Analog bandwidth

TBD

MHz

Φ_DIFF

DLE

ILE

DC differential linearity error

DC integral linearity error

0.5

1

LSB

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 4

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Table 5. Timing Characteristics

Symbol

Oscillator and Clock Input

Descriptions

Max

Typ

Min

Units

f_OSC

t_r, t_f

Frequency (XCLK1)

Clock input rise/fall time

Clock input duty cycle

40

5

55

20

50

10

45

MHz

ns

%

SCCB Timing (400Kbit/s)

t_BUF

t_HD:SAT

t_LOW

Bus free time between STOP and START

SIO-D change after START status

SIO-D low period

SIO-D high period

Data hold time

1.3

0.6

1.3

0.6

0

ms

µs

t_HIGH

t_HD:DAT

t_SU:DAT

t_SU:STP

Data setup time

Setup time for STOP status

0.1

0.6

Digital Timing

t_PCLK

t_r, t_f

t_PDD

t_PHD

PCLK period (16-bit operation)

PCLK period (8-bit operation)

PCLK rise/fall time

PCLK to data valid

PCLK to HREF delay

50

ns

5

20

10

5

Zoom Video Port AC Parameters

t1

t2

t3

t4

t5

t6

t7

t8

PCLK fall time

PCLK low time

PCLK rise time

PCLK high time

8

4

21

4

21

50

5

ns

µs

PCLK period

Y/UV/HREF setup time

Y/UV/HREF hold time

VSYNC setup/hold time to HREF

20

1

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 5

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Figure 2. OV8610/8110 Light Response

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 6

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Function Description

Overview

Referring to Figure 3 below, the OV8610/OV8110 sensor in-

cludes a 824 x 615 pixel image array, an analog signal

processor, dual 10-bit A/D converters, analog video multiplexer,

digital data formatter, video port, SCCB interface and control

registers to control the timing block, exposure time, black level,

white balance and a number of other parameters.

The OV8610/OV8110 sensor is a 1/3” CMOS imaging device.

The sensor contains a total of 506,760 pixels (824x615). Its

design is based on a field integration readout system with line-

by-line transfer and an electronic rolling shutter with a

synchronous pixel readout scheme. The color filter of the

sensor consists of primary red, green, and blue filters arranged

in the line-alternating Bayer pattern, RGRG/GBGB.

VTO

R

G

B

Y[7:0]

MUX

A/D

Analog

Processing

UV[7:0]

Y

Cb

Cr

MUX

A/D

Column Sense Amp

Exposure/Gain

Detect

WB

Detect

(824x615)

Image Array

Registers

Video Timing

Generator

1/2

Exposure/GAIN

Control

WB

Control

SCCB

Interface

Figure 3. OV8610/OV8110 CMOS Image Sensor Block Diagram

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Website: http://www.ovt.com

Page 7

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Analog Processing Circuits

Additional on-chip functions include:

Overview

•

AGC that provides a gain boost of up to 24dB

White balance control that enables setting of proper color

temperature and can be programmed for automatic or

manual operation.

The image is captured by the 824 x 615 pixel image array and

routed to the analog processing section where the majority of

signal processing occurs. This block contains the circuitry that

performs color separation, color correction, automatic gain

control (AGC), gamma correction, color balance, black level

calibration, “knee” smoothing, aperture correction, controls for

picture luminance and chrominance, and hue control for color.

The analog video signals are based on the following formula:

•

Separate saturation, brightness, hue, and sharpness

adjustments allow for further fine-tuning of the picture

quality and characteristics.

The OV8610/OV8110 image sensor also provides control over

the White Balance ratio for increasing/decreasing the image

field Red/Blue component ratio. The sensor provides a default

setting that may be sufficient for many applications.

Y = 0.59G + 0.31R + 0.11B

U = R – Y

V = B – Y

Where R,G,B are the equivalent color components in each

pixel.

Windowing

The windowing feature of the OV8610/OV8110 image sensors

allows user-definable window sizing as required by the

application. Window size setting (in pixels) ranges from 2 x 2 to

800 x 600, and can be positioned anywhere inside the 824 x

615 boundary. Note that modifying window size and/or position

does not change frame or data rate. The OV8610 imager alters

the assertion of the HREF signal to be consistent with the

programmed horizontal and vertical region. The default output

window is 800 x 600.

YCrCb format is also supported, based on the formula below:

Y = 0.59G + 0.31R + 0.11B

Cr = 0.713 (R – Y)

Cb = 0.564 (B – Y)

The YcrCb or RGB data signal from the analog processing

section is fed to two on-chip 10-bit analog-to-digital (A/D)

converters: one for the Y/G channel and one shared by the

CrCb/BR channels. The converted data stream is further

conditioned in the digital formatter. The processed signal is

delivered to the digital video port through the video multiplexer

which routes the user-selected 8-, or 10-bit video data to the

correct output pins.

column start

column end

HREF

column

The on-chip 10-bit A/D operates at up to 20 MHz, and is fully

synchronous to the pixel rate. Actual conversion rate is related

to the frame rate. A/D black-level calibration circuitry ensures:

Display

Window

•

The black level of Y/RGB is normalized to a value of 16

The peak white level is limited to 240

CrCb black level is 128

CrCb Peak/bottom is 240/16

RGB raw data output range is 16/240

(Note: Values 0 and 255 are reserved for sync flag)

Sensor Array

Bondary

Figure 4. Windowing

Image Processing

The algorithm used for the electronic exposure control is based

on the brightness of the full image. The exposure is optimized

for a “normal” scene that assumes the subject is well lit relative

to the background. In situations where the image is not well lit,

the automatic exposure control (AEC) white/black ratio may be

adjusted to suit the needs of the application.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 8

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

data bus: Y[7:0] and UV[7:0]. The rising edge of PCLK clocks

data into the ZV port. See Figure 5. Zoom Video Port Timing

below.

Zoom Video Port (ZV)

The OV8610/OV8110 image sensor includes a Zoom Video

(ZV) function that supports standard ZV port interface timing.

Signals available include VSYNC, CHSYNC, PCLK and 16-bit

Even Field 1 (FODD=0)

Odd Field 1 (FODD=1)

VSYNC

t8

HREF

t6

t7

t5

t4

PCLK

t1

t3

t2

Y[7:0]/UV[7:0]

1

2

351

352

Valid Data

Horizontal Timing

VSYNC

T_VS

1 Line

T_VE

Y[7:0]/UV[7:0]

T_LINE

Vertical Timing

Figure 5. Zoom Video Port Timing

Note:

Zoom Video Port format output signal includes:

VSYNC: Vertical sync pulse.

HREF: Horizontal valid data output window.

PCLK: Pixel clock used to clock valid data and CHSYNC into Zoom V Port. Default frequency is 20MHz when use 20MHz as

system clock plus 2X PLL implemented on chip. Rising edge of PCLK is used to clock the 16 Bit data.

Y[7:0]: 8 Bit luminance data bus.

UV[7:0]: 8 Bit chrominance data bus.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Website: http://www.ovt.com

Page 9

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

The OV8610/OV8110 imager provides VSYNC, HREF,

PCLK, FODD, and CHSYNC as standard video timing

QSVGA

signals.

A QSVGA mode is available for applications where higher

resolution image capture is not required. Only half of the pixel

rate is required when programmed in same frame rate with sub-

sampling method. If you keep the same pixel rate with skip

method, the maximum frame rate is 120. Default resolution is

400 x 300 pixels and can be programmed for other resolutions.

Refer to Table 11. QSVGA Digital Output Format (YUV

beginning of line) and Table 12. RGB Data Format for further

information.

In ITU-656 modes, the OV8610/OV8110 imager asserts SAV

(Start of Active Video) and EAV (End of Active Video) to

indicate the beginning and the ending of the HREF window. As

a result, SAV and EAV change with the active pixel window.

The OV8610/OV8110 imager offers flexibility in YUV output

format. The device may be programmed to standard YUV 4:2:2.

The device may also be configured to “swap” the UV sequence.

When swapped, the UV channel output sequence in the 16-bit

configuration becomes:

QCIF

- V U V U···.

A QCIF mode is available for further resolution decrease. Two

method used to get this mode, sub-sampling and skip. The first

one can get better quality than the second one and the second

approach can have higher frame rate. The maximum frame rate

is 240 for QCIF. The default resolution is 200 x 150.

The 8-bit configuration becomes:

- V Y U Y···.

The third format available in the 8-bit configuration is the Y/UV

sequence swap:

Y U Y V···.

Video Output

The video output port of the OV8610/OV8110 image sensors

provides a number of output format/standard options to suit

many different application requirements. Table 6, Digital Output

Format indicates the output formats available. These formats

are user-programmable through the SCCB interface.

RGB Raw Data Output

The OV8610/OV8110 imager can also be programmed to

provide 8-bit RGB raw data output. The output sequence is

matched to the OV8610 color filter pattern.

The video output appears in Y channel only and the UV

channel is disabled in 8-bit RGB raw data. The output

sequence is B G R G.

YUV Output

The OV8610/OV8110 supports ITU-656 and ITU-601 output

formats, providing VSYNC, HREF, and PCLK as standard

output video timing signals.

B/W Output

The single-chip camera can be configured for use as a black

and white image device. The vertical resolution is higher than in

color mode. Video data output is provided at the Y port and the

UV port is tri-stated. The data (Y/RGB) rate is equivalent to 16-

bit in color mode.

ITU-601/ITU-656

The OV8610/OV8110 imager supports both ITU-601 and ITU-

656 output formats in the following configurations (See Table 7.

4:2:2 16-bit Format and Figure 6. Pixel Data Bus (YUV Output)

for further details):

The MSB and LSB of Y/UV or RGB output can be reversed. Y7

is MSB and Y0 is LSB in the default setting. Y7 becomes LSB

and Y0 becomes MSB in the reverse order configuration. Y2-

Y6 is also reversed appropriately.

- 16-bit, 4:2:2 format

(This mode complies with the 60/50 Hz ITU-601 timing

standard. See Table 7. 4:2:2 16-bit Format)

- 8-bit data mode

(In this mode, video information is output in Cb Y Cr Y

order using the Y port only and running at twice the

pixel rate during which the UV port is inactive. See

Table 8. 4:2:2 8-bit Format).

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 10

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Table 6. Digital Output Format

Resolution

Pixel Clock

16-bit

8-bit

800 X 600

400 X 300

200 X 150

YUV 4:2:2

Y

ITU-656

16-bit

8-bit

RGB

ITU-656¹

16-bit

8-bit

Y/UV swap²

U/V swap

YG

Y

YUV³

RGB⁴

16-bit

8-bit

Single-Line RGB

Raw Data

MSB/LSB swap

16-bit

8-bit

Y

Note:

(“Y” indicates mode/combination is supported by OV8610/OV8110)

1. Output is 8-bit in RGB ITU-656 format. SAV and EAV are inserted at the beginning and ending of

HREF, which synchronize the acquisition of VSYNC and HSYNC. 8-bit data bus configuration (without

VSYNC and CHSYNC) can provide timing and data in this format.

2. Y/UV swap is valid in 8-bit only. Y channel output sequence is Y U Y V ···

3. U/V swap means UV channel output sequence swaps in YUV format, i.e., V U V U ··· for 16 bit and V Y

U Y ··· for 8-bit.

4. U/V swap means neighbor row B R output sequence swap in RGB format. Refer to RGB raw data

output format for further details.

Table 7. 4:2:2 16-bit Format

Data Bus

Pixel Byte Sequence

Y7

Y6

Y7

Y6

Y7

Y6

Y7

Y6

Y7

Y6

Y7

Y6

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

Y Frame

UV Frame

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

0

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

1

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

2

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

3

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

4

UV7

UV6

UV5

UV4

UV3

UV2

UV1

UV0

5

01

23

45

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Website: http://www.ovt.com

Page 11

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Table 8. 4:2:2 8-bit Format

Data Bus

Pixel Byte Sequence

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

U7

U6

U5

U4

U3

U2

U1

U0

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

V7

V6

V5

V4

V3

V2

V1

V0

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

U7

U6

U5

U4

U3

U2

U1

U0

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

V7

V6

V5

V4

V3

V2

V1

V0

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

Y Frame

UV Frame

0

1

2

3

0 1

2 3

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 12

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

T_CLK

PCLK

HREF

T_HD

T_SU

Y[7:0]

10

80

Y

U

Y

V

10

80

UV[7:0]

Repeat for all data bytes

Pixel Data 16-bit Timing

(PCLK rising edge latches data bus)

T_CLK

PCLK

T_HD

T_SU

HREF

Y[7:0]

10

80

10

U

Y

V

Y

80

10

Repeat for all data bytes

Pixel Data 8-bit Timing

(PCLK rising edge latches data bus)

Note: T_CLKis pixel clock period.. T_CLK=50ns for 16-bit output and T_CLK=25ns for 8-bit output if the system clock

is 20MHz with on chip 2X PLL . T_SUis the setup time of HREF. The maximum is 15ns. T_HDis the hold time of

HREF. The maximum is 15ns.

Figure 6. Pixel Data Bus (YUV Output)

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 13

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

T_CLK

PCLK

HREF

T_HD

T_SU

Y[7:0]

10

G

B

R

G

10

UV[7:0]

Repeat for all data bytes

Pixel Data 16-bit Timing

(PCLK rising edge latches data bus)

T_CLK

PCLK

T_HD

T_SU

HREF

Y[7:0]

10

B

G

R

G

10

Repeat for all data bytes

Pixel Data 8-bit Timing

(PCLK rising edge latches data bus)

Note: T_CLKis pixel clock period.. T_CLK=50ns for 16-bit output and T_CLK=25ns for 8-bit output if the system clock

is 20MHz with on chip 2X PLL. T_SUis the setup time of HREF. The maximum is 15ns. T_HDis the hold time of

HREF. The maximum is 15ns.

Figure 7. Pixel Data Bus (RGB Output)

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 14

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

The default U/UV channel output port relation before an MSB/LSB swap:

Table 9. Default Output Sequence

MSB

LSB

Y0

Output port

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Internal output data

The relation after an MSB/LSB swap changes to:

Table 10. Swapped MSB/LSB Output Sequence

MSB

LSB

Output port

Internal output data

Y7

Y0

Y6

Y1

Y5

Y2

Y4

Y3

Y4

Y2

Y5

Y1

Y6

Y0

Y7

Table 11. QSVGA Digital Output Format (YUV beginning of line)

Pixel #

1

2

3

4

5

6

7

8

Y

UV

Y0

U0, V0

Y1

U1, V1

Y2

U2, V2

Y3

U3, V3

Y4

U4, V4

Y5

U5, V5

Y6

U6, V6

Y7

U7, V7

- Y channel output U2Y2V3 Y3U6 Y6V7 Y7 U10Y10 V11Y11 ···

- Every other (total 400) pixels and every other line (total 300 lines) is output in each frame.

Table 12. RGB Data Format

The pixel pattern is as following:

R\C

1

2

3

4

821

822

823

824

···

1

2

3

4

B_1,1

G_2,1

B_3,1

G_4,1

G_1,2

R_2,2

G_3,2

R_4,2

B_1,3

G_2,3

B_3,3

G_4,3

G_1,4

R_2,4

G_3,4

R_4,4

B_1,821

G_2,821

B_3,821

G_4,821

G_1,821

R_2,821

G_3,642

R_4,642

B_1,823

G_2,823

B_3,823

G_4,823

G_1,824

R_{2, 824}

G_3,824

R_4,824

613

614

B_613,1

G_614,1

G_613,2

R_614,2

B_613,3

G_614,3

G_613,4

R_614,4

B_613,821

G_614,821

G_613,822

R_614,822

B_613,823

G_614,823

G_613,824

R_614,824

•

RGB full resolution progressive scan mode. (Total 614

HREFs)

- Every line of data is output once for each frame.

- Max frame rate is 60FPS

- 1st HREF Y channel output unstable data

- 2nd HREF Y channel output B₁₁G₂₁R₂₂G₁₂B₁₃G₂₃R₂₄G₁₄···

- 3rd HREF Y channel output B₃₁G₂₁R₂₂G₃₂B₃₃G₂₃R₂₄

G₃₄···

•

RGB full resolution raw data one line format. (Total 600

HREFs)

- 1st HREF Y channel output B₁₁G₁₂B₁₃G₁₄···

- 2nd HREF Y channel output G₂₁R₂₂G₂₃R₂₄···

- 3rd HREF Y channel output B₃₁G₃₂B₃₃G₃₄···

- PCLK rising edge latch data bus.

- Every line of data is output twice for each frame.

- PCLK is double

RGB QSVGA resolution progressive scan mode. (Total 300

HREFs)

- 1st HREF Y channel output B₁₁G₂₁R₂₂G₁₂B₁₅G₂₅R₂₆

RGB QSVGA resolution raw data one line format. (Total

246 HREFs)

•

- 1st HREF Y channel output B₁₁G₁₂B₁₅G₁₆···

- 2nd HREF Y channel output G₂₁R₂₂G₂₅R₂₆···

- 3rd HREF Y channel output B₅₁G₅₂B₅₅G₅₆···

- 3rd HREF Y channel output G₆₁R₆₂G₆₅R₆₆···

- PCLK rising edge latch data bus.

G₁₆···

- 2nd HREF Y channel output B₃₁G₄₁R₄₂G₃₂B₃₅G₄₅R₄₆

G₃₆···

- 3rd HREF Y channel output B₅₁G₆₁R₆₂G₅₂B₅₅G₆₅R₆₆

G₅₆···

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 15

Website: http://www.ovt.com

Advanced Information

Preliminary

OV8610/OV8110

OV8610 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

OV8110 SINGLE-CHIP CMOS VGA B&W DIGITAL CAMERA

Power Down Mode

Frame Exposure Mode

Two methods are available to place OV8610 into power-down

OV8610/OV8110 supports frame exposure mode when FREX

is set high. PWDN is asserted by an external master device to

set exposure time at this mode. The pixel array is quickly pre-

charged when PWDN is set to “1”. OV8610/OV8110 captures

the image in the time period when PWDN remains high. The

video data stream is delivered to output port in a line-by-line

manner after PWDN switches to “0”.

mode: hardware power-down and SCCB software power-down.

To initiate hardware power-down, the PWDN pin (9) must be

tied to high (+3.3VDC). When this occurs, the OV8610 internal

device clock is halted and all internal counters are reset. The

current draw is less than 10µA in this standby mode.

Executing a software power-down through the SCCB interface

suspends internal circuit activity, but does not halt the device

clock. The current requirements drop to less than 1mA in this

mode.

It should be noted that PWDN must remain high long enough to

ensure the entire image array has been pre-charged.

Reset

Configure OV8610/OV8110

OV8610/8110 includes a RESET pin (pin 2) that forces a

complete hardware reset when it is pulled high (VCC).

OV8610/8110 clears all registers and resets to their default

values when a hardware reset occurs. Reset can also be

initiated through the SCCB interface.

The method to configure OV8610/OV8110 is to use its on-chip

SCCB register programming capability. The SCCB interface

provides access to all of the device’s programmable internal

registers.

Mechanical Shutter Off

FREX

T_SET

T_IN

T_HS

HSYNC

Precharge begins at the rising edge of HSYNC

Array Exposure Period T_EX

ARRAY

T_PR

PRECHARGE

Array Precharge Period T_PR

Invalid Data

1 Frame (612 Lines) Valid Data

DATA

OUTPUT

Black Data

T_HD

Head of Valid Data (8 Lines)

Next Frame

VSYNC

HREF

Note:

ꢁ T_PR=824 x 4 x T_CLKor T_PR=858xT_clkdepends on mode selecton. T_CLKis internal pixel period. T_CLK=50ns

if the system clock is 20MHz . T_CLKwill increase with the clock divider CLK[5:0].

ꢁ T_EXis array exposure time which is decided by external master device.

ꢁ T_INis uncertain time due to the using of HSYNC rising edge to synchronize FREX. T_IN< T_HS

.

ꢁ There are 8 lines data output before valid data after FREX=0. T_HD=4 THS. Valid data is output when

HREF=1.

ꢁ T_SET=T_IN+ T_PR+ T_EX. T_SET> T_PR+ T_IN. The exposure time setting resolution is T_HS(one line) due to the

uncertainty of T_IN.

Figure 8. Frame Exposure Timing

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 16

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Register Set

The table below provides a list and description of available SCCB registers contained in the OV8610/8110 image sensor.

Table 13. SCCB Registers

Sub-

address

(hex)

Default Read/

Register

(hex)

Write

Descriptions

00

01

GAIN

00

RW

AGC gain control

GC[7:6] – Unimplemented.

GC[5:0] – The current gain setting.

This register is updated automatically if AGC is enabled. The internal controller

stores the optimal gain value in this register. The current value is stored in this

register if AGC is not enabled.

BLUE

80

RW

Blue gain control

BLU[7:0] – blue channel gain balance value. “FFh” is highest and “00h” is

lowest

Note: This function is not available on the OV8110 image sensor.

02

03

RED

SAT

80

RW

Red gain control

RED[7:0] – red channel balance value. “FFh” is highest and “00h” is lowest

Note: This function is not available on the OV8110 image sensor.

Color saturation control

SAT[7:4] – Saturation adjustment. “F8h” is highest and “00h” is lowest.

SAT[3:0] – Unimplemented.

Note: This function is not available on the OV8110 image sensor.

04

HUE

10

RW

Color hue control

HUE[7:6] – Unimplemented.

HUE[5] – Enable HUE control

HUE[4:0] – HUE control, range -30°~30°

Reserved

Brightness control

05

06

Rvsd

BRT

-

××

80

RW

BRT[7:0] – Brightness adjustment. “FFh” is highest and “00h” is lowest.

Reserved

Product ID number read only

Product version number, read only

White balance background: Blue channel

ABLU[7:6] – Rsvd

07-09

0A

0B

Rsvd 07-09

PID

VER

ABLU

–

R

××

86

B0

20

0C

RW

ABLU[5:0] - White balance blue ratio adjustment, “3Fh” is most blue.

Note: This function is not available on the OV8110 image sensor.

White balance background: Red channel

ARED[7:6] – Rsvd

0D

ARED

20

RW

ARED[4:0] - White balance red ratio adjustment, “3Fh” is most red.

Note: This function is not available on the OV8110 image sensor.

Reserved

0E-0F

10

Rsvd 0E-0F

AEC

xx

A2

-

RW

Automatic exposure control

AEC[7:0] - Set exposure time

T_EX= 4 × T_LINE× AEC[7:0]

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 17

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

CLKRC

(hex)

Write

Descriptions

11

00

RW

Clock rate control

CLKRC[7:6] – Sync output polarity selection

“00” – HSYNC=Neg, CHSYNC=Neg, VSYNC=Pos

“01” – HSYNC=Neg, CHSYNC=Neg, VSYNC=Neg

“10” – HSYNC=Pos, CHSYNC=Neg, VSYNC=Pos

“11” – HSYNC=Pos, CHSYNC=Pos, VSYNC=Pos

CLKRC[5:0] – Clock pre-scalar

CLK = (MAIN_CLOCK / ((CLKRC[5:0] + 1) × 2)) / n

Where n=1 if register [15], COMD[5] is set to “1” and n=2 otherwise.

Common control A

12

COMA

24

RW

COMA[7] – SRST, “1” initiates soft reset. All registers are set to default values

and chip is reset to known state and resumes normal operation.

COMA[6] – MIRR, “1” selects mirror image

COMA[5] – AGCEN, “1” enables AGC,

COMA[4] – Digital output format, “0” selects 8-bit: U Y V Y U Y V Y “1” selects

8-bit: Y U Y V Y U Y V

COMA[3] – Select video data output: “1” - select RGB, “0” - select YCrCb

COMA[2] – Auto white balance “1” - Enable AWB, “0” - Disable AWB

COMA[1] – Color bar test pattern: “1” - Enable color bar test pattern

COMA[0] – ADC BLC method : “1” – precise, “0” more stable but less precise

Common control B

13

COMB

01

RW

COMB[7] – VSYNC output selection, “1” – no VSYNC when no valid data, “0” –

VSYCN always output.

COMB[6] – AGC/AWB register SCCB update option. “1” – updated immediately

after SCCB input, “0” – updated after VSYNC

COMB[5] - Select data format. “1” - select 8-bit format, Y/CrCb and RGB is

multiplexed to 8-bit Y bus, UV bus is tri-stated, “0” - select 16-bit format

COMB[4] – “1” - enable digital output in ITU-656 format

COMB[3] – CHSYNC output. “0” - horizontal sync, “1” - composite sync

COMB[2] – “1” – Tri-state Y and UV bus. “0” - enable both bus

COMB[1] – “1” - Initiate single frame transfer.

COMB[0] – “1” - Enable auto adjust mode.

Note: COMB[5] is not programmable on the OV8110 image sensor.

14

COMC

00

RW

Common control C

COMC[7] – AWB threshold selection. “1” - More stable and less accurate, “0” –

more accurate but less stable.

COMC[6] – UV option. “1” – UV always zero. “0” – normal color mode

COMC[5] – QSVGA digital output format selection. “1” - 400x300; “0” - 800x

600.

COMC[4] – Field/Frame vertical sync output in VSYNC port selection: “1” -

frame sync, only ODD field vertical sync; “0” - field vertical sync, effect in

Interlaced mode

COMC[3] – HREF polarity selection: “0” - HREF positive effective, “1” - HREF

negative.

COMC[2] – gamma selection: “1” - RGB Gamma on ; “0” - RGB gamma is 1.

COMC[1:0] – reserved

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 18

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

COMD

(hex)

Write

Descriptions

15

01

RW

Common Control D

COMD[7] – ADC clock 50% duty cycle selection. “1” – 50% duty cycle, “0” –

non 50%.

COMD[6] – PCLK polarity selection. “0” - OV8610/OV8110 output data at PCLK

falling edge and data bus will be stable at PCLK rising edge; “1” - rising edge

output data and stable at PCLK falling edge.

COMD[5] – Digital 2x PLL disable. “1” – disable. “0” – enable.

COMD[4] – Array vertical 2^ndstage skip mode enable. Frame rate will double

and only effective at progressive scan and 1^ststage sub-sampling disable.

COMD[3] – AGCEN pin option. “1” – AGCEN as data output enable/disable pin

control, “0” – normal AGCEN pin.

COMD[2] – Reserved

COMD[1] – Enable NTSC timing. Only part of full resolution output.

COMD[0] – U V digital output sequence exchange control. 1 - UV UV ··· for 16-

bit, U Y V Y ··· for 8-bit; 0 - V U V U ··· for 16-bit and V Y U Y ··· for 8-bit.

Note: COMD[0] is not programmable on the OV8110 image sensor.

Field slot division

16

FSD

03

RW

FSD[7:2] – Field interval selection. It has functional in EVEN and ODD mode

defined by FSD[1:0]. It is disabled in OFF and FRAME mode. The purpose of

FSD[7:2] is to divide the video signal into programmed number of time slots,

and allows HREF to be active only one field in every FSD[7:2] fields. It does

not affect the video data or pixel rate. FSD[7:2]=1 outputs one field every

field. FSD[7:2]=2 outputs one field every two fields. All other fields output

black reference.

FSD[1:0] – field mode selection. Each frame consists of two fields: Odd and

Even, FSD[1:0] define the assertion of HREF in relation to the two fields.

“00” – OFF mode; HREF is not asserted in both fields, one exception is the

single frame transfer operation (see the description for the register 13)

“01” – Interlace mode: ODD mode; HREF is asserted in odd field only.

Progressive mode: HREF is asserted in frame according FD[7:2]

“10” – Interlace mode: EVEN mode; HREF is asserted in even field only.

Progressive mode: HREF is asserted in frame according FD[7:2].

“11” – FRAME mode; HREF is asserted in both odd field and even field.

FSD[7:2] disabled.

17

18

19

HREFST

HREFEND

VSTRT

38

EA

03

RW

Horizontal HREF start

HS[7:0] – selects the starting point of HREF window, each LSB represents four

pixels for SVGA resolution mode, two pixels for QVGA resolution mode, one

pixel for QCIF mode. This value is set based on an internal column counter.

The default value corresponds to 800 horizontal windows. Maximum window

size is 824. HS[7:0] should be less than HE[7:0].

Horizontal HREF end

HE[7:0] – selects the ending point of HREF window, each LSB represents four

pixels for full resolution and two pixels for QSVGA resolution, one pixel for

QCIF mode. This value is set based on an internal column counter, the

default value corresponds to the last available pixel. HE[7:0] should be larger

than HS[7:0]. See window description below.

Vertical line start

VS[7:0] – selects the starting row of vertical window, in full resolution mode,

each LSB represents 2 scan line in one field for Interlaced Scan Mode, 4

scan line in one frame for Progressive Scan Mode. In QSVGA mode, each

LSB represents 1 scan line in one field for Interlaced Mode, 2 scan line in one

frame for Progressive Scan Mode. See window description below. Min. is

[02], max. is [98] and should less than VE[7:0].

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 19

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

(hex)

Write

Descriptions

1A

VEND

92

RW

Vertical line end

VE[7:0] – selects the ending row of vertical window, in full resolution mode,

each LSB represents 2 scan line in one field for Interlaced Scan Mode, 4

scan line in one frame for Progressive Scan Mode. In QSVGA mode, each

LSB represents 1 scan line in one field for interlaced Mode, 2 scan line in one

frame for Progressive Scan Mode. See window description below. Min. is

[03], max. is [98] and should larger than VS[7:0].

1B

PSHFT

00

RW

Pixel shift

PS[7:0] – to provide a way to fine tune the output timing of the pixel data

relative to that of HREF, it physically shifts the video data output time late in

unit of pixel clock. This function is different from changing the size of the

window as defined by HS[7:0] and HE[7:0] in registers 17 and 18. It just

delays the output pixels relative tp HREF and does not change the window

size. The highest number is “FF” and the maximum shift number is delay 256

pixels.

1C

1D

MIDH

MIDL

7F

A2

R

Manufacture ID byte: High

MIDH[7:0] – read only, always returns “7F” as manufacturer’s ID no.

Manufacture ID byte: Low

MIDL[7:0] – read only, always returns “A2” as manufacturer’s ID no.

Reserved

Common control E

1E-1F

20

Rsvd 1E-1F

COME

RW

××

00

COME[7] – Reserved

COME[6] – Enables Field/Frame luminance average value calculations. Value

is stored in Reg. [7C], AVG [7:0].

COME[5] – PCLK output option. “1” enables PCLK output during Sleep Mode.

“0” disables PCLK during Sleep Mode.

COME[4] – “1” Aperture correction enable. Correction strength and threshold

value will be decided by COMF[7] ~ COMF[4].

COME[3] – AWB smart mode enable. 1 – do not count pixels that their

luminance level are not in the range defined in register [66]. 0 - count all

pixels to get AWB result. Valid only when COMB[0]=1 and COMA[2]=1.

COME[2] – Aperture correction mode selection. “1” - Correction only when

luminance average level larger than preset level. “0” – Correction always

same in whole range luminance.

COME[1] – AWB fast/slow mode selection. “1” - AWB is always fast mode, that

is register [01] and [02] is changed every field. “0” AWB is slow mode, [01]

and [02] change every 16/ 64 field decided by COMK[1]. When AWB enable,

COMA[2]=1, AWB is working as fast mode until it reaches stable, than as

slow mode.

COME[0] – Digital output driver capability increase selection: “1” Double digital

output driver current; “0” low output driver current status.

Note: COME[3] and COME[1] are not programmable on the OV8110 image

sensor.

21

YOFF

80

RW

Y channel offset adjustment

YOFF[7] – Offset adjustment direction 0 - Add Y[6:0]; 1 -Subtract Y[6:0].

YOFF[6:0] –Y channel digital output offset adjustment. Range: +127 ~ -127. If

COMG[2]=0, this register will be updated by internal circuit. Write a value to

this register through SCCB has no effect. COMG[2]=1, Y channel offset

adjustment will use the stored value which can be changed through SCCB.

This register has no effect to ADC output data if COMF[1]=0. If output RGB

raw data, this register will adjust G channel data.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 20

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

UOFF

(hex)

Write

Descriptions

22

80

RW

U Channel offset adjustment

UOFF[7] – Offset adjustment direction: 0 - Add U[6:0]; 1 - Subtract U[6:0].

UOFF[6:0] – U channel digital output offset adjustment. Range: +128 ~ -128. If

COMG[2]=0, this register will be updated by internal circuit. Write a value to

this register through SCCB has no effect. COMG[2]=1, U channel offset

adjustment will use the stored value which can be changed through SCCB.

This register has no effect to ADC output data if COMF[1]=1. If output RGB

raw data, this register will adjust B channel data.

Note: This function is not available on the OV8110 image sensor.

23

CLKC

04

RW

Oscillator circuit and common mode control

CLKC[7:6] – Select different crystal circuit power level (“11” = minimum).

CLKC[5] – ADC current control, “1” – half current, “0” full current.

CLKC[4] – Output data polarity selection. “1” – negative, “0” – positive.

CLKC[3] – Horizontal array skip mode. “1” – only read out half of horizontal

pixel (400) and frame rate will double. “0” – full pixel read out

CLKC[2] – Vertical array 1^ststage skip mode. “1” – only read out half of vertical

lines (200) and frame rate will double.

CLKC[1] – System clock output selection. “1” half frequency of system clock, “0”

– system clock. Only effective when FODD is set to output system clock.

CLKC[0] – Aperture correction mode selection. “1” enable threshold relative to

current gain faction. “0” – disable this function.

24

AEW

33

RW

Automatic exposure control: Bright pixel ratio adjustment

AEW[7:0] – Used as calculate bright pixel ratio. OV8610/OV8110 AEC

algorithm is count whole field bright pixel (its luminance level is higher than a

fixed level) and black pixel (its luminance level is lower than a fixed level)

number. When bright/black pixel ratio is on the range of the ratio defined by

the register [24] and [25], image stable. This register is used to define bright

pixel ratio, default is 25%, each LSB represent step: 1.3% for interlace and

0.7% for progressive scan. Change range is: [01] ~ [65]; Increase AEW[7:0]

will increase bright pixel ratio. For same light condition, the image brightness

will increase if AEW[7:0] increase.

Note: AEW[7:0] must combine with register [25] AEB[7:0]. The relation must be as

follows: AEW[7:0] + AEB[7:0] > [65].

25

AEB

97

RW

Automatic Exposure Control: Black pixel ratio adjustment

AEB[7:0] – used as calculate black pixel ratio. OV8610/OV8110 AEC algorithm

is count whole field/ frame bright pixel (its luminance level is higher than a

fixed level) and black pixel (its luminance level is lower than a fixed level)

number. When bright/black pixel ratio is in the range of the ratio defined by

the register [24] and [25], image stable. This register is used to define black

pixel ratio, default is 75%, each LSB represent step: 1.3% for interlace and

0.7 for progressive scan. Change range is: [01] ~ [65]; Increase AEB[7:0] will

increase black pixel ratio. For same light condition, the image brightness will

decrease if AEB[7:0] increase.

Note: AEB[7:0] must e combined with register [24] AEW[7:0]. The relation must be

as follows: AEW[7:0] + AEB[7:0] > [65].

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 21

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

COMF

(hex)

Write

Descriptions

26

B0

RW

Common control F

COMF[7:6] – Aperture correction threshold selection. Range is 1% to 6.4% of

difference of neighbor pixel luminance.

COMF[5:4] – Aperture correction strength selection. Range is 0 to 200% of

difference of neighbor pixel luminance.

COMF[3] – Reserved.

COMF[2] – Digital data MSB/LSB swap. “1” LSB→bit7, MSB→bit0; “0” normal.

COMF[1] – “1” digital offset adjustment enable. “0” disable.

COMF[0] – “1” Output first 4/8 line black level before valid data output

according Interlace/Progressive scan mode. HREF number will increase 4/8

lines relatively. “0” no black level output.

27

COMG

A0

RW

Common control G

COMG[7:6] – reserved

COMG[5] – Select smart AWB algorithm control condition. “1” – if strong color

component is more than 60%, AWB stop. “0” – 40%.

COMG[4] – reserved.

COMG[3] – Enable ADC black level calibration offset define by register

[78]~[7A].

COMG[2] – “1” digital offset adjustment manually mode enable. Digital data will

be add/subtract a value defined by register [21], [22] and [2E], the contents

are programmed through SCCB. “0” - digital data will be added/subtract a

value defined by register [21], [22] and [2E], which are updated by internal

circuit.

COMG[1] – Digital output full range selection. OV8610/OV8110 default output

data range is [10] - [F0]. The output range changes to [01] - [FE] with signal

overshoot and undershoot level if COMG[1]=1.

COMG[0] – SRAM interface on/off. “1”=enabled, “0” = disabled

28

COMH

01

RW

Common control H

COMH[7] – “1” selects one-line RGB raw data output format, “0” selects normal

two-line RGB raw data output.

COMH[6] – “1” enables black/white mode. The vertical resolution will be higher

than color mode when the imager works as B/W mode. OV8610/OV8110

outputs data from Y port. UV port will be tri-state. COMB[5] and COMB[4] will

be set to “0”. “0” =normal color mode.

COMH[5] – Progressive scan mode selection. “0” – Interlace, “1” Progressive.

COMH[4] – Freeze AEC/AGC value, effective only at COMB[0]=1. “1” - register

[00] and [10] will not be updated and hold latest value. “0” - AEC/AGC normal

working status.

COMH[3] – AGC disable. “1” - when COMB[0]=1 and COMA[5]=1, internal

circuit will not update register [00], register [00] will kept latest updated value.

“0” - when COMB[0]=1 and COMA[5]=1, register [00] will be updated by

internal algorithm.

COMH[2] – RGB raw data output YG format: “1” - Y channel G, UV channel B

R; “0” - Y channel: G R G R ···, UV channel B G B G ···

COMH[1] – Gain control bit. “1” channel gain increases 6dB. “0” no change to

the channel gain.

COMH[0] – Change AGCEN input pin to FSIN input when this resister is “1”.

Note: COMH[2] is not programmable on the OV8110 image sensor.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 22

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

(hex)

Write

Descriptions

29

COMI

00

RW

Common control I

COMI[7] – AEC disable. “1” If COMB[0]=1, AEC stop and register [10] value will

be held at last AEC value and not be updated by internal circuit. “0” - if

COMB[0]=1, register [10] value will be updated by internal circuit

COMI[6] – Slave mode selection. “1” slave mode, use external SYNC and

VSYNC; “0” master mode.

COMI[5] – ADC data latch 10ns delay option.

COMI[4] – Reserved

COMI[3] – Central 1/4 image area rather whole image used to calculate

AEC/AGC. “0” use whole image area to calculate AEC/AGC.

COMI[2] – reserved

COMI[1:0] – Version flag. For version A, value is [00], these two bits are read

only.

2A

FRARH

84

RW

Frame rate adjust high

FRARH[7] – Frame rate adjustment enable bit. “1” Enable.

FRARH[6:5] – Highest 2 bit of frame rate adjust control byte.

FRARH[4] – Output range selection. “1” – 01 ~ FE, “0” -- 00 ~ FF.

FRARH[3] –Y brightness adjustment by manual. Effective only COMF[1]=”1”.

FRARH[2] – Enable HSYNC latched by PCLK

FRARH[1] – “1” When in Frame exposure mode, only One frame data output.

FRARH[0] – Fast AGC mode. “1” – Speed double. “0” – Smooth but slow AGC

mode.

2B

FRARL

5E

RW

Frame rate adjust low

FRARL[7:0] – Frame rate adjust control byte. Frame rate adjustment resolution

is 0.12%. Control byte is 10 bit. Every LSB equal decrease frame rate 0.12%.

Range is 0.12% - 112%. IF frame rate adjustment enable, COME[7] must set

to “0”.

2C

2D

Rsvd 2C

COMJ

88

03

RW

Reserved

Common control J

COMJ[7:5] – reserved

COMJ[4] – Enable auto black expanding mode.

COMJ[3] – Reserved

COMJ[2] – Band filter enable. This bit enables a different exposure algorithm to

cut light band induced by fluorescent light.

COMJ[1] – Reverse output frame division. “1” – Change drop frame to output

frame

COMJ[0] –Reserved.

2E

VCOFF

80

RW

V channel offset adjustment

VCOFF[7] – Offset adjustment direction: “0” = Add V[6:0]; “1” = Subtract V[6:0].

VCOFF[6:0] – V channel digital output offset adjustment. Range: +128 ~ -128. If

COMG[2]=0, this register will be updated by internal circuit. Write to this

register through SCCB has no effect. If COMG[2] =1, V channel offset

adjustment will use the stored value which can be changed through SCCB.

Only effective when COMF[1] =0. If output RGB raw data, this register will

adjust R channel data.

Note: This function is not available on the OV8110 image sensor.

2F

REF1

19

RW

Internal voltage reference control

30 – 4B

4C

Rsvd 30–4B

MEDC

–

RW

Reserved

Medium filter option control

××

00

MEDC[7] – AWB step and range x1.5 when this register is “1”.

MEDC[6:0] – Reserved.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 23

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

(hex)

Write

Descriptions

4D

ADDC

10

RW

ADC converter option control

ADDC[7:6] – Reserved

ADDC[5] – Reserved

ADDC[4] – Reserved

ADDC[3:2]—UV delay selection. “00” – no delay. “01” – no delay. “10” – 2tp

delay. “11” 4tp delay.

ADDC[1:0] Reserved

4E—5F

60

Rsvd 4E—

5F

SPCA

-

Reserved

××

20

RW

Signal process control A

SPCA[7] – Channel 1.5x preamplifier gain enable.

SPCA[6] – Analog half current selection.

SPCA[5] – Gev/God switch instead of average for G in RGB and UV channel.

SPCA[4] – Gev/God switch instead of average for Y channel in YUV mode

SPCA[3:2] – Red channel preamplifier gain selection. “00” –1x, “01” –1.2x, “10”

–1.4x, “11”-1.6x.

SPCA[1:0] – Blue channel preamplifier gain selection. Same as above.

61

SPCB

80

RW

Signal process control B

SPCB[7] – AGC/AEC feedback loop using Y channel. RGB output must set it to

“0”.

SPCB[6:5] – Reserved

SPCB[4] – Anti-aliasing 2X option

SPCB[3] – Enable RGB brightness control.

SPCB[2] – Brightness control BRT[7:0] range and step half.

SPCB[1:0] – Auto brightness reference level. “00” – 0IRE, “01” – 6IRE, “10”

10IRE, “11” 20IRE.

62~64

65

Rsvd 62--64

SPCC

-

Reserved register for internal use.

Signal process control C

××

02

RW

SPCC[7:3] – Reserved for internal use.

SPCC[2] – ADC mode selection. Increase range by 1.5x.

SPCC[1:0] – ADC reference selection. Use recommended value only.

AWB process control.

AWBC[7:6] – Selectable highest luminance level to be available in AWB control.

AWBC[5:4] – Selectable lowest luminance level to be available in AWB control.

Effective only when COME[3]=1 in AWBC[7:4]

AWBC[3:2] – Selectable U level to be available in AWB control.

AWBC[1:0] – Selectable V level to be available in AWB control.

Effective only when COMM[7]=1 in AWBC[3:0].

YUV matrix control.

66

67

AWBC

YMXB

55

RW

YMXB[7:6] – UV coefficient selection, u=B-Y, v=R-Y

“00” - U=u. V=v.

“01” – U=0.938u, V=0.838v

“10” – U=0.563u, V=0.613v

“11” – U=0.5u, V=0.877v

YMXB[5] – Reserved.

YMXB[4] – UV signal with 3 points average.

YMXB[3:2] – Y delay selection. 0tp to 3tp.

YMXB[1:0] – Reserved.

68

ARL

AC

RW

AEC/AGC reference level

ARL[7:5] – Voltage reference selection (Higher voltage = brighter final stable

image)

“000” = Lowest reference level

“111” = Highest reference level

ARL[4:0] – Reserved

69-6E

Rvsd 69-6F

-

Reserved.

××

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 24

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

(hex)

Write

Descriptions

70

COMK

80

RW

Common mode control K

COMK[7] – HREF edge latched by PCLK falling edge.

COMK[6] – Output port drive current 2x larger option.

COMK[5] – Aperture correction option.

COMK[4] – ZV port vertical timing selection. “1” VSYNC output ZV port vertical

sync signal. “0” normal TV vertical sync signal.

COMK[3] – Reserved.

COMK[2] – Double Aperture correction strength.

COMK[1] – 4x stable time less when in AWB slow mode.

COMK[0] – Disable output pin internal 100K pull down resistor

Common control J

71

COMJ

00

RW

COMJ[7] – Auto brightness update rate selection. “1” slow, “0” fast.

COMJ[6] – PCLK output gated by HREF.

COMJ[5] – Change HREF output port to CHSYNC.

COMJ[4] – Change CHSYNC output port to HREF.

COMJ[3:2] – Highest 2 bit for HSYNC rising edge shift control. See register

[72].

COMJ[1:0] – Highest 2 bit for HSYNC falling edge shift control. See register

[73].

72

HSDY

14

RW

Horizontal SYNC rising edge shift

COMJ[3:2], HSDY[7:0], HSYNC rising edge shift control. Range 000 to 3FF,

step 1 pixel.

73

74

HEDY

54

20

RW

Horizontal SYNC falling edge shift

COMJ[1:0]&HEDY[7:0], HSYNC falling edge shift control. Range 000 to 3FF.

Common mode control M

COMM

COMM[7] – Enable UV smart AWB threshold controlled by COMG[5].

COMM[6:5] – AGC maximum gain boost control. “00” – 6db, “01” – 12db, “10” –

6db, “11” – 18db

COMM[4:0] – Reserved.

75

COMN

0E

RW

Common mode control N

COMN[7] – AWB control mode selection. “1” – AWB stop when field/frame

average level less than threshold. “0” always do AWB.

COMN[6:4] – Reserved for internal test mode.

COMN[3] – Drop one field/frame when exposure line change is bigger than a

fixed number.

COMN[2] – Enable exposure go down to less than 1/120” or 1/60” in smooth

AEC mode.

COMN[1:0] – Reserved.

76

COMO

00

RW

Common mode control O

COMO[7] – Output main clock at FODD pin.

COMO[6] – Reserved.

COMO[5] – Software power down mode.

COMO[4] – ITU-656 timing.

COMO[3] – Reserved.

COMO[2] – Tri-state all timing output except data line.

COMO[1] – SCCB writing bit synchronized by VSYNC.

COMO[0] – Reserved.

77

78

Rvsd 77

YBAS

-

Reserved

Y/G ADC offset

××

80

RW

YBAS[7:0] – Fixed offset to final Y/G data, range –128 to 128

79

7A

UBAS

VBAS

80

RW

U/B ADC offset

UBAS[7:0] – Fixed offset to final U/B data, range –128 to 128

V/R ADC offset

VBAS[7:0] – Fixed offset to final V/R data, range –128 to 128.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 25

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Sub-

Default Read/

address

(hex)

Register

(hex)

Write

Descriptions

7B

REF2

D8

RW

Internal reference control.

7C

7D

AVG

COMP

00

08

RW

Field/Frame average level storage. Only effective COME[6]=1.

Common mode control P

COMP[7] – 10-bit output in one port output, less 2 bit come from UV1 and UV0.

COMP[6] – 10-bit output in one port output, less 2 bit come from FODD and

HREF.

COMP[5] – Reserved.

COMP[4] – Flip vertical sate read out. Only for YUV mode.

COMP[3] – ADC BLC level option. “1”=10-bit ADC BLC level “10” (H), “0”=10-bit

ADC BLC Level “40” (H).

COMP[2:0] – Reserved.

7E—81

82

Rsvd7E—81

VB

-

Reserved

××

23

0B

00

RW

AEC/AGC fast mode low threshold control. Same as AEB[7:0].

AEC/AGC fast mode high threshold control. Same as AEW[7:0].

Common mode control S

83

84

VW

COMS

COMS[7] – Reserved.

COMS[6] – Average AGC/AEC algorithm

COMS[5:3] –Reserved.

COMS[2] – 1-line ADC option

COMS[1] – Reserved.

COMS[0] – Reserved.

85-86

87-88

89

Rsvd85-86

Rsvd 87-88

COMV

-

Reserved.

Common mode control V

××

xx

00

RW

COMV[7] – Auto frame rate adjustment selection. “1” – 1 time every 2

fields/frames. “0” – 1time every 1 field/frame.

COMV[6] – Double output pixel clock.

COMV[5] – Output true black line.

COMV[4] – CIF 1 line clock phase selection.

COMV[3] – Enable ZV timing HSYC option.

COMV[2] – By pass RGB matrix.

COMV[1] – Change highest bit AGC to clock down 2.

COMV[0] – Reserved.

8A

8B

RAVE

BAVE

00

RW

R channel average values

B channel average values

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 26

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

+0.010

0.060 -0.005

0.440 ±0.005

0.040 ±0.003

0.040 ±0.007

TYP

31

42

43

48

30

Bottom View

Note:

Die thickness=0.0275

0.020 ±0.008

TYP

19

6

7

18

R 0.0075

4 CORNERS

R 0.0075

48 PLCS

0.085 ±0.010

0.003

+0.012

0.560 SQ -0.005

0.430 SQ ±0.005

0.350 SQ ±0.005

0.065 ±0.007

0.030

±0.002

0.020 ±0.002

42

31

0.002

42

31

30

43

30

Side View

48

1

6

7

19

6

19

18

7

0.006 MAX

0.002 TYP

18

Top View

Figure 9. OV8610/OV8110 Package Diagram

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 27

Website: http://www.ovt.com

OV8610/OV8110

SINGLE IC CMOS VGA DIGITAL CAMERAS

Array Center

(12.6 mil, 1.1 mil)

(319µm, 29µm)

1

DIE

Sensor

Array

Package Center

(0, 0)

Figure 10. OV8610/8110 Sensor array center location

Note: Most optical systems invert and mirror the image so the chip is usually mounted on the board with pin one down.

OmniVision Technologies, Inc. reserves the right to make changes without further notice to any product herein to improve reliability, function, or

design. OmniVision Technologies, Inc. does not assume any liability arising out of the application or use of any product or circuit described herein;

neither does it convey any license under its patent rights nor the rights of others. No part of this publication may be copied or reproduced, in any

form, without the prior written consent of OmniVision Technologies, Inc.

OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.

Tel: (408) 733-3030 Fax: (408) 733-3061

e-mail: info@ovt.com

Version 1.3, August 27, 2001

Page 28

Website: http://www.ovt.com
