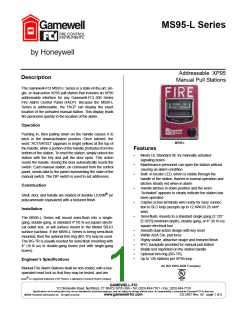

MS95-L Series
Addressable XP95
Manual Pull Stations
Description
The Gamewell-FCI MS95-L Series is a state-of-the-art, sin-
gle- or dual-action XP95 pull station that includes an XP95
addressable interface for any Gamewell-FCI 600 Series
Fire Alarm Control Panel (FACP). Because the MS95-L
Series is addressable, the FACP can display the exact
location of the activated manual station. This display leads
fire personnel quickly to the location of the alarm.
Operation
Pushing in, then pulling down on the handle causes it to
latch in the down/activated position. Once latched, the
word “ACTIVATED” (appears in bright yellow) at the top of
the handle, while a portion of the handle protrudes from the
bottom of the station. To reset the station, simply unlock the
station with the key and pull the door open. This action
resets the handle; closing the door automatically resets the
switch. Each manual station, on command from the control
panel, sends data to the panel representing the state of the
manual switch. The DIP switch is used to set addresses.
MS95-L
Features
•
•
•
Meets UL Standard 38, for manually actuated
signaling boxes
Maintenance personnel can open the station without
causing an alarm condition
Built- in bicolor LED, which is visible through the
handle of the station, flashes in normal operation and
latches steady red when in alarm
Handle latches in down position and the word
“Activated” appears to clearly indicate the station has
been operated
Captive screw terminals wire-ready for easy connec-
tion to SLC loop (accepts up to 12 AWG/3.25 mm²
wire)
Semi-flush, mounts to a standard single gang (2.125”
[5.3975] minimum depth), double gang, or 4” (10.16 cm)
square electrical box
Smooth dual-action design with key reset
Within ADA 5 lb. pull force
Highly visible, attractive shape and textured finish
NYC backplate provided for manual pull station
Braille text imprinted on the station handle
Optional trim ring (BG-TR)
Construction
•
•
•
®
Shell, door, and handle are molded of durable LEXAN (or
polycarbonate equivalent) with a textured finish.
Installation
The MS95-L Series will mount semi-flush into a single-
gang, double-gang, or standard 4" (10.16 cm) square electri-
cal outlet box, or will surface mount to the Model SB-IO
surface backbox. If the MS95-L Series is being semi-flush
mounted, then the optional trim ring (BG-TR) may be used.
The BG-TR is usually needed for semi-flush mounting with
4" (10.16 cm) or double-gang boxes (not with single-gang
boxes).
•
•
•
•
•
•
•
Up to 126 stations per XP95 loop
Engineer’s Specifications
An ISO 9000-2000 Company
Manual Fire Alarm Stations shall be non-coded, with a key-
operated reset lock so that they may be tested, and are
SIGNALING
®
