WT7220

型号:

WT7220

描述:

电流调节器用于LED[ Current Regulator for LED ]

品牌:

ETC[ ETC ]

页数:

4 页

PDF大小:

86 K

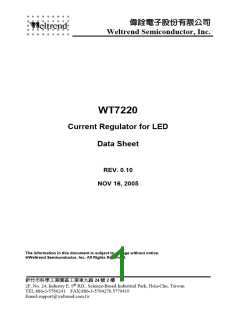

偉詮電子股份有限公司
Weltrend Semiconductor, Inc.
WT7220
Current Regulator for LED
Data Sheet
REV. 0.10
NOV 16, 2005
The information in this document is subject to change without notice.
Weltrend Semiconductor, Inc. All Rights Reserved.
新竹市科學工業園區工業東九24號2樓
2F, No. 24, Industry E. 9th RD., Science-Based Industrial Park, Hsin-Chu, Taiwan
TEL:886-3-5780241 FAX:886-3-5794278.5770419
Email:support@weltrend.com.tw
WT7220
Data Sheet Rev. 0.10
GENERAL DESCRIPTION
The WT7220 is a current regulator which provide 350mA constant sink current. It is optimal for use as
LED drive.
FEATURES
Low quiescent current
Low standby current <1uA.
Miniature package SOT-89
Built-in thermal protection
PIN CONFIGURATION
PIN DESCRIPTION
Pin No.
Pin Name
VDD
GND
OUT
TYPE
FUNCTION
1
2
3
P
P
O
Power supply input.
Ground.
Output.
Weltrend Semiconductor, Inc.
Page 2
WT7220
Data Sheet Rev. 0.10
BLOCK DIAGRAM
Absolute Maximum Operating Range, Ta=+25℃
CHARACTERISTICS
Maximum supply voltage
H-bridge output voltage
Operating temperature
Storage temperature
SYMBOL
VCC
VOUT
Topr
Tstg
VALUE
-0.3 to +7.0
-0.3 to +7.0
-20 ~ +75
Unit
V
V
-40 ~ +150
*Note: Mounted on the 114.3x76.1x1.6 mm3 glass-epoxy board.
Electrical Characteristics (VDD=4V,Ta= +25℃)
Parameter
Output Current
Symbol
IOUT Vout=0.6V-3V
IDD
Conditions
Min.
310
Typ.
Max.
Unit
350
0.3
390
mA
mA
Operating current Dissipation
Load Regulation
Vout=0.2V-3V
VDD=3V-6V
5
5
mA/V
mA/V
oC
Line Regulation
Thermal Protection Temperature
Tpt
120
Weltrend Semiconductor, Inc.
Page 3
WT7220
Data Sheet Rev. 0.10
TYPICAL APPLICATION
Weltrend Semiconductor, Inc.
Page 4
