WSN-3202

型号：

WSN-3202

描述：

无线传感器网络的可编程模拟输入测量节点[ Wireless Sensor Network Programmable Analog Input Measurement Nodes ]

品牌：

NI[ National Instruments ]

页数：

11 页

PDF大小：

1045 K

下载PDF手册

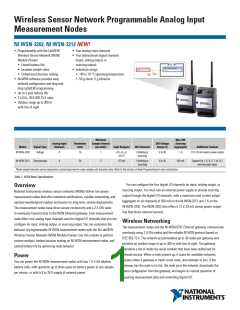

Wireless Sensor Network Programmable Analog Input
Measurement Nodes
NI WSN-3202, NI WSN-3212 NEW!
◾◾
◾◾
◾◾
Programmable with the LabVIEW
Wireless Sensor Network (WSN)
Module Pioneer
Four analog input channels
Four bidirectional digital channels
(input, sinking output, or
sourcing output)
◾◾
Extend battery life
◾◾
◾◾
Increase sample rates
Industrial ratings:
◾◾
◾◾
Embed local decision making
-40 to 70 °C operating temperature
◾◾
◾◾
NI-WSN software provides easy
network configuration and drag-and-
drop LabVIEW programming
Up to 3-year battery life
2.4 GHz, IEEE 802.15.4 radio
Outdoor range up to 300 m
with line of sight
50 g shock, 5 g vibration
◾◾
◾◾
◾◾
Minimum
Max DIO
Sourcing
(aggregate)
Analog Input
Resolution
Sample Interval
DIO Voltage
Range (V)
Model
NI WSN-3202
Signal Type
Channels
(bits)
(seconds)1
Input Range(s)
DIO Channels
Additional Features
Voltage
4
16
1
2
10, 5, 2,
0.5 V
4 (sinking or
sourcing)
5 to 30
1 A
12 V, 20 mA sensor power output
NI WSN-3212 Thermocouple
4
24
73 mV
4 (sinking or
sourcing)
5 to 30
500 mA
Support for J, K, R, S, T, N, B, E
thermocouple types
1Node sample intervals can be improved by customizing how the node samples and transmits data. Refer to the section on Node Programming for more information.
Table 1. WSN Node Specifications
You can configure the four digital I/O channels for input, sinking output, or
sourcing output. You must use an external power supply to provide sourcing
output through the digital I/O channels, with a maximum total current output
(aggregate on all channels) of 500 mA on the NI WSN-3212 and 1 A on the
NI WSN-3202. The WSN-3202 also offers a 12 V, 20 mA sensor power output
line that drives external sensors.
Overview
National Instruments wireless sensor networks (WSNs) deliver low-power
measurement nodes that offer industrial certifications, reliable networking, and
optional weatherproof outdoor enclosures for long-term, remote deployments.
The measurement nodes have direct sensor connectivity and a 2.4 GHz radio
to wirelessly transmit data to the WSN Ethernet gateway. Each measurement
node offers four analog input channels and four digital I/O channels that you can
configure for input, sinking output, or sourcing output. You can customize the
behavior of programmable NI WSN measurement nodes with the NI LabVIEW
Wireless Sensor Network (WSN) Module Pioneer. Use this module to perform
custom analysis, embed decision making on NI WSN measurement nodes, and
extend battery life by optimizing node behavior.
Wireless Networking
The measurement nodes and the NI WSN-9791 Ethernet gateway communicate
wirelessly using 2.4 GHz radios and the reliable NI WSN protocol based on
IEEE 802.15.4. The network accommodates up to 36 nodes per gateway and
provides an outdoor range of up to 300 m with line of sight. The gateway
maintains a list of nodes (by serial number) that have been authorized for
network access. When a node powers up, it scans for available networks,
locates either a gateway or mesh router node, and attempts to join. If the
gateway has the node in its list, the node joins the network, downloads the
latest configuration from the gateway, and begins its normal operation of
Power
You can power the NI WSN measurement nodes with four 1.5 V AA alkaline
battery cells, with operation up to three years on battery power at one sample
per minute, or with a 9 to 30 V supply of external power.
acquiring measurement data and controlling digital I/O.
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Mesh Networking
Programming
Gateways, routers, and end nodes work together to form a mesh network.
You can integrate your NI WSN measurement data directly into the LabVIEW
Measurement nodes can operate as routers or end nodes, providing the flexibility graphical development environment. After adding the WSN Ethernet gateway
to extend the range of your sensor network. When nodes are configured as
routers, they can repeat messages from end nodes and extend network range
while acquiring measurement data. Router nodes must remain on to send and
receive data across the network, and should be powered with an external source
such as a 9 to 30 V supply, solar panel, or larger battery.
to a LabVIEW project, the nodes configured with the gateway in MAX are
automatically added underneath the gateway in the project, giving you instant
access to their I/O and properties (see Figure 2).
Software Overview
With NI-WSN software, you can easily configure your sensor network in
the NI Measurement & Automation Explorer (MAX) configuration utility
(see Figure 1) and quickly extract measurement data from your wireless
sensor network with the LabVIEW graphical development environment.
Network Configuration
MAX provides an intuitive user interface to add and remove measurement nodes
and configure wireless settings. Upon connection, the WSN-9791 Ethernet
gateway is autodetected under Remote Systems in MAX, and you can assign
WSN nodes to the gateway by entering the node serial number. Upon power-up
or reset, the nodes automatically connect to the assigned gateway. If a node is
unable to connect, it executes a retry sequence with increasingly higher wait
periods beginning with one minute between connect attempts and ending with
55 minutes between connect attempts. This preserves battery power if a
gateway is offline.
MAX also provides an overview of the nodes connected to your network
including their last communication time, battery status, and link quality. In
addition, MAX offers an interface to set the wireless communication channel,
configure the gateway IP address, and wirelessly update firmware on the
measurement nodes.
Figure 2. NI WSN System in the LabVIEW Project
Simply drag and drop I/O variables from a LabVIEW project to a LabVIEW
block diagram for data extraction, analysis, and presentation (see Figure 3).
Figure 1. Network Configuration in MAX
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Using a subset of LabVIEW analysis functions and floating-point math
operations, you can preprocess data acquired by NI WSN measurement nodes.
A variety of analog and digital sensors can interface directly with these nodes,
and you can use LabVIEW WSN Pioneer to scale and convert raw sensor data
into meaningful engineering units before transmitting.
With LabVIEW WSN Pioneer, you can also embed decision making on
NI WSN measurement nodes, so decisions can be made autonomously
without transmitting the stimulus and response to and from a host computer
or embedded controller. You can use the digital output lines on an NI WSN
measurement node to actuate relays and perform simple on/off control. For
example, a programmed node can turn on a fan when a temperature threshold is
exceeded, which reduces response time and increases reliability by removing the
need for host interaction.
Figure 3. Extracting NI WSN Measurement Data Using LabVIEW
Using the drag-and-drop LabVIEW variables, you can monitor the analog and
digital channels as well as other node attributes such as link quality, battery
voltage, and whether a node is configured as a router or end node. The LabVIEW
Project interface also offers access to node property configuration utilities.
You can modify node sample intervals, define the analog and digital channel
parameters, and provide aliases.
NI WSN Applications and Architectures
With NI WSNs and access to the full breadth of NI platforms through LabVIEW,
you have the flexibility to create simple, stand-alone wireless monitoring
networks or completely integrated wired and wireless measurement solutions.
In a simple architecture, as seen in Figure 4, the WSN measurement nodes
acquire data and communicate wirelessly to the central gateway, which provides
a wired Ethernet connection to a Windows or LabVIEW Real-Time host controller
where you can log, analyze, process, and present your data.
Node Programming
You can customize the behavior of programmable NI WSN measurement nodes
with LabVIEW WSN Pioneer. Use this module to perform custom analysis, embed
decision making on NI WSN measurement nodes, and extend battery life by
optimizing node behavior.
With LabVIEW WSN Pioneer, you can significantly increase the battery life of
your NI WSN measurement nodes while increasing performance and flexibility.
By default, a node transmits every acquired value back to the gateway at the
specified sample interval; however, in many applications, it is sufficient to simply
monitor a given input for a threshold crossing or average values over a period of
time. In these applications, powering the radio to transmit every acquired sample
uses excessive power and reduces battery life. With LabVIEW WSN Pioneer,
you can add intelligence to the node to transmit data only when required.
Additionally, you can monitor battery voltage and network status as well as
modify the sample interval of the node to optimize behavior for specific
operating conditions.
This also helps you achieve higher sample rates by customizing how the node
acquires and transmits data. Exact sample rates depend on how many channels
you are sampling, the analysis performed on each sample, and how many
samples are transmitted back to the host. Without transmitting samples, the
programmable WSN-3202 node can achieve a 35 Hz sample rate on one channel,
while the programmable WSN-3212 can achieve a 4 Hz sample rate on one
channel. Refer to the LabVIEW WSN Benchmarking white paper on NI Developer
Zone for more information on increasing sample rates.
Figure 4. NI WSN systems provide flexible connectivity to Windows or LabVIEW Real-Time
host controllers.
Furthermore, you can combine NI WSNs with other NI platforms to customize
and enhance your measurement capabilities. You can complement your NI WSN
with programmable automation controllers (PACs), vision systems, or even
human machine interfaces (HMIs) to create a fully integrated solution that meets
your unique application needs (see Figure 5).
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Accessories
NI WSN accessories feature options for gateway and measurement node
mounting as well as a weatherproof enclosure for outdoor use of the
measurement nodes. Available mounting accessories include options to panel
mount and DIN-rail mount WSN measurement nodes and gateways. The
NI WSN-3281 magnetic panel mount kit provides easy setup and takedown
on virtually any metal surface. For high shock and vibration applications,
NI recommends a panel mounting configuration rather than DIN-rail.
Accessory
Description
NI WSN-3280
NI WSN node panel mount bracket with spring-loaded screw-locking
mechanism and integrated strain relief
NI WSN-3281
NI WSN node magnetic panel mount bracket with spring-loaded
screw-locking mechanism and integrated strain relief
NI WSN-3282
NI WSN-3283
NI WSN DIN-rail mount kit for nodes or gateway (includes four screws)
NI WSN panel mount plate for nodes or gateway (recommended for
gateway) with additional four keyholes for mounting to wall in multiple
orientations (includes four screws)
Figure 5. Customize and enhance your NI WSN system.
Table 2. Mounting Kits
LabVIEW integration with NI WSNs delivers a common development
environment for your applications as well as rapid programming, easy network
configuration, and remote data access with LabVIEW Web services. You can also
use other NI software such as DIAdem to conduct advanced data processing
and analysis or the LabVIEW Datalogging and Supervisory Control Module for
integrated event detection and alarming.
The NI WSN-3291 is an outdoor, weatherproof enclosure for NI WSN
measurement nodes (see Figure 7). The enclosure features two I/O glands
for routing power or sensor cables and is shipped with four I/O gland inserts
and two I/O gland plugs so you can customize the glands for your application.
The WSN-3291 offers an IP64 (Ingress Protection) rating to protect NI WSN
measurement nodes for long-term, outdoor deployment.
Mechanical Information
The measurement node housing measures 5 by 3.3 by 1.5 in. (H by W by D),
with the external antenna extending 4.25 in., resulting in a total height of
9.25 in. You can unscrew the faceplate of the measurement node to reveal the
battery compartment, which holds four AA alkaline batteries and a reset button
for manual reboots. Consult the user guide for detailed mechanical information.
Signal-Strength
and User LEDs
Power Connector
Figure 7. Outdoor Enclosure with NI WSN Measurement Node (not included)
Battery Access, 4AA
18-Position Screw-
Terminal Connector
Accessory
Description
NI WSN-3291
NI WSN-3292
NI WSN-3293
IP64 outdoor enclosure for WSN measurement nodes
Set of replacement I/O glands: two glands, four inserts, two plugs
Additional I/O gland inserts (set of 5)
Figure 6. Measurement Node External Features
The nodes also offer screw terminals for direct sensor connectivity and signal-
strength LEDs for network monitoring.
Table 3. Outdoor Enclosure and Accessories
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
4
Wireless Sensor Network Programmable Analog Input Measurement Nodes
You can choose from several power accessories that provide external power
Ordering Information
to the WSN Ethernet gateway or WSN measurement nodes.
NI WSN Starter Kit (Americas)......................................................781080-01
Accessory
Description
NI WSN Starter Kit (Europe/Asia) .................................................781080-11
Desktop Power Supply
This power supply provides 12 VDC power up to 1.25 A /15 W, and is
rated for 0 to 70 °C. The supply terminates with a 2-position MINI-
COMBICON connector that plugs directly into the WSN gateway or
measurement nodes.
Ethernet Gateway
NI WSN-9791 (Americas)...............................................................780996-01
NI WSN-9791 (Europe/Asia)..........................................................780996-11
PS-5 Power Supply
This DIN-rail-mountable, 24 VDC power supply delivers up to 5 A of
current and is rated for operation from -25 to 60 °C. Recommended for
industrial installations.
Programmable Measurement Nodes
NI WSN-3202 (Americas)...............................................................780997-02
NI WSN-3202 (Europe/Asia)..........................................................780997-12
NI WSN-3212 (Americas)...............................................................780998-02
NI WSN-3212 (Europe/Asia)..........................................................780998-12
Table 4. External Power Supplies
The connectivity accessories for NI WSN products include additional screw-
terminal kits for the measurement nodes and a power connector backshell kit
that contains a strain relief attachment for the two-position power connector on
the Ethernet gateway and measurement nodes.
Nonprogrammable Measurement Nodes
NI WSN-3202 (Americas)...............................................................780997-01
NI WSN-3202 (Europe/Asia)..........................................................780997-11
NI WSN-3212 (Americas)...............................................................780998-01
NI WSN-3212 (Europe/Asia)..........................................................780998-11
Accessory
Description
NI WSN-3284
Extra 18-position screw-terminal connectors for WSN-3202 – 2 top entry,
2 side entry – with labels
NI WSN-3285
Extra 18-position screw-terminal connectors for WSN-3212 – 2 top entry,
2 side entry – with labels
Power Accessories
Power Connectors
Extra 2-position MINI-COMBICON power connectors – quantity 4
Desktop supply...............................................................................780703-01
U.S. power cord..............................................................................763000-01
PS-5 industrial supply ....................................................................778805-90
Power Connector
Backshell
Strain relief attachment for the 2-position power connector on the
measurement nodes and gateway; clips to the connector and includes
a zip tie to hold the power cable in place
Table 5. Connectivity Accessories
Mounting Accessories
NI WSN-3280.................................................................................780999-01
NI WSN-3281.................................................................................781073-01
NI WSN-3282.................................................................................781074-01
NI WSN-3283.................................................................................781075-01
Connectivity Accessories
NI WSN-3284.................................................................................781076-01
NI WSN-3285.................................................................................781077-01
Power connectors...........................................................................780702-01
Power connector backshell kit.......................................................196375-01
Outdoor Enclosure and Accessories
NI WSN-3291.................................................................................780994-01
NI WSN-3292.................................................................................195712-01
NI WSN-3293.................................................................................195738-01
BUY NOW
For complete product specifications, pricing, and accessory information,
call 800 813 3693 (U.S.) or go to ni.com/wsn.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
5
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Residual
Gain Error
(ppm of
Residual
Offset Error
(ppm of
Offset
Tempco
(ppm of
NI WSN-3202 Specifications
Gain
Tempco
(ppm/°C)
INL Error
(ppm of
Range)
These specifications are typical for the range -40 to 70 °C unless otherwise
noted. Some specifications (such as sample interval and power consumption)
can be optimized by customizing node behavior with the LabVIEW Wireless
Sensor Network (WSN) Module Pioneer. See the LabVIEW WSN Benchmarking
document, found on NI Developer Zone, for more information.
Nominal
Range (V)
Reading)
Range)
Range/°C)
10
5
102
137
182
160
31
41
48
50
164
240
420
300
22
22
22
24
100
100
100
100
2
0.5
» For complete WSN-3202 analog input node specifications, see
the NI WSN-3202 User Guide and Specifications manual at ni.com/manuals.
Table 7. Accuracy Details
Absolute Accuracy Formulas
Analog Input Characteristics
Number of channels.............................. 4 single-ended channels
ADC resolution...................................... 16 bits
DNL ...................................................... No missing codes guaranteed
INL ...................................................... Refer to the Absolute
Accuracy Formulas
Minimum sample interval1.................... 1 second
Input coupling........................................ DC
Nominal input ranges............................ 10 V, 5 V, 2 V, 0.5 V
Minimum over range............................. 4%
Input impedance (at DC)
Digital I/O
Powered on....................................... >1 GΩ
Powered off/overload....................... 10 kΩ
Input bias current.................................. 3 nA
Crosstalk (at 1 kHz)
Static Characteristics
Number of channels.............................. 4 bidirectional, individually settable
Modes (configurable per channel) ........ Drive High Only, Drive Low Only,
Drive High and Low, and Tristate
Adjacent channels............................ >100 dB
Nonadjacent channels...................... >100 dB
Analog bandwidth................................. 7 kHz
Voltage range
Input.................................................. 0 to 30 V
Output (sourcing) .............................. 5 to 30 V
Output current (sourcing or sinking)...... 1 A max on any one channel,
1 A total for all four channels
Overvoltage protection.......................... 30 V (one channel only)
1Minimum sample interval for WSN-3202 can be improved by customizing node behavior with the
LabVIEW Wireless Sensor Network (WSN) Module Pioneer. See the LabVIEW WSN Benchmarking
document, found on NI Developer Zone, for more information.
Power-on output state .......................... High impedance, tristate
DIO power supply voltage range........... 5 to 30 V
Digital input logic levels
AI Absolute Accuracy Tables and Formulas
The values in the following tables are based on calibrated scaling coefficients,
which are stored in the onboard EEPROM.
Input high range................................ 1.65 to 30 V
Input low range................................. 0 to 0.45 V
Input current
Absolute Accuracy
at Full Scale (mV)1
Random Noise
Nominal Range (V)
S(μVrms
342
172
69
)
Sensitivity2 (μV)
0 V input............................................ -160 μA
5 V input............................................ 125 μA
30 V input.......................................... 220 μA
10
5
27.61
16.61
7.72
137
68.5
27.5
7
2
0.5
1.95
18
1Absolute accuracy values at full scale on the analog input channels assume the device is operating
within 45 °C of the last calibration and are valid for averaging 100 samples immediately following
calibration. Refer to the Absolute Accuracy Formulas for more information.
2Sensitivity is the smallest voltage change that can be detected. It is a function of noise.
Table 6. Accuracy Summary
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
6
Wireless Sensor Network Programmable Analog Input Measurement Nodes
DIO output voltage drop
Sourcing............................................ 0.5 V at 0.1 A; 1.1 V at 1 A
Sinking.............................................. 0.06 V at 0.1 A; 0.52 V at 1 A
DIO overcurrent fuse
Maximum voltage............................. 30 V
Hold current...................................... 1.1 A at 25 °C
Trip time............................................ 2.5 s at 5 A at 25 °C
Dynamic Characteristics
Output delay time
Sinking, 10 kΩ pull up....................... 15 μs
Sourcing, 10 kΩ pull down ............... 3.5 ms
Power Requirements
Caution: Use the WSN-3202 with a 24 VDC, UL-listed, limited power source
(LPS) supply. The power supply bears the UL-listed mark, LPS. It must also meet
any safety and compliance requirements for the country of use. Do not use
rechargeable batteries.
The following power requirements specifications are typical at 25 °C.
Battery Power
Internal battery
Type................................................... 4 AA, alkaline only
Voltage range ................................... 3.6 to 7.5 V
Power consumption1, 3
60-second sample interval........... 0.5 mW at 6 V
1-second sample interval............. 13.3 mW at 6 V
Battery life1
60-second sample interval ............... Up to 3 years
1-second sample interval ................. Up to 1 month
External Power
External power...................................... 9 to 30 V
Power input mating connector.............. 2-position MINI-COMBICON,
Phoenix Contact part number: 1714977
Power consumption3
End node mode
60-second sample interval........... 16 mW at 24 V
1-second sample interval............. 33 mW at 24 V
Router mode2 .................................... 300 mW at 24 V
1Device executing NI-WSN firmware. End node mode. Sensor power not used.
2Router connected directly to gateway. Routing messages for one end node
at a one minute sample interval.
3Power consumption for WSN-3202 can be improved by customizing node behavior with the LabVIEW
Wireless Sensor Network (WSN) Module Pioneer. See the LabVIEW WSN Benchmarking document,
found on NI Developer Zone, for more information.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
7
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Output current (sourcing or sinking)...... 500 mA max on any one channel,
500 mA total for all four channels
Power-on output state .......................... High impedance, tristate
NI WSN-3212 Specifications
These specifications are typical for the range -40 to 70 °C unless otherwise
noted. Some specifications (such as sample interval and power consumption)
can be optimized by customizing node behavior with the LabVIEW Wireless
Sensor Network (WSN) Module Pioneer. See the LabVIEW WSN Benchmarking
document, found on NI Developer Zone, for more information.
DIO power supply voltage range........... 5 to 30 V
Digital input logic levels
Input high range................................ 1.65 to 30 V
Input low range................................. 0 to 0.45 V
Input current
» For complete WSN-3212 thermocouple input node specifications, see
the NI WSN-3212 User Guide and Specifications manual at ni.com/manuals.
0 V input............................................ -160 μA
5 V input............................................ 125 μA
30 V input.......................................... 220 μA
DIO output voltage drop
Analog Input Characteristics
Number of channels.............................. Thermocouple input channels
ADC resolution...................................... 24 bits
Type of ADC........................................... delta-sigma
Voltage measurement range................. 73 mV
Common-mode range
Sourcing............................................ 0.5 V at 0.1 A; 0.763 V at 0.5 A
Sinking.............................................. 0.057 V at 0.1 A; 0.286 V at 0.5 A
DIO overcurrent fuse
Maximum voltage............................. 30 V
Hold current...................................... 1.1 A at 25 °C
Trip time............................................ 2.5 s at 5 A at 25 °C
Channel-to-common ......................... 700 mV
Common-mode rejection ratio (0 to 60 Hz)
Channel-to-common ......................... 95 dB
Temperature measurement ranges
Dynamic Characteristics
Output delay time
Thermocouple types J, K,
R, S, T, N, and B ........................... Works over temperature ranges
defined by NIST
Sinking, 10 kΩ pull up....................... 15 μs
Sourcing, 10 kΩ pull down ............... 3.5 ms
Thermocouple type E........................ -270 to 950 °C
Minimum sample interval1.................... 2 seconds
Input bandwidth (-3 dB)......................... 1 Hz
Noise rejection...................................... 65 dB min at 50/60 Hz
Overvoltage protection.......................... 30 V between any input and common
Differential input impedance................ 20 MΩ
Input current.......................................... 50 nA
Input noise............................................. 0.5 μVrms
Gain error .............................................. 0.02% max at 25 °C,
0.03% typ at -40 to 70 °C,
Power Requirements
Caution: Use the WSN-3212 with a 24 VDC, UL-listed, limited power source
(LPS) supply. The power supply bears the UL-listed mark, LPS. It must also meet
any safety and compliance requirements for the country of use. Do not use
rechargeable batteries.
The following power requirements specifications are typical at 25 °C.
Battery Power
Internal battery
Type................................................... 4 AA, alkaline only
Voltage range ................................... 3.6 to 7.5 V
Power consumption1, 3
0.1% max at -40 to 70 °C
Offset error (with autozero)................... 11 μV typ, 12.5 μV max
1Minimum sample interval for WSN-3212 can be improved by customizing node behavior with the
LabVIEW Wireless Sensor Network (WSN) Module Pioneer. See the LabVIEW WSN Benchmarking
document, found on NI Developer Zone, for more information.
60-second sample interval ............... 0.4 mW at 6 V
2-second sample interval ................. 7.4 mW at 6 V
Battery life1
Digital I/O
60-second sample interval ............... Up to 3 years
2-second sample interval ................. Up to 2 months
Static Characteristics
Number of channels.............................. 4 bidirectional, individually settable
Modes (configurable per channel) ........ Drive High Only, Drive Low Only,
Drive High and Low, and Tristate
External Power
Voltage range........................................ 9 to 30 V
Power input mating connector.............. 2-position MINI-COMBICON,
Phoenix Contact part number: 1714977
Voltage range
Input.................................................. 0 to 30 V
Output (sourcing) .............................. 5 to 30 V
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
8
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Power consumption3
End node mode
60-second sample interval........... 15 mW at 24 V
2-second sample interval............. 25 mW at 24 V
Router mode1 .................................... 300 mW at 24 V
1Device executing NI-WSN firmware. End node mode. Sensor power not used.
2Router connected directly to gateway. Routing messages for one end node
at a one-minute sample interval.
3Power consumption for WSN-3212 can be improved by customizing node behavior with the LabVIEW
Wireless Sensor Network (WSN) Module Pioneer. See the LabVIEW WSN Benchmarking document,
found on NI Developer Zone, for more information.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
9
Wireless Sensor Network Programmable Analog Input Measurement Nodes
Environmental
For outdoor use, mount the system in a suitably rated enclosure.
NI WSN-3202 and NI WSN-3212 Specifications
Node Resources for LabVIEW WSN
User flash size....................................... 248 kB
Number of flash erase cycles
Operating temperature.......................... -40 to 70 °C
(IEC-60068-2-1 and IEC-60068-2-2)
Storage temperature............................. -40 to 85 °C
(IEC-60068-2-1 and IEC-60068-2-2)
per sector.......................................... 100,000
Operating humidity................................ 10 to 90% RH, noncondensing
(IEC-60068-2-56)
Wireless Characteristics
Radio mode ........................................... IEEE 802.15.4
RF data rate........................................... 250 kbits/s
Indoor range.......................................... Up to 90 m
Outdoor range ....................................... Up to 300 m
Frequency band1.................................... ISM 2.4 GHz (2400 to 2483.5 MHz)
Channels2 .............................................. 11 to 24
TX power
Storage humidity................................... 5 to 95% RH, noncondensing
(IEC-60068-2-56)
Maximum altitude................................. 2,000 m
Pollution degree.................................... 2 (IEC 60664)
Shock and Vibration
Operating vibration, random................. 5 grms, 10 to 500 Hz
Version
Maximum Radio Output
+17 dBm max (50 mW)
+10 dBm max
(IEC 60068-2-64)
Americas
Operating shock .................................... 30 g, 11 ms half sine,
50 g, 3 ms half sine,
Europe/Asia
18 shocks at 6 orientations
Modulation type ............................... DSSS (O-QPSK)
Receiver sensitivity........................... -102 dBm
(IEC 60068-2-27)
Operating vibration, sinusoidal............. 5 g, 10 to 500 Hz
(IEC 60068-2-6)
Antenna
Connector.......................................... Female RP-SMA connector
VSWR................................................ MAX.2.0
Impedance ........................................ 50 Ω
Directivity.......................................... Omni
Nominal gain......................................... 1.5 dBi
1Due to regulations, the frequency bands depend on the country of operation.
2Due to regulations, the valid channels depend on country of operation.
Physical Characteristics
Screw-terminal wiring .......................... 14 to 24 AWG wire
Torque for screw terminals...................ꢀ 0.2ꢀtoꢀ0.25ꢀN•m
Dimensions............................................ See the NI WSN-32xx User Guide
manuals for device dimensions.
Weight................................................... Approx. 242 g (8.5 oz)
Weight with antenna............................ Approx. 256 g (9 oz)
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
10
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you access to
engineers who speak your language. NI delivers industry-leading technical
support through online knowledge bases, our applications engineers,
and access to 14,000 measurement and automation professionals within NI
Developer Exchange forums. Find immediate answers to your questions at
ni.com/support.
I
your needs around the globe and through
A
the application life cycle – from planning
and development through deployment and
SERVICE
NEEDS
ongoing maintenance. We offer services
and service levels to meet customer
requirements in research, design, validation,
and manufacturing.
P
E
V
Y
We also offer service programs that provide automatic upgrades to your
application development environment and higher levels of technical support.
Visit ni.com/ssp.
Visit ni.com/services.
Training and Certification
NI training is the fastest, most certain route to productivity with our products.
NI training can shorten your learning curve, save development time, and reduce
maintenance costs over the application life cycle. We schedule instructor-led
courses in cities worldwide, or we can hold a course at your facility. We also
offer a professional certification program that identifies individuals who have
high levels of skill and knowledge on using NI products.
Hardware Services
System Assurance Programs
NI system assurance programs are designed to make it even easier for you
to own an NI system. These programs include configuration and deployment
services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic
System Assurance Program provides a simple integration test and ensures that
your system is delivered completely assembled in one box. When you configure
your system with the NI Standard System Assurance Program, you can select
from available NI system driver sets and application development environments
to create customized, reorderable software configurations. Your system arrives
fully assembled and tested in one box with your software preinstalled. When
you order your system with the standard program, you also receive system-
specific documentation including a bill of materials, an integration test report,
a recommended maintenance plan, and frequently asked question documents.
Finally, the standard program reduces the total cost of owning an NI system
by providing three years of warranty coverage and calibration service. Use the
online product advisors at ni.com/advisor to find a system assurance program
to meet your needs.
Visit ni.com/training.
Professional Services
Our NI Professional Services team is composed of NI applications and systems
engineers and a worldwide National Instruments Alliance Partner program of
more than 600 independent consultants and integrators. Services range from
start-up assistance to turnkey system
integration. Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you want to
use our products for OEM applications. For information about special pricing and
services for OEM customers, visit ni.com/oem.
Calibration Services
NI recognizes the need to maintain properly calibrated devices for high-
accuracy measurements. We provide manual calibration procedures, services
to recalibrate your products, and automated calibration software specifically
designed for use by metrology laboratories. Visit ni.com/calibration.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair and
advance replacement services are also available. We offer extended warranties
to help you meet project life-cycle requirements. Visit ni.com/services.
n
ni.com 800 813 3693
n
National Instruments info@ni.com
©2009 National Instruments. All rights reserved. CompactRIO, DIAdem, FieldPoint, LabVIEW, National Instruments, National Instruments Alliance Partner, NI, and ni.com are trademarks of National Instruments. Other product and
company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership, or joint-venture
relationship with National Instruments. 2009-11249-161-101-D
厂商 型号 描述 页数 下载

NI

 		WSN-3280 无线传感器网络配件[ Wireless Sensor Network Accessories ] 4 页

MINI

 		WSN-4G 频率合成器[ Frequency Synthesizer ] 13 页

MINI

 		WSN-4G+ 频率合成器[ Frequency Synthesizer ] 13 页

MINI

 		WSN-4G+F96 [ PLL/Frequency Synthesis Circuit ] 13 页

NI

 		WSN-9791 无线传感器网络的以太网网关[ Wireless Sensor Network Ethernet Gateway ] 6 页

VISHAY

 		WSN0001113R0FEA [ RESISTOR, WIRE WOUND, 1 W, 1 %, 20 ppm, 113 ohm, SURFACE MOUNT, 2515, CHIP, GREEN ] 3 页

VISHAY

 		WSN0001129R0DEK [ Fixed Resistor, Wire Wound, 1W, 129ohm, 0.5% +/-Tol, 20ppm/Cel, Surface Mount, 2515, CHIP, GREEN ] 3 页

VISHAY

 		WSN0001135R0DTA [ Fixed Resistor, Wire Wound, 1W, 135ohm, 0.5% +/-Tol, 20ppm/Cel, Surface Mount, 2515, CHIP ] 3 页

VISHAY

 		WSN00011K240FEA [ RESISTOR, WIRE WOUND, 1 W, 1 %, 20 ppm, 1240 ohm, SURFACE MOUNT, 2515, CHIP, GREEN ] 3 页

VISHAY

 		WSN00011K500BEA 线绕电阻器，精密电源，表面贴装[ Wirewound Resistors, Precision Power, Surface Mount ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.209226s
