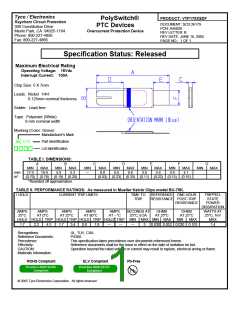

Tyco / Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
PRODUCT: VTP170XSDF
PolySwitch®
DOCUMENT: SCD 26179
PCN: A45828
REV LETTER: B
REV DATE: JUNE 16, 2005
PAGE NO.: 1 OF 1
PTC Devices
Overcurrent Protection Device
Fax: 800-227-4866
Specification Status: Released
Maximum Electrical Rating
Operating Voltage: 16Vdc
Interrupt Current: 100A
Chip Size: 5 X 7mm
Leads: Nickel 1/4H
0.125mm nominal thickness
Solder: Lead-free
Tape: Polyester (White)
8 mm nominal width
Marking:(Color: Green)
Manufacturer's Mark
Part Identification
V17
Lot Identification
TABLE I. DIMENSIONS:
A
B
C
D
E
F
G
MIN
17.9
MAX
19.9
MIN
4.9
MAX
5.3
MIN
---
MAX
0.8
MIN
6.0
MAX
8.6
MIN
3.0
MAX
5.6
MIN
3.9
MAX
4.1
MIN
MAX
mm:
in*:
(0.70) (0.78) (0.19) (0.20)
*Rounded off approximation
(0.03) (0.23) (0.33) (0.11) (0.22) (0.15) (0.16)
TABLE II. PERFORMANCE RATINGS: As measured in Mueller Kelvin Clips model BU-75K.
I HOLD
CURRENT TRIP LIMITS
TIME TO
TRIP
REFERENCE ONE-HOUR
RESISTANCE POST-TRIP
TRIPPED-
STATE
RESISTANCE
POWER
DISSIPATION
WATTS AT
25°C, 16V
MAX
AMPS
25°C
AMPS
AT 0°C
AMPS
AT 25°C
AMPS
AT 60°C
AMPS
AT --°C
SECONDS AT
25°C, 8.5A
OHMS
AT 25°C
OHMS
AT 25°C
HOLD HOLD TRIP HOLD TRIP HOLD TRIP HOLD TRIP MIN MAX MIN MAX
MIN
MAX
1.7 2.2 4.5 1.7 3.4 0.8 1.8 --- --- --- 0.030 0.052 0.030 0.105
5
1.4
Recognitions:
Reference Documents:
Precedence:
UL, TUV, CSA
PS300
This specification takes precedence over documents referenced herein.
Effectivity:
Reference documents shall be the issue in effect on the date of invitation for bid.
CAUTION:
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
Materials Information:
ROHS Compliant
ELV Compliant
Pb-Free
© 2005 Tyco Electronics Corporation. All rights reserved
