RX-5B

型号：

RX-5B

描述：

玩具车遥控器与九个功能[ TOY CAR REMOTE CONTROLLER WITH NINE FUNCTIONS ]

品牌：

SILAN[ SILAN MICROELECTRONICS JOINT-STOCK ]

页数：

9 页

PDF大小：

230 K

下载PDF手册

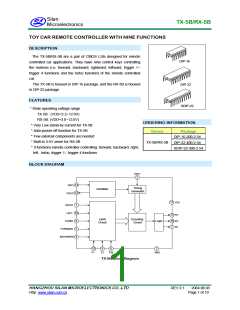

TX•5B/RX•5B
TOY CAR REMOTE CONTROLLER WITH NINE FUNCTIONS
DESCRIPTION
The TX•5B/RX•5B are a pair of CMOS LSIs designed for remo
controlled car applications. They have nine control keys controlli
the motions (i.e. forward, backward, rightward, leftward, trigger 1••
trigger 4 functions and the turbo function) of the remote control
car.
DIP•16
The TX•5B is housed in DIP•16 package, and the RX•5B is housed
in DIP•22 package.
DIP•22
FEATURES
SDIP•22
* Wide operating voltage range
TX•5B: (VDD=2.2~12.0V)
RX•5B: (VDD=3.0~12.0V)
ORDERING INFORMATION
* Very Low stand•by current for TX•5B
* Auto•power•off function for TX•5B
Device
Package
* Few external components are needed
* Built•in 3.6V zener for RX•5B
DIP•16•300•2.54
DIP•22•400•2.54
SDIP•22•300•2.54
TX•5B/RX•5B
* 9 functions remote controller controlling: forward, backward, right,
left, turbo, trigger 1•• trigger 4 functions
BLOCK DIAGRAM
TEST
2
14
13
OSCI
Timing
Generator
Oscillator
OSCO
11 VDD
RIGHT
1
LEFT 16
12 PC
10 SO
Latch
Circuit
Encoding
Circuit
TURBO
6
5
Logic
7
SC
FORWARD
BACKWARD 4
15
F1
9
8
3
F2
F34
GND
TX•5B Block Diagram
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 1 of 10
TX•5B/RX•5B
BLOCK DIAGRAM (continued)
OSCI
4
5
Timing
Generator
Oscillator
AMP
Counter
PLA
19 VDD
OSCO
Decoding
Circuit
SI
3
VO1
VI1
21
20
RIGHT
7
9
LEFT
LDB
LRTD
RDB
VT
12
13
11
10
TURBO
18
14
16
6
BACKWARD
FORWARD
Control
Logic
Latch
Circuit
F1
8
F2
F3
VI2
22
1
17
15
VO2
F4
2
GND
RX•5B Block Diagram
ABSOLUTE MAXIMUM RATINGS
Characteristics
DC Supply Voltage
Input/Output Voltage
Operating Temperature
Storage Temperature
COMMENT
Symbol
Value
Unit
V
V
DD
0.3 ~ 5.0
V ,V
IN OUT
GND•0.2V ~ V +0.2V
V
DD
T
opr
•10 ~ +60
•25~+125
°C
°C
T
stg
Never allow a stress to exceed the values listed under "Absolute Maximum Ratings", otherwise the device
would suffer from a permanent damage. Nor is a stress at the listed value be allowed to persist over a period,
since an extended exposure to the absolute maximum rating condition may also affect the reliability of the device,
if not causing a damage thereof.
ELECTRICAL CHARACTERISTICS
TX•5B
(V =9V, F =128KHz, T =25°C, unless otherwise specified.)
amb
DD
osc
Characteristics
Symbol
Min.
2.2
••
Typ.
9.0
••
Max.
12.0
1.5
1000
••
Unit
V
Operating Voltage
V
DD
Operating Current
I
mA
mA
DD
Stand•By Current
I
••
1.0
10.0
6.0
500
STB
DC O/P Driving Current(RF)
AC O/P Driving Current(IR)
AC O/P Frequency
I
I
••
mA
mA
Hz
drive
drive
••
••
F
audio
••
••
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 2 of 10
TX•5B/RX•5B
RX•5B
(V =9V, F =128KHz, T =25°C, unless otherwise specified.)
amb
DD
osc
Characteristics
Symbol
Min.
3.0
Typ.
9.0
30.0
••
Max.
12.0
••
Unit
V
Operating Voltage
V
DD
Operating Current
I
••
mA
mA
mA
••
DD
O/P Driving Current
I
5.0
••
drive
O/P Driving Current(F1,F2)
Effect Decoding Frequency Variation
I
5.0
••
••
df
F
•50%
••
50%
tolerance
PIN CONFIGURATION
PIN DESCRIPTION
TX•5B
Pin No.
Symbol
RIGHT
TEST
Description
1
2
The rightward function will be selected when this pin is connected to GND
This pin is used for testing mode
3
GND
Negative power supply
4
BACKWARD The backward function will be selected when this pin is connected to GND
FORWARD The forward function will be selected when this pin is connected to GND
5
6
TURBO
SC
The turbo function will be selected, if this pin is connected to GND
Output pin of the encoding signal with carrier frequency
F3 and F4 function select (sequential trigger)
F2 function select
7
8
F34
F2
9
10
11
12
13
14
15
16
SO
Output pin of the encoding signal without carrier frequency
Positive power supply
V
DD
PC
OSCO
OSCI
F1
Power control output pin
Oscillator output pin
Oscillator input pin
F1 function select
LEFT
The leftward function will be selected when this pin is connected to GND
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 3 of 10
TX•5B/RX•5B
RX•5B
Pin No.
Symbol
VO2
Description
Inverter 2 output pin for signal amplify
1
2
GND
Negative power supply
Input pin of the encoding signal
Oscillator input pin
3
SI
4
OSCI
5
OSCO
F1, F2,F3,F4
RIGHT
LEFT
Oscillator output pin
6,8,17,15
F1,F2,F3,F4 function output pin
Rightward output pin
7
9
Leftward output pin
Auto Shut•OFF input pin.
10
VT
If VT voltage exceeds 1.4V, all outputs shut off automatically.
Right disable pin.
11
12
13
14
16
18
19
20
21
22
RDB
LDB
Left disable pin.
LRTD
Left/right turbo disable pin
Backward output pin
BACKWARD
FORWARD
TURBO
Forward output pin
TURBO output pin
V
DD
Positive power supply
VI1
VO1
VI2
Inverter 1 input pin for signal amplify
Inverter 1 output pin for signal amplify
Inverter 2 input pin for signal amplify
FUNCTION DESCRIPTION
The TX•5B/RX•5B are a pair of CMOS LSIs designed for remote controlled car applications. The TX•5B/RX•5B
have nine control keys controlling the motions (i.e. forward, backward, rightward, leftward, and trigger1••trigger4
functions and the turbo function) of the remote controlled car.
1. OVER•CURRENT PROTECTION
An Auto Shut•Off mechanism is built•in according to Toy Safety Requirement and effective during over•current
situation in motor driver. The active high input applying to this Auto Shut•Off pin will turn off the motor. (VT pin,
when unused, has to be connected to ground. The transfer point=1.4V)
2. DATA FORMAT
F1="1"
500Hz, 3/4 duty
F0="0"
500Hz, 1/4 duty
3. CODING METHOD
3.1 When a trigger pin is triggered, its data code will correspond to the data format of "F1", while the remaining
pins will have the data format of "F0".
3.2. Data string: start code + data code +parity code + end code
Start code = F1 F1 F1 F1 F0
Data code =
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 4 of 10
TX•5B/RX•5B
F
B
T
R
L
F1
F3
F4
F2
F = Forward
B = Backward
F2 = Function2
T = Turbo
F3 = Function3
R = Right
L = Left
F1 = Function1
F4 = Function4
Parity code = for parity check
End code = for (latch data)
* Data code can be any combination of F,B,T,R,L,F1,F2,F3,F4 except for F&B, R&L, F3&F4.
OUTPUT TABLES
Output Status
Function
F
H
H
H
B
T
R
L
F1
F2
F3
F4
FORWARD
LEFT+FORWARD
H
RIGHT+FORWARD
TURBO
H
H
H
H
H
TURBO+FORWARD
TURBO+LEFT+ FORWARD
TURBO+RIGHT+FORWARD
BACKWARD
H
H
H
H
H
H
H
H
H
H
H
H
H
BACKWARD+RIGHT
BACKWARD+LEFT
TURBO+BACKWARD
TRUBO+BACKWARD+RIGHT
TURBO+BACKWARD +LEFT
LEFT
H
H
H
H
H
H
H
RIGHT
FUNCTION1
H
H
H
H
H
H
H
H
H
H
H
H
FORWARD+FUNCTION1
FORWARD+TURBO+FUNC1
TURBO+FUNC1
H
H
H
H
BACKWARD+FUNC1
BACKWARD+TURBO+FUNC1
LEFT+FORWARD+FUNC1
RIGHT+FORWARD+FUNC1
LEFT+ BACKWARD +FUNC1
RIGHT+ BACKWARD +FUNC1
LEFT+FUNCTION1
RIGHT+FUNCTION1
H
H
H
H
H
H
H
H
H
H
H
H
H
Note: (1) In the table, blank=F0. Rows from "FUNCTION1" to "RIGHT+FUNCTION1" (the last row) are similar for
FUNCTION2, FUNCTION2, FUNCTION2. Thus, we can see from the table that we have more than 50
states of function combinations from 8 control keys.
(2) H = high level.
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 5 of 10
TX•5B/RX•5B
(3) LRTD pin functions as an option pin for LEFT/RIGHT turbo disable. Please refer to the following table.
"LRTD"
HIGH (OPEN)
LOW
Key Selected
Output Function
FORWARD+LEFT (RIGHT)+ TURBO
FORWARD+LEFT (RIGHT)+ TURBO
FORWARD+LEFT (RIGHT)+ TURBO
FORWARD+LEFT (RIGHT)
TESTING CIRCUIT (Fosc for RX•5B »128KHz, Fosc for TX•5B »128KHz)
TX•5B output pin (SO) has an inverted phase with
TX•5B F34 is sequential trigger pin, it controls
RX•5B input (SI). If TX•5B&RX•5B are connected F3&F4 output at the receiver.
without using a RF module, an inverter has to be
inserted between these 2 pins, as shown below.
F34B
(TX Input)
VDD
F3
(RX Output)
11
15
VDD
VDD
VDD
SO 10
3
SI
F4
(RX Output)
TX•5B
RX•5B
connect directly
RX•5B R6, INDEX
VDD
12
9
R6
270W
180W
68W
6
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 6 of 10
TX•5B/RX•5B
TYPICAL APPLICATION CIRCUIT
Transmitter (TX•5B Fosc»128KHz)
Receiver (RX•5B Fosc»128KHz)
R5
100¡
R4
3.3K¡
R6
270¡
D1 IN4148
C15
100­F
C9
220­F
C8
47­F
C7
47­F
C3
47pF
SW
C1
10pF
R8
3.9M¡
R20
100¡
R22
100¡
T9
T7
T1
L2
L1
12V
M1
R12 330¡
R11 330¡
C10
0.1­F
R7
330¡
T6
T10
C2
MOTOR
15pF
R9
3.3K¡
C11
0.01
­F
R1
T8
T11
C12
500pF
R3
1.2K¡
R21
330¡
5.6K¡
R23
330¡
C6
0.002­F
22 21 20 19 18 17 16 15 14 13 12
R2
C5
3.3­F
C4
0.01­F
3.3K¡
VI2
VO1 VI1 VDD TURBO F3
FOR•
WARD
F4
BACK• LRTD LDB
WARD
R24
R19
220¡
10¡(1W)
R10
3.9M¡
RX•5B
0V
VO2 GND
SI
OSCI OSCO F1
RIGHT F2 LEFT
VT RDB
C17 0.1­F
R25
220¡
T3
1
2
3
4
5
6
7
8
9
10 11
T4
M2
R18 330¡
MOTOR
R13
3.3K¡
R17 330¡
R14 110K¡
fosc=128KHz
D2 IN4148
T2
T5
C13
0.002­F
C14
10­F
R15
1M¡
R16
1¡
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 7 of 10
TX•5B/RX•5B
PACKAGE OUTLINE
DIP•16•300•2.54
UNIT: mm
DIP•22•400•2.54
UNIT: mm
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 8 of 10
TX•5B/RX•5B
PACKAGE OUTLINE (Continued)
SDIP•22•300•2.54
UNIT: mm
HANDLING MOS DEVICES:
Electrostatic charges can exist in many things. All of our MOS devices are internally protected against
electrostatic discharge but they can be damaged if the following precautions are not taken:
· Persons at a work bench should be earthed via a wrist strap.
· Equipment cases should be earthed.
· All tools used during assembly, including soldering tools and solder baths, must be earthed.
· MOS devices should be packed for dispatch in antistatic/conductive containers.
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:2.1
2004.08.03
:
Http www.silan.com.cn
Page 9 of 10
厂商 型号 描述 页数 下载

RECOM

 		RX-0505D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0505D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0509D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0512D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0512D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.225267s
