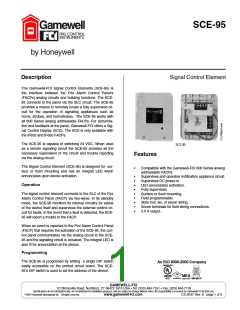

SCE-95
Description
Signal Control Element
The Gamewell-FCI Signal Control Elements (SCE-95) is
the interface between the Fire Alarm Control Panel's
(FACPs) analog circuits and building functions. The SCE-
95 connects to the panel via the SLC circuit. The SCE-95
provides a means to remotely locate a fully supervised cir-
cuit for the operation of signaling appliances such as
horns, strobes, and horn/strobes. The SCE-95 works with
all 600 Series analog addressable FACPs. For annuncia-
tion and feedback at the panel, Gamewell-FCI offers a Sig-
nal Control Display (SCD). The SCD is only available with
the IF632 and IF650 FACPs.
The SCE-95 is capable of switching 24 VDC. When used
as a remote signaling circuit the SCE-95 provides all the
necessary supervision of the circuit and trouble reporting
via the analog circuit.
SCE-95
Features
The Signal Control Element (SCE-95) is designed for sur-
face or flush mounting and has an integral LED which
annunciates upon device activation.
•
Compatible with the Gamewell-FCI 600 Series analog
addressable FACPs.
Supervises and operates notification appliance circuit.
Supervises DC power-in.
LED annunciates activation.
Fully supervised.
Surface or flush mounting.
•
•
•
•
•
•
•
•
•
Operation
The signal control element connects to the SLC of the Fire
Alarm Control Panel (FACP) via two-wires. In its standby
mode, the SCE-95 monitors its internal circuitry for status
of the device itself and supervises the external control cir-
cuit for faults. In the event that a fault is detected, the SCE-
95 will report a trouble to the FACP.
Field programmable.
Style four, six, or seven wiring.
Screw terminals for field wiring connections.
2.0 A output..
When an event is reported to the Fire Alarm Control Panel
(FACP) that requires the activation of the SCE-95, the con-
trol panel communicates via the analog circuit to the SCE-
95 and the signaling circuit is actuated. The integral LED is
also lit for annunciation at the device.
Programming
The SCE-95 is programed by setting a single DIP switch
easily accessible on the printed circuit board. The SCE-
95’s DIP switch is used to set the address of the device.
An ISO 9000-2000 Company
SIGNALING
FM
MEA
APPROVED
S521
Approved 7300-1288:147
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472-1610 USA • Tel: (203) 484-7161 • Fax: (203) 484-7118
©2007 Honeywell International Inc. All rights reserved.
Specifications are for information only, are not intended for installation pwurpwoswes,.ganadmareeswubejecllt-tofcchia.cngoemwithout notice. No responsibility is assumed by Gamewell-FCI for their use.
CS-2047 Rev. A page 1 of 2
