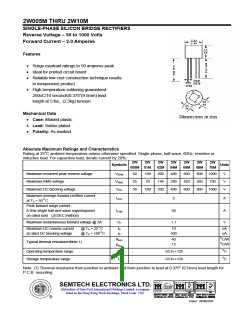

2W005M THRU 2W10M
SINGLE-PHASE SILICON BRIDGE RECTIFIERS
Reverse Voltage – 50 to 1000 Volts
Forward Current – 2.0 Amperes
Features
• Surge overload ratings to 50 amperes peak
• Ideal for printed circuit board
• Reliable low cost construction technique results
in inexpensive product
• High temperature soldering guaranteed:
250oC/10 seconds/0.375”(9.5mm) lead
length at 5 lbs., (2.3kg) tension.
Mechanical Data
• Case: Molded plastic
• Lead: Solder plated
• Polarity: As marked
Absolute Maximum Ratings and Characteristics
Rating at 25oC ambient temperature unless otherwise specified. Single-phase, half wave, 60Hz, resistive or
inductive load. For capacitive load, derate current by 20%.
2W
2W
2W
2W
2W
2W
2W
Symbols
Units
005M 01M
02M
04M
06M
08M
10M
Maximum recurrent peak reverse voltage
Maximum RMS voltage
VRRM
VRMS
VDC
50
35
50
100
70
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
V
V
V
Maximum DC blocking voltage
100
1000
Maximum average forward rectified current
at TA = 50 OC
I(AV)
2
A
Peak forward surge current ,
8.3ms single half sine-wave superimposed
on rated load (JEDEC method)
IFSM
50
A
V
Maximum instantaneous forward voltage @ 2A
VF
1.1
Maximum DC reverse current
at rated DC blocking voltage
@ TA = 25 OC
@ TA = 100 OC
IR
IR
10
uA
uA
500
RθJA
RθJL
40
15
OC/W
OC/W
Typical thermal resistance(Note 1)
Operating temperature range
Storage temperature range
TJ
-55 to +125
-55 to +150
OC
OC
TS
Note: (1) Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead length for
P.C.B. mounting.
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 26/09/2003
