09SR-3S

型号:

09SR-3S

描述:

可拆卸式绝缘位移连接[ Disconnectable Insulation displacement connectors ]

品牌:

ETC[ ETC ]

页数:

3 页

PDF大小:

74 K

Emboss Tape
IDC

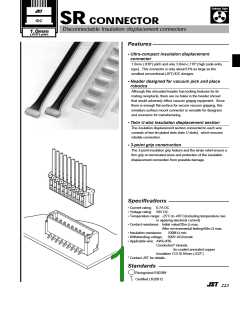

SR CO N N ECTO R
Disconnectable Insulation displacement connectors
1 .0 m m
(.0 3 9 ") p itch
Features ––––––––––––––––––––––––
Ultra-compact insulation displacement
connector
1.0mm (.039") pitch and only 3.0mm (.118") high (side entry
type). This connector is only about 61% as large as the
smallest conventional (JST) IDC designs.
Header designed for vacuum pick and place
robotics
Although this shrouded header has locking features for its
mating receptacle, there are no holes in the header shroud
that would adversely effect vacuum grippig equipment. Since
there is enough flat surface for secure vacuum gripping, this
miniature surface mount connector is versatile for designers
and economic for manufacturing.
Twin U-slot insulation displacement section
The insulation displacement section connected to each wire
consists of two tin-plated slots (twin U-slots), which ensures
reliable connection.
3-point grip construction
The 3-point insulation grip feature and the strain relief ensure a
firm grip on terminated wires and protection of the insulation
displacement connection from possible damage.
JST
9
Specifications –––––––––––––––––––
Current rating: 0.7A DC
Voltage rating: 50V DC
Temperature range: -25˚C to +85˚C(including temperature rise
in applying electrical current)
Contact resistance: Initial value/20m max.
After environmental testing/40m max.
Insulation resistance:
100M min.
Withstanding voltage: 500V AC/minute
Applicable wire: AWG #30
Conductor/7 strands,
tin-coated annealed copper
Insulation O.D./0.56mm (.022")
* Contact JST for details.
Standards ––––––––––––––––––––––
Recognized E60389
0
Certified LR20812
1
223
SR CO N N ECTO R
Receptacle–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Dimensions mm(in.)
Cir-
cuits
Model No.
Q
ty / box
A
B
2
3
3.0(.118)
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
14.0(.551)
15.0(.591)
3,000
3,000
3,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
02SR-3S
03SR-3S
04SR-3S
05SR-3S
06SR-3S
07SR-3S
08SR-3S
09SR-3S
10SR-3S
11SR-3S
12SR-3S
13SR-3S
14SR-3S
1.0(.039)
2.0(.079)
3.0(.118)
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
2.45(.097)
B
4
5
6
7
8
9
10
11
12
13
14
1.0
(.039)
A
2.1(.083)
Material and Finish
Contact: Phosphor bronze, tin-plated
Housing: Polyamide 66, UL94V-0, natural (ivory)
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Dimensions mm(in.)
Q'ty / reel
Side entry type
Cir-
cuits
Side
entry
type
Top
entry
type
Top entry
type
Side entry
type
A
B
B
2
3
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
14.0(.551)
15.0(.591)
16.0(.630)
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
BM02B-SRSS-TB SM02B-SRSS-TB
BM03B-SRSS-TB SM03B-SRSS-TB
BM04B-SRSS-TB SM04B-SRSS-TB
BM05B-SRSS-TB SM05B-SRSS-TB
BM06B-SRSS-TB SM06B-SRSS-TB
BM07B-SRSS-TB SM07B-S RSS-TB
BM08B-SRSS-TB SM08B-SRSS-TB
BM09B-SRSS-TB SM09B-SRSS-TB
BM10B-SRSS-TB SM10B-SRSS-TB
BM11B-SRSS-TB SM11B-SRSS-TB
BM12B-SRSS-TB SM12B-SRSS-TB
BM13B-SRSS-TB SM13B-SRSS-TB
BM14B-SRSS-TB SM14B-SRSS-TB
1.0(.039)
2.0(.079)
3.0(.118)
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
4
1.5
(.059)
1.0
(.039)
5
A
4.25(.167)
0.7(.028)
6
7
8
Top entry type
9
B
10
11
12
13
14
1.5
(.059)
1.0
(.039)
Material and Finish
A
0.7(.028)
2.9(.114)
Contact: Copper alloy, copper-undercoated, tin/lead plated
Wafer: Polyamide, UL94V-0, natural (ivory)
Solder tab: Brass, copper-undercoated, tin/lead plated
Note: 1. The products listed above are supplied on embossed-tape.
2. Contact JST for the top entry type headers with suction cap.
PC board layout (viewed from component side) and Assembly layout ––––––––––––––––––
Top entry type
2.9(.114)
Side entry type
1.0 ± 0.05
(.039 ± .002)
0.6 ± 0.05
(.024 ± .002)
1.0 ± 0.05
(.039 ± .002)
0.6 ± 0.05
(.024 ± .002)
4.85(.191)
0.7 ± 0.1
1.2 ± 0.1
(.028 ± .004) (.047 ± .004)
Shrouded header
0.7 ± 0.1
1.2 ± 0.1
Shrouded header
(.028 ± .004) (.047 ± .004)
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Dimensions above should serve as a guideline. Contact JST for details.
224
SR CO N N ECTO R
Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Feeding direction
Carrier tape
Cover tape leader area
Lead tape
(Unloaded area)
20 vacancies min.
13.0(.512)dia.
Tail tape
(Unloaded area)
40(1.575) min.
W1+2.5
-
1.0
+.098
.039
2.0 ± 0.5
(.079 ± .002)
Connector
loaded area
400(15.748) min.
(W1
-
)
Top entry type
Side entry type
Feeding direction
Feeding direction
2.0±0.1
(.079±.004)
4.0±0.1
(.157±.004)
2.0 ± 0.1
(.079 ± .004)
4.0 ± 0.1
(.157 ± .004)
1.55±0.05
1.55 ± 0.05
(.061 ± .002)dia.
(.061±.002)dia.
Cover tape
Cover tape
Carrier tape
Carrier tape
0.38±0.05
(.015±.002)
0.38 ± 0.05
(.015 ± .002)
12±0.1
(.315±.004)
4.55
(.179)
8.0 ± 0.1
(.315 ± .004)
3.25
(.128)
Taping dimensions mm(in.)
S
Reel dimensions mm(in.)
W1
Q'ty / reel
F
W
Cir-
cuits
Side
entry
type
Top
entry
type
Side
entry
type
Top
entry
type
Side
entry
type
Top
entry
type
Side
entry
type
Top
entry
type
Side
entry
type
Top
entry
type
2 to 3
4
5.5(.217)
7.5(.295)
7.5(.295)
11.5(.453)
11.5(.453)
5.5(.217)
5.5(.217)
7.5(.295)
7.5(.295)
11.5(.453)
4.75(.187)
6.75(.266)
6.75(.266)
10.75(.423)
10.75(.423)
4.75(.187)
4.75(.187)
6.75(.266)
6.75(.266)
10.75(.423)
12(.472)
16(.630)
16(.630)
24(.945)
24(.945)
12(.472)
12(.472)
16(.630)
16(.630)
24(.945)
13.5(.531)
17.5(.689)
17.5(.689)
25.5(1.004)
25.5(1.004)
13.5(.531)
13.5(.531)
17.5(.689)
17.5(.689)
25.5(1.004)
1,500
1,500
1,500
1,500
1,500
3,000
3,000
3,000
3,000
3,000
5 to 7
8
9 to 14
Note:
1. Specifications conform to JIS C 0806. The tape width, connector recess hole dimensions, etc. are determined by the number of circuits and external shape of
the connector to be loaded.
2. Specifications are subject to change without prior notice.
225
