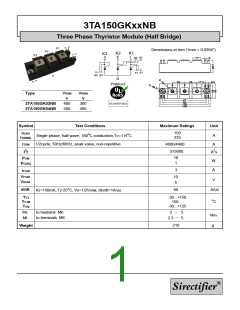

3TA150GKxxNB
Three Phase Thyristor Module (Half Bridge)
Symbol
Test Conditions
at VDRM, single phase, half wave, Tj=150oC
On-State Current 450A, Tj=25oC Inst. measurement
Tj=25oC, IT=1A, VD=6V
Unit
min.
typ.
max.
IDRM
IRRM
30
30
mA
VTM
1.25
V
mA
150
IGT
Tj=150oC, VD=1/2VDRM
V
0.25
VGD
IT=100A, IG=200mA, Tj=25oC, VD=1/2VDRM, dIG/dt=1A/us
Tj=150oC, VD=2/3VDRM, Exponential wave
Tj=25oC
tgt
10
us
V/us
mA
150
dv/dt
IH
100
oC/W
Junction to case (1/3 Module)
RthJC
0.16
FEATURES
* International standard package
APPLICATIONS
ADVANTAGES
* Welding Machine Power Supply * Space and weight savings
* Copper
* Glass passivated chips
* RoHS compliance
* DC Power Supply
* Simple mounting with two screws
* Improved temperature and power
cycling
base plate
* Reduced protection circuits
