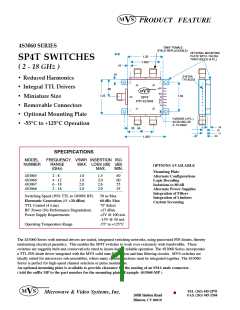

4S3060 SERIES
"SMA" FEMALE
(FIELD REPLACEABLE)
OPTIONAL MOUNTING
PLATE WITH .104 DIA
THRU HOLES (4 PL.)
1.25
SP4T SWITCHES
1.050
.10
( 2 - 18 GHz )
.10
.018 DIA
7 PLACES
• Reduced Harmonics
• Integral TTL Drivers
• Miniature Size
J4
J3
+5V
E3
G
E2
E1
-V
.62
M
V
S
1.25
1.05
JO
SP4T
P/N 4S3068
• Removable Connectors
• Optional Mounting Plate
• -55°C to +125°C Operation
J1
J2
FARSIDE (4 PL.)
#2-56 UNC-2B
X .10 DEEP
.18
.10
.11
.35
.90
1.450
.23
SPECIFICATIONS
MODEL
NUMBER
FREQUENCY VSWR INSERTION ISO.
RANGE
(GHz)
MAX. LOSS (dB) (dB)
OPTIONS AVAILABLE
MAX.
MIN.
Mounting Plate
Alternate Configurations
Logic Decoding
Isolations to 80 dB
Alternate Power Supplies
Integration of Filters
Integration of Limiters
Custom Screening
4S3065
4S3066
4S3067
4S3068
2 - 8
1.8
1.8
2.0
2.0
1.5
2.0
2.6
2.9
60
60
55
55
4 - 12
6 - 18
2 - 18
Switching Speed (50% TTL to 10/90% RF)
Harmonic Generation (@ +20 dBm)
TTL Control (4 Line)
50 ns Max
60 dBc Max
"0" Select
RF Power (No Performance Degradation)
Power Supply Requirements
+27 dBm
+5V @ 100 mA
-15V @ 50 mA
-55° to +125°C
Operating Temperature Range
The 4S3060 Series with internal drivers are sealed, integrated switching networks, using passivated PIN diodes, thereby
minimizing electrical parasitics. This enables the SP4T switches to work over extremely wide bandwidths. These
switches are ruggedly built and conservatively rated to insure highly reliable operation. The 4S3060 Series incorporates
a TTL PIN diode driver integrated with the MVS solid state RF section and bias filtering circuits. MVS switches are
ideally suited for microwave sub-assemblies, where many system functions must be integrated together. The 4S3060
Series is perfect for high-speed channel selection or pulse modulation.
An optional mounting plate is available to provide clearance for the mating of an SMA male connector.
(Add the suffix MP to the part number for the mounting plate. Example 4S3068-MP )
