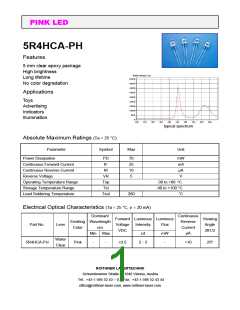

PINK LED
5R4HCA-PH
Features
5 mm clear epoxy package
High brightness
Long lifetime
No color degradation
Applications
Toys
Advertising
Indicators
Illumination
typical spectrum
Absolute Maximum Ratings (Ta = 25 °C)
Parameter
Power Dissipation
Symbol
Max
Unit
PD
IF
70
25
10
5
mW
mA
µA
V
Continuous Forward Current
Continuous Reverse Current
Reverse Voltage
IR
VR
Top
Tst
Tsol
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
-30 to +80 °C
-40 to +100 °C
°C
260
Electrical Optical Characteristics (Ta = 25 °C, IF = 20 mA)
Dominant
Continuous
Forward Luminous Luminous
Viewing
Angle
Emitting Wavelength
Reverse
Current
µA
Part No.
Lens
Voltage
VDC
Intensity
Flux
mW
-
Color
nm
2θ1/2
Min Max
cd
Water
Clear
5R4HCA-PH
Pink
-
-
≤3.5
2 - 3
<10
25º
ROITHNER LASERTECHNIK
Schoenbrunner Straße 7, 1040 Vienna, Austria
Tel.: +43-1-586 52 43 – 0, Fax.: +43-1-586 52 43 44
office@roithner-laser.com, www.roithner-laser.com
