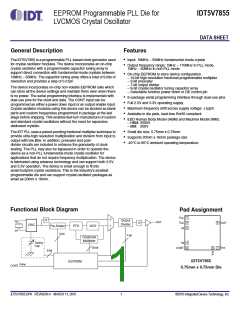

EEPROM Programmable PLL Die for
LVCMOS Crystal Oscillator
IDT5V7855
DATA SHEET
General Description
Features
The IDT5V7855 is a programmable PLL-based clock generator used
for crystal oscillator modules. The device incorporates an on-chip
crystal oscillator with a programmable capacitor tuning array to
support direct connection with fundamental-mode crystals between
16MHz – 50MHz. The capacitor tuning array offers a total of 9 bits of
resolution and provides a step of 0.01pF.
• Input: 16MHz – 50MHz fundamental mode crystal
• Output frequency range: 1MHz – 170MHz in PLL mode,
1MHz – 50MHz in non-PLL mode
• On-chip EEPROM to store device configuration
– 19-bit high-resolution fractional programmable multiplier
– 3-bit prescaler
– 7-bit output divider
– 9-bit crystal oscillator tuning capacitor array
– Selectable function power down or OE control pin
The device incorporates on-chip non-volatile EEPROM cells which
can store all the device settings and maintain them even when there
is no power. The serial programming interface is implemented with
dual-use pins for the clock and data. The CONT input can be
programmed as either a power down input or an output enable input.
Crystal oscillator modules using this device can be stocked as blank
parts and custom frequencies programmed in package at the last
stage before shipping. This enables fast-turn manufacture of custom
and standard crystal oscillators without the need for expensive
dedicated crystals.
• In-package serial programming interface through dual-use pins
• Full 2.5V and 3.3V operating supply
• Maximum frequency shift across supply voltage: 1ppm
• Available in die pack, lead-free RoHS compliant
• ESD Human Body Model (HBM) and Machine Model (MM):
– HBM: 2000V
– MM: 200V
The IDT PLL uses a patent-pending fractional multiplier technique to
provide ultra-high resolution multiplication and division from input to
output with low jitter. In addition, prescaler and post-
• Small die size: 0.75mm x 0.75mm
• Supports 20mm x 16mm package size
• -40°C to 85°C ambient operating temperature
divider circuits are included to enhance the granularity of clock
scaling. The PLL may also be bypassed in order to operate the
device as a non-PLL fundamental-mode crystal oscillator for
applications that do not require frequency multiplication. The device
is fabricated using advance technology and can support both 2.5V
and 3.3V operation. The device is small enough to fit into
small-footprint crystal oscillators. This is the industry’s smallest
programmable die and can support crystal oscillator packages as
small as 20mm x 16mm.
Functional Block Diagram
Pad Assignment
VDD
1
2
3
0
1
x2
Output
Divider
xg
OUT
VDD
÷2
8
OUT
OSC
PFD
VCO
Pre-Scaler
3-bit
xd
xd
7-bit
Fractional
Multiplier
xg
Tuning
Cap
4
5
19-bit
VSS
CONT
6
7
9-bit
EEPROM
IDT5V7855
Pullup
CONT
0.75mm x 0.75mm Die
IDT5V7855-DPK REVISION A MARCH 11, 2010
1
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Table 1. Pad Descriptions
Number
1, 2
Name
VDD
Type
Description
Power
Input
Power supply pins. Both pads must be bonded.
3, 4
xd, xg
Crystal oscillator interface. xg is the input. xd is the output.
Programmable to function as power down or output enable. Serves as VPP and data
input during programming mode.
5
CONT
Input
Pullup
Power supply ground. Only one pad should be bonded. Either pad can be used to
accommodate optimal bond wire placement
6, 7
8
VSS
Power
I/O
OUT
Single-ended clock output. Serves as clock input during programming mode.
NOTE: Pullup refers to internal input resistor.
Table 2. Pad Characteristics
Symbol
Parameter
Test Conditions
Minimum
Typical
51
Maximum
Units
kΩ
Ω
RPULLUP
Input Pullup Resistor
VDD = 3.3V
25
ROUT
Output Impedance
VDD = 2.5V
37
Ω
IDT5V7855-DPK REVISION A MARCH 11, 2010
2
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Functional Description
The output frequency of the IDT5V7855 is determined by the crystal
frequency and the three programmable divider/multiplier registers:
Prescaler (P), Fractional Multiplier (M), and Output Divider (D). The
prescaler (P) is a 3-bit integer register while the output divider (D) is
a 7-bit integer register. The fractional multiplier (M) is a 19-bit register
and has the feature of a fractional component in addition to the
integer value. This allows the IDT5V7855 to be programmed to a
wide variety of output frequencies from a single input crystal
frequency.
Table 3A. Prescaler Table
Crystal Range
(MHz)
Prescaler
(P)
Phase Detector Frequency
(MHz)
16 – 50
16 – 50
1
2
3
4
5
6
7
16 – 50
8 – 25
16 – 50
5.3333 – 16.6667
5.3125 – 12.5
5.3125 – 10
21.25 – 50
26.5625 – 50
31.875 – 50
37.1875 – 50
5.3125 – 8.3333
5.3125 – 7.1429
Figure 1. Simplified Block Diagram
Fractional Multiplier (M)
The actual values which may be programmed into the various
registers depend on the specified operational ranges of some of the
PLL components such as the VCO and crystal oscillator. As shown
in tables 5 and 6A, these ranges are:
The Fractional Multiplier (M) is a 19-bit register. The operational
range of the fractional multiplier is 3.4 to approximately 32 (actually
31.99993896). The decimal multiplier value obtained from the 19-bit
fractional multiplier register can be determined as:
VCO Range: 170MHz to 340MHz
XTAL Oscillator Range: 16MHz to 50MHz
MBIN
MDEC = ----------------
16384
The minimum value permitted for the feedback register is a function
of the minimum VCO frequency and the maximum phase detector
reference frequency. The maximum phase detector reference
frequency is set by the maximum crystal frequency (50MHz) divided
by the minimum prescaler divider (1) and is therefore 50MHz. The
feedback fractional multiplier register operational range can be
determined as:
MDEC is the fractional multiplier (decimal) value
MBIN is the value programmed in the 19-bit register
The fractional portion of the fractional multiplier allows a
programming frequency resolution to 61/MDEC ppm. Note that higher
MDEC values will produce lower ppm error.
M Min: 170MHz ÷ 50MHz = 3.4
M Max: 31.9993896 ≈ 32
The maximum value that can be programmed into the fractional
multiplier (all 19 bits “1”) is approximately 32 (actual value is
31.99993896).
Examples:
For a fractional multiplier register MBIN of
1010101000000000000 binary
Given the VCO range and the feedback divider range, the minimum
phase detector frequency can be determined from the minimum VCO
frequency and the maximum feedback divider as:
348160
16384
MDEC = ------------------- = 21.2500
Phase Detector Min: 170MHz ÷ 32 = 5.3125MHz
Phase Detector Max: 50MHz
The ppm resolution (single LSB bit change in the MBIN) for this setting
is:
The maximum value is set by the specified maximum crystal
frequency.
61ppm
21.25
------------------ = 2.9ppm
For a fractional multiplier register MBIN of
0010101010000000000 binary
Prescaler (P)
87040
The Prescaler (P) divides down the input crystal frequency prior to
the internal phase detector. The prescaler register is a 3-bit register
so the possible values which may be programmed are 1 through 7.
MDEC = ---------------- = 5. 312 5
16384
The ppm resolution (single LSB bit change in the MBIN) for this setting
is:
The specified input crystal frequency range is: 16MHz to 50MHz and
the phase detector range is: 5.3125MHz to 50MHz. So the possible
settings and ranges are:
61ppm
------------------ = 11.5ppm
5.3125
IDT5V7855-DPK REVISION A MARCH 11, 2010
3
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Output Divider (D)
The Output Divider register is a 7-bit register so the possible values
which may be programmed are 1 through 127. Combining the
information from the three registers, including the final output divider
and the crystal frequency, the output frequency may be derived.
Using table 3B, identify the crystal frequency from the given ranges
and select the associated prescaler (P) value. The phase detector
frequency is then calculated as:
FXTAL
----------------
=
FPHASE – DET
The actual frequency produced from a given crystal frequency may
be determined as:
P
Table 3B. Crystal Range Table
MDEC
P x(D x 2)
FOUT = (FXTAL) x --------------------------
Crystal Range
(MHz)
Prescaler (P)
Phase Detector
Frequency (MHz)
FOUT
is the output frequency
16 – 50
16 – 50
1
2
3
4
5
6
16 – 50
8 – 25
FXTAL is the Crystal Frequency
P
D
is the Prescaler Value
is the Output Divider Value
16 – 50
5.3333 – 16.6667
5.3125 – 12.5
5.3125 – 10
5.3125 – 8.3333
MDEC is the Fractional Divider (decimal) Value
21.25 – 50
26.5625 – 50
31.875 – 50
Fine Frequency Adjustment
The IDT5V7855 also has a fine frequency adjustment capability
utilizing adjustable tuning capacitors in the crystal oscillator. These
capacitors are set through a tuning capacitor register which is a 9-bit
register and the resolution of the tuning capacitance is approximately
0.01pF per bit. The frequency ppm tuning performance can be found
by:
Identify the range(s) that match the desired output frequency and
select the associated Output Divider (D) value. The VCO frequency
is then calculated as:
FVCO = (FOUT x D x 2)
C1
2
1
1
6
FREQ(ppm) = -------x ----------------------------------------------------------------- –
x10 ppm
---------------------
Table 3C. FVCO Table
C0 + CL +CSTEP x TREG
C0 + CL
Output Frequency Range
(MHz) FOUT
VCO
C1
C0
CL
is the Crystal Motional Capacitance
is the Crystal Shunt Capacitance
Output Divider Frequency
(D)
(MHz)
is the Inherent (parasitic) Load Capacitance
85.0000 – 170.0000
42.5000 – 85.0000
28.3333 – 56.6667
21.2500 – 42.5000
17.0000 – 34.0000
14.1667 – 28.3333
• • •
1
170 – 340
170 – 340
170 – 340
170 – 340
170 – 340
170 – 340
• • •
CSTEP is the Tuning Capacitance Resolution 0.01pF
TREG is the Tuning Capacitor Register Value from 0 to 511
2
3
4
Determining the Appropriate Register Settings
A typical use for this type of device is generating virtually any
frequency between 1MHz to 170MHz from a single crystal frequency
value. The steps required to accomplish this are:
5
6
• • •
125
126
127
1. Determine the crystal frequency.
0.6800 – 1.3600 (NOTE)
0.6746 – 1.3492 (NOTE)
0.6693 – 1.3386 (NOTE)
170 – 340
170 – 340
170 – 340
2. Determine the desired output frequency.
3. Determine the proper prescaler value using the crystal
frequency and the associated phase detector frequency.
4. Determine the proper output divider using the desired
output frequency to optimize the internal VCO frequency.
NOTE: The specified minimum output frequency is 1MHz. While
output frequencies less than 1MHz are possible, specified device
performance is not guaranteed.
5. Determine the appropriate fractional multiplier value using
the phase detector frequency and the VCO frequency.
6. Determine the MBIN value by multiplying the MDEC value
by 16384.
IDT5V7855-DPK REVISION A MARCH 11, 2010
4
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
The fractional multiplier is determined from the phase detector
frequency and the VCO frequency using the following equations.
3. The fractional multiplier is calculated as the VCO frequency
divided by the phase detector frequency. So, for the
possible combinations identified, the resulting fractional
multiplier could be one of nine possibilities.
Calculate the fractional multiplier decimal value:
FVCO
MDEC = -----------------------------------
FPHASE – DET
Table 3D. Fractional Multiplier Table
P = 1
FPHASE_DET
(48MHz)
P = 2
FPHASE_DET
(24MHz)
P = 3
FPHASE_DET
(16MHz)
Calculate the fractional multiplier register binary value:
M
BIN = MDEC x 16384
200MHz
200MHz
200MHz
16MHz
12.5
D = 4
FVCO
200MHz
MDEC = ---------------------- MDEC= ---------------------- MDEC = ----------------------
48MHz
4.16666
250MHz
24MHz
8.33333
250MHz
=
Example 1:
The crystal frequency is 27MHz and the desired output frequency is
166.66667MHz.
250MHz
16MHz
15.625
D = 5
FVCO
250MHz
MDEC = ---------------------- MDEC= ---------------------- MDEC = ----------------------
48MHz
5.20833
300MHz
24MHz
=
1. With a crystal frequency of 27MHz, the appropriate
prescaler value is 1 and the associated phase detector
frequency would be: 27MHz ÷ 1 = 27MHz.
10.41666
300MHz
24MHz
12.5
300MHz
16MHz
18.75
D = 6
FVCO
300MHz
MDEC = ---------------------- MDEC = ---------------------- MDEC= ----------------------
48MHz
6.5
=
2. For an output frequency of 166.6667MHz, the output
divider which can be used with a VCO frequency in the proper
170MHz to 340MHz range is 1, and the resulting
VCO frequency is: 166.6667MHz x 1 x 2 = 333.33MHz.
4. With the different MDEC values to choose from, how does
one select the ‘best’ value? In general, selecting a fractional
value which reduces the ppm error is the first selection
criteria. This applies to MDEC values which have the fewest
non-zero decimal places or MDEC values which have large
integer values. This criteria would eliminate the
3. The fractional multiplier is calculated as the VCO frequency
divided by the phase detector frequency or
333.33MHz ÷ 27MHz = 12.345679.
4. The MBIN is found by 12.345679 x 16384 = 202271.6 and is
rounded to 202272.
MDEC = 4.16666, 5.208333, 8.33333, and 10.4166666
options. After the ppm error selection is made and if there are
still other options, generally the higher VCO frequency will
provide better performance. In this example, the higher VCO
frequency corresponds with D = 6 and the associated P and
MDEC values of 1 and 6.25, 2 and 12.5, or 3 and 18.75. Lastly,
the higher phase detector frequency generally provides better
performance. So for this example, the condition of P = 1,
MDEC = 6.25, and D = 6 would be the preferred choice.
5. Due to the rounding, the actual MDEC value will be 12.3457
and the actual output frequency will be:
MDEC
12.3457
1x1 x 2
FOUT = FXTAL x -------------------------- = 27MHz x ---------------------
P x(D x 2)
FOUT = 166.66699MHz
(NOTE: This is an error of only 1.94ppm.)
5. The MBIN is found by: 6.25 x 16384 = 102400. (No rounding is
necessary.)
Example 2:
The starting crystal frequency is 48MHz and the desired output
frequency is 25MHz.
6. Verifying the values
MDEC
1. With a starting crystal frequency of 48MHz, the appropriate
prescaler value can be either 1, 2 or 3 and the associated
phase detector frequency would be either:
48MHz ÷ 1 = 484MHz,
12.5
2 x6 x 2
FOUT = FXTAL x -------------------------- = 48MHz x ---------------------
P x(D x 2)
48MHz ÷ 2 = 24MHz or,
48MHz ÷ 3 = 16MHz.
2. For an output frequency of 25MHz, the output dividers
which can be used with a VCO frequency in the proper
170MHz to 340MHz range are: 4, 5, or 6, and the resulting
VCO frequencies is: 200MHz, 250MHz, or 300MHz.
IDT5V7855-DPK REVISION A MARCH 11, 2010
5
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Programming Instructions
The IDT5V7855 registers, along with some control functions, are
written and the EEPROM burned through a serial write using the
CONT and OUT pins. During the programming the CONT pin
functions as a Data input while the OUT pin functions as a Clock
input. The data registers are not addressed individually but are all
written sequentially with the most significant bit first. All registers
must be written when programming the device. The order of registers
/ control bits and the number of bits per register are:
9 bits
19 bits
3 bits
3 bits
1 bit
Tuning Capacitor Register T[8:0]
Fractional Multiplier Register M[18:0]
Prescaler Register P[2:0]
Factory Test Mode Register F[2:0]
PLL Bypass Mode (0 = crystal oscillator connected directly to output divider, 1 = PLL used)
Power Down Control (0 = CONT acts as an output enable, 1 = CONT acts as power down)
Output Enable Type (0 = synchronous output enable, 1 = asynchronous output enable)
Output Divider Register D[6:0]
1 bit
1 bit
7 bits
Table 3E. Register Table
Register
Name
Tuning
Capacitor
Fractional
Multiplier
Prescaler
(P)
Factory Test
Mode
PLL
Mode
Power Down OutputEnable
Output
Divider
Control
Control
# of Bits
Symbol
9-bit
19-bit
3-bit
3-bit
1-bit
1-bit
1-bit
7-bit
T[8:0]
M[18:0]
P[2:0]
F[2:0]
D[6:0]
IDT5V7855-DPK REVISION A MARCH 11, 2010
6
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
The procedure to program the registers and control bits without writing to the EEPROM is as follows:
1.
2.
3.
4.
Set CONT and OUT to 0.0 volts with no power applied.
Apply power, wait for 1ms.
Apply four clock pulses on OUT to enter serial programming mode (see timing diagram below).
Enter serial data (bit order as described above) via the CONT pin, with a positive pulse on OUT pin for each data bit.
NOTE: CONT must only change while OUT is LOW to write the data properly.
5.
To activate the registers and exit serial programming mode, while OUT is held LOW, set CONT HIGH.
After 1µs with CONT still HIGH, set OUT HIGH. After 1µs with OUT still HIGH, set CONT LOW.
6.
7.
Remove the programming voltage from OUT pin.
Enable the output by setting CONT HIGH.
Figure 2. Timing Diagram
3F. Timing/Voltage Requirements Table
Symbol
Parameter
Minimum
Maximum
Units
ms
µs
ts
td
Enter Serial Data Mode
Data & Clock Timing
Supply Voltage
1
1
VDD
2.2
3.6
V
IDT5V7855-DPK REVISION A MARCH 11, 2010
7
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
The procedure to program the registers and control bits and write the data to the EEPROM is as follows:
1.
2.
3.
4.
5.
Set CONT and OUT to 0.0 volts with no power applied.
Apply power, wait for 1ms.
Apply four clock pulses to OUT to enter serial programming mode (see timing diagram below).
Wait 1ms.
Apply EEPROM programming pulse (12V) on CONT to erase EEPROM.
[WARNING: Do not apply High Voltage Programming pulse prior to entering serial mode.]
6.
7.
Wait 1ms.
Enter serial data (bit order as described above) via the CONT pin, with a positive pulse on OUT pin for each data bit.
NOTE: CONT must only change while OUT is LOW to write the data properly.
8.
Complete the serial write with a Stop Bit set to 0.
9.
Wait 1ms
10.
11.
While OUT is held LOW, apply EEPROM programming pulse (12V) to CONT to store the data in EEPROM.
Remove power from the device.
Figure 3. Timing Diagram
3G. Timing/Voltage Requirements Table
Symbol
ts
Parameter
Test Conditions
Minimum
Maximum
Units
ms
µs
Enter Serial Data Mode
Data & Clock Timing
1
1
td
tp
Programming EEPROM Timing
Rise/Fall Time of VPP
Supply Voltage; NOTE
Programming EEPROM Voltage
100
110
5
ms
ms
V
tR / tF
VDD
VPP
10% - 90%
2.2
3.6
12.5
11.5
V
NOTE: The supply voltage on VDD must be able to sink at least 2mA when VPP is applied to CONT to ensure transient currents are safely
absorbed. Alternatively, a 1kΩ resistor may be connected between VDD and GND during programming.
IDT5V7855-DPK REVISION A MARCH 11, 2010
8
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VDD
Inputs/Outputs, VI / VO; NOTE
Storage Temperature, TSTG
4.6V
-0.5V to VDD + 0.5V
-65°C to 150°C
NOTE: 12.5V can be applied to the CONT pin during serial programming mode only after applying four clock pulses to the OUT pin.
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VDD = 2.3V to 3.6V, TA = -40°C to 85°C
Symbol Parameter
VDD Power Supply Voltage
Test Conditions
Minimum
Typical
Maximum
Units
V
2.3
3.0
3.6
6
No Load
No Load
PWRDN
f
OUT = 50MHz, Non-PLL mode
fOUT = 170MHz, PLL mode
Power-Down Mode
mA
mA
µA
IDD
Power Supply Current
15
40
Table 4B. LVCMOS/LVTTL DC Characteristics, VDD = 2.7V to 3.6V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
VOUT = ≥ VOH (min.)
VOUT = ≤ VOH (max.)
Minimum
Typical
Maximum
Units
VIH
VIL
IIN
Input High Voltage
Input Low Voltage
2
VDD + 0.3
V
V
-0.3
0.8
5
CONT
VIN = max.;
Input Current
µA
V
OUT
VIN = 0V or VIN = VDD
15
IOH = -100µA
IOH = -4mA
IOL = 100µA
IOL = 4mA
VDD – 0.2
2.2
Output
High Voltage
VOH
VDD = min. VI = VIH or VIL
0.2
0.4
Output
Low Voltage
VOL
VDD = min. VI = VIH or VIL
V
IDT5V7855-DPK REVISION A MARCH 11, 2010
9
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Table 4C. LVCMOS/LVTTL DC Characteristics, VDD = 2.3V to 2.7V, TA = -40°C to 85°C
Symbol
VIH
Parameter
Test Conditions
VOUT = ≥ VOH (min.)
VOUT = ≤ VOH (max.)
VIN = max.;
Minimum
1.7
Typical
Maximum
Units
Input High Voltage
Input Low Voltage
VDD + 0.3
V
V
VIL
-0.3
0.7
5
Input
Curren
t
CONT
OUT
IIN
µA
VIN = 0V or VIN = VDD
15
IOH
-100µA
=
2.1
Output
High
VDD = min.;
VOH
V
Voltag IOH = -1mA
VI = VIH or VIL
2
e
IOH = -2mA
1.7
IOH
-100µA
=
0.2
Output
Low
VDD = min.;
VOL
V
Voltag IOH = -1mA
VI = VIH or VIL
0.4
0.7
e
IOH = -2mA
AC Electrical Characteristics
Table 6. AC Characteristics, VDD = 2.3V to 3.6V, TA = -40°C to 85°C
Symbol Parameter
fVCO VCO Frequency
Test Conditions
Minimum
Typical
Maximum
Units
MHz
MHz
MHz
170
1
340
170
50
PLL Mode
fOUT
Output Frequency
Non-PLL Mode
1
Measured over 50,000 cycles;
fOUT > 40MHz
PLL Mode
30
9
ps
ps
ps
ps
ps
ps
Period Jitter, RMS;
NOTE 1, 2
tjit(per)
Measured over 50,000 cycles;
fOUT > 16MHz
Non-PLL Mode
PLL Mode
Measured over 50,000 cycles;
230
90
f
OUT > 40MHz
Peak-to-Peak Jitter;
NOTE 1, 2
tp-p
Measured over 50,000 cycles;
fOUT > 16MHz
Non-PLL Mode
PLL Mode
Measured over 50,000 cycles;
fOUT > 40MHz
130
75
Cycle-to-Cycle Jitter;
NOTE 1, 2
tjit(cc)
Measured over 50,000 cycles;
fOUT > 16MHz
Non-PLL Mode
tR / tF
odc
Output Rise/Fall Time; NOTE 2
Output Duty Cycle; NOTE 2
Oscillation Startup Time
fOUT > 40MHz, 20% to 80%
100
48
700
52
ps
%
PLL
Bypass
45
55
%
tOSC
10
ms
NOTE 1: Measured on Wavecrest SIA3000.
NOTE 2: Output terminated with 50Ω to VDD/2.
IDT5V7855-DPK REVISION A MARCH 11, 2010
10
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Parameter Measurement Information
1.65V 0.15V
1.25V 0.15V
SCOPE
SCOPE
V
DD
V
DD
Qx
Qx
LVCMOS
LVCMOS
GND
GND
1.65V 0.15V
-1.25V 0.15V
3.3V Output Load AC Test Circuit
2.5V Output Load AC Test Circuit
VOH
VREF
OUT
VOL
➤
➤
tcycle n
tcycle n+1
1σ contains 68.26% of all measurements
2σ contains 95.4% of all measurements
3σ contains 99.73% of all measurements
4σ contains 99.99366% of all measurements
6σ contains (100-1.973x10-7)% of all measurements
➤
➤
tjit(cc) = tcycle n – tcycle n+1
|
|
1000 Cycles
Histogram
Reference Point
(Trigger Edge)
Mean Period
(First edge after trigger)
Cycle-to-Cycle Jitter
Period Jitter
VDD
2
80%
80%
OUT
tPW
tPERIOD
20%
20%
OUT
tR
tF
tPW
x 100%
odc =
tPERIOD
Output Duty Cycle/Pulse Width/Period
Output Rise/Fall Time
IDT5V7855-DPK REVISION A MARCH 11, 2010
11
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Pad Information
Table 7. Bond Pad Coordinates
Pad
Name
Pad Size (µm)
Coordinates
X(µm)
-266
-266
-266
-266
-266
161
Y(µm)
266
1
2
3
4
5
6
7
8
VDD
VDD
xd
75 x 75
75 x 75
75 x 75
75 x 75
75 x 75
75 x 75
75 x 75
75 x 75
161
56
xg
-161
-266
-266
-266
219
CONT
VSS
VSS
OUT
266
191
NOTE: Pad locations specify the center of the pad relative to the center of the die.
NOTE The substrate of the die should be connected to VSS
.
NOTE: Not all of the VSS pads need to be bonded, but all of the VDD pads need to be bonded.
Ordering Information
Table 8. Ordering Information
Part/Order Number
5V7855-DPK
5V7855SWFR
Package
Die
Sawn Wafer
Shipping Packaging
Waffle
Temperature
-40°C to 85°C
-40°C to 85°C
Film Frame
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes no responsibility for either its use or for the
infringement of any patents or other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal
commercial and industrial applications. Any other applications, such as those requiring high reliability or other extraordinary environmental requirements are not recommended without
additional processing by IDT. IDT reserves the right to change any circuitry or specifications without notice. IDT does not authorize or warrant any IDT product for use in life support
devices or critical medical instruments.
IDT5V7855-DPK REVISION A MARCH 11, 2010
12
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
Revision History Sheet
Rev
Table
Page
Description of Change
Date
7
Deleted procedure 5. Complete the serial write with a Stop Bit set to 0.
Updated Figure 2. Timing Diagram.
A
2/20/08
3/11/10
A
T8
12
Ordering Information Table - added Sawn Wafer package.
IDT5V7855-DPK REVISION A MARCH 11, 2010
13
©2010 Integrated Device Technology, Inc.
IDT5V7855 Data Sheet
EEPROM PROGRAMMABLE PLL DIE FOR LVCMOS CRYSTAL OSCILLATOR
6024 Silver Creek Valley Road Sales
Technical Support
800-345-7015 (inside USA)
netcom@idt.com
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
San Jose, California 95138
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to significantly affect the health or safety of users. Anyone using an IDT
product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2010. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		5V7855-DPK EEPROM可编程的PLL死LVCMOS晶振[ EEPROM Programmable PLL Die for LVCMOS Crystal Oscillator ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.218265s
