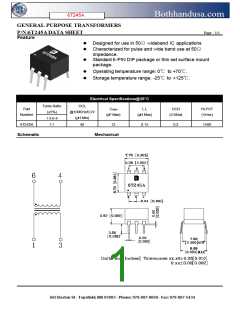

6T245A
Bothhandusa.com
GENERAL PURPOSE TRANSFORMERS
P/N:6T245ADATA SHEET
Feature
Page : 1/1
l
l
Designed for use in 50Ω wideband IC applications
Characterized for pulse and wide band use at 50Ω
impedance.
l
Standard 6-PIN DIP package or thin set surface mount
package.
l
l
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications@25°C
Turns Ratio
(±5%)
OCL
Part
CW/W
L.L
DCR
HI-POT
(Vrms)
@100KHz/0.2V
(µH Min)
Number
(pF Max)
(µH Max)
(O Max)
1-3:6-4
1:1
6T245A
40
12
0.15
0.2
1500
Schematic
Mechanical
