8TT100

型号：

8TT100

描述：

高性能肖特基代5.0 ，一个8[ High Performance Schottky Generation 5.0, 8 A ]

品牌：

VISHAY[ VISHAY ]

页数：

7 页

PDF大小：

111 K

下载PDF手册

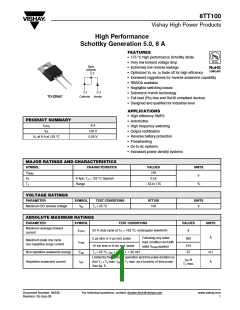

8TT100
Vishay High Power Products
High Performance
Schottky Generation 5.0, 8 A
FEATURES
• 175 °C high performance Schottky diode
• Very low forward voltage drop
Base
cathode
2
• Extremely low reverse leakage
RoHS
COMPLIANT
• Optimized VF vs. IR trade off for high efficiency
• Increased ruggedness for reverse avalanche capability
• RBSOA available
• Negligible switching losses
1
3
• Submicron trench technology
TO-220AC
Cathode Anode
• Full lead (Pb)-free and RoHS compliant devices
• Designed and qualified for industrial level
APPLICATIONS
• High efficiency SMPS
• Automotive
PRODUCT SUMMARY
IF(AV)
8 A
• High frequency switching
• Output rectification
• Reverse battery protection
• Freewheeling
VR
100 V
0.58 V
VF at 8 A at 125 °C
• Dc-to-dc systems
• Increased power density systems
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
VRRM
VF
CHARACTERISTICS
VALUES
100
UNITS
V
8 Apk, TJ = 125 °C (typical)
Range
0.55
TJ
- 55 to 175
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
TJ = 25 °C
8TT100
UNITS
Maximum DC reverse voltage
VR
100
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
UNITS
Maximum average forward
current
IF(AV)
50 % duty cycle at TC = 163 °C, rectangular waveform
8
A
Following any rated
load condition and with
rated VRRM applied
5 µs sine or 3 µs rect. pulse
850
Maximum peak one cycle
non-repetitive surge current
IFSM
10 ms sine or 6 ms rect. pulse
210
67
Non-repetitive avalanche energy
Repetitive avalanche current
EAS
IAR
TJ = 25 °C, IAS = 1.5 A, L = 60 mH
mJ
A
Limited by frequency of operation and time pulse duration so
that TJ < TJ max. IAS at TJ max. as a function of time pulse
See fig. 8
IAS at
TJ max.
Document Number: 94536
Revision: 05-Sep-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
8TT100
High Performance
Schottky Generation 5.0, 8 A
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
TYP.
MAX.
0.72
0.85
0.58
0.69
65
UNITS
8 A
-
TJ = 25 °C
16 A
-
(1)
Forward voltage drop
VFM
V
8 A
-
TJ = 125 °C
16 A
-
-
TJ = 25 °C
µA
mA
pF
(1)
Reverse leakage current
IRM
VR = Rated VR
TJ = 125 °C
-
4
Junction capacitance
CT
LS
VR = 5 VDC (test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated VR
520
8.0
-
-
Series inductance
-
nH
Maximum voltage rate of change
dV/dt
10 000
V/µs
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
UNITS
Maximum junction and
storage temperature range
TJ, TStg
- 55 to 175
°C
Maximum thermal resistance,
junction to case
RthJC
RthCS
DC operation
Mounting surface, smooth and greased
2
°C/W
Typical thermal resistance,
case to heatsink
0.5
2
g
Approximate weight
0.07
oz.
minimum
maximum
6 (5)
12 (10)
kgf · cm
(lbf · in)
Mounting torque
Marking device
Case style TO-220AC
8TT100
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94536
Revision: 05-Sep-08
8TT100
High Performance
Schottky Generation 5.0, 8 A
Vishay High Power Products
100
100
10
1
175°C
150°C
125°C
100°C
10
1
Tj = 175°C
0.1
75°C
50°C
25°C
0.01
0.001
0.0001
0
20
40
60
80
100
ReverseVoltage-VR(V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
Tj = 125°C
100
Tj = 25°C
10
0.0
0.5
1.0
1.5
2.0
0
20
40
60
80
100
120
Forward Voltage Drop-VFM(V)
ReverseVoltage-VR(V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Fig. 1 - Maximum Forward Voltage Drop Characteristics
10
D = 0.75
D = 0.5
1
0.1
D = 0.33
D = 0.25
D = 0.2
Single Pulse
(Thermal Resistance)
0.01
0.001
1E-05
1E-04
1E-03
1E-02
1E-01
1E+00
t1,RectangularPulseDuration(Seconds)
Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics
Document Number: 94536
Revision: 05-Sep-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
8TT100
High Performance
Schottky Generation 5.0, 8 A
Vishay High Power Products
7
6
5
4
3
2
1
0
180
180°
120°
90°
60°
170
160
150
DC
30°
DC
Square wave (D=0.50)
80% rated Vr applied
see note (1)
0
2
4
6
8
10
AverageForwardCurrent-IF(AV)(A)
Fig. 6 - Forward Power Loss Characteristics
12
0
2
4
6
8
10
12
AverageForwardCurrent-IF(AV)(A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
1000
100
10
100
1000
10000
SquareWavePulseDuration-tp(microsec)
Fig. 7 - Maximum Non-Repetitive Surge Current
Note
(1)
Formula used: TC = TJ - (Pd + PdREV) x RthJC
;
Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6);
PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94536
Revision: 05-Sep-08
8TT100
High Performance
Schottky Generation 5.0, 8 A
Vishay High Power Products
100
10
1
Tj = 25°C
Tj = 125°C
Tj = 175°C
0.1
1
10
100
RectangularPulseDuration(μsec)
Fig. 8 - Reverse Bias Safe Operating Area (Avalanche Current vs. Rectangular Pulse Duration)
100
Tj = 25°C
10
Tj = 125°C
Tj = 175°C
1
1
10
100
RectangularPulseDuration(μsec)
Fig. 9 - Reverse Bias Safe Operating Area (Avalanche Energy vs. Rectangular Pulse Duration)
Document Number: 94536
Revision: 05-Sep-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
8TT100
High Performance
Schottky Generation 5.0, 8 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
8
T
T
100
1
2
3
4
1
2
-
-
Current rating (8 A)
Package:
T = TO-220
3
4
-
-
T = Trench
Voltage code (100 V)
Tube standard pack quantity: 50 pieces
LINKS TO RELATED DOCUMENTS
Dimensions
http://www.vishay.com/doc?95221
Part marking information
SPICE model
http://www.vishay.com/doc?95224
http://www.vishay.com/doc?95231
www.vishay.com
6
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94536
Revision: 05-Sep-08
