DXT690BP5-13

型号:

DXT690BP5-13

描述:

45V的NPN高增益晶体管PowerDI®5[ 45V NPN HIGH GAIN TRANSISTOR PowerDI®5 ]

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

7 页

PDF大小:

139 K

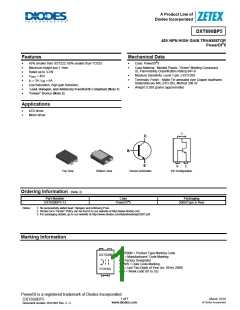

A Product Line of
Diodes Incorporated
DXT690BP5
45V NPN HIGH GAIN TRANSISTOR
PowerDI®5
Features
Mechanical Data
43% smaller than SOT223; 60% smaller than TO252
Case: PowerDI®5
Maximum height just 1.1mm
Rated up to 3.2W
VCEO = 45V
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
IC = 3A; ICM = 6A
Low Saturation, high gain transistor,
Lead, Halogen, and Antimony Free/RoHS Compliant (Note 1)
“Green” Device (Note 2)
Weight: 0.093 grams (approximate)
Applications
LED driver
Motor driver
C
C
B
E
B
E
Top View
Bottom View
Device Schematic
Pin Configuration
Ordering Information (Note 3)
Part Number
DXT690BP5-13
Case
PowerDI®5
Packaging
5000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
DXT690B = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
DXT690B
YYWWK
PowerDI is a registered trademark of Diodes Incorporated.
1 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
A Product Line of
Diodes Incorporated
DXT690BP5
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
60
45
5
Unit
V
V
V
Continuous Collector Current
Peak Pulse Current
3
A
6
A
ICM
Base Current
0.5
A
IB
Thermal Characteristics
Characteristic
Power Dissipation @ TA = 25°C (Note 4)
Symbol
PD
Value
3.2
Unit
W
39
°C/W
W
Thermal Resistance, Junction to Ambient Air (Note 4) @TA = 25°C
Power Dissipation @ TA = 25°C (Note 5)
Rθ
JA
1.7
PD
75
°C/W
W
Thermal Resistance, Junction to Ambient Air (Note 5) @TA = 25°C
Power Dissipation @ TA = 25°C (Note 6)
Rθ
JA
0.74
169
PD
°C/W
Thermal Resistance, Junction to Ambient Air (Note 6) @TA = 25°C
Thermal Resistance, Junction to Collector Terminal
Operating and Storage Temperature Range
Rθ
Rθ
JA
8.9
°C/W
°C
JT
-55 to +150
TJ, TSTG
Notes:
4. Device mounted on 1.6mm FR-4 PCB, single sided 2 oz. copper, collector pad dimensions 50mm x 50mm.
5. Device mounted on 1.6mm FR-4 PCB, single sided 1 oz. copper, collector pad dimensions 25mm x 25mm.
6. Device mounted on 1.6mm FR-4 PCB, single sided 1 oz. copper, minimum recommended pad layout.
PowerDI is a registered trademark of Diodes Incorporated.
2 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
A Product Line of
Diodes Incorporated
DXT690BP5
10
1
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
VCE(sat)
Limited
See note 3
See note 4
DC
1s
See note 5
100m
10m
100ms
10ms
1ms
Single Pulse. Tamb=25°C
See note 3
100µs
100m
1
10
0
25
50
75
100 125 150 175
VCE Collector-Emitter Voltage (V)
Temperature (°C)
Safe Operating Area
Derating Curve
Single Pulse. Tamb=25°C
See note 3
40
30
20
10
0
See note 3
D=0.5
100
10
1
D=0.2
Single Pulse
D=0.05
D=0.1
100µ 1m 10m 100m
1
10
100
1k
100µ 1m 10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Pulse Power Dissipation
4
3
2
1
0
180
T(amb)=25°C
T(amb)=25°C
160
140
120
100
80
1 oz. weight Copper
2 oz. weight Copper
60
1 oz. weight Copper
2 oz. weight Copper
100
40
20
10
1000
10000
10
100
1000
10000
Copper Area (sq mm)
Copper Area (sq mm)
Power Rating vs. Cu Area
Thermal Resistance vs. Cu Area
PowerDI is a registered trademark of Diodes Incorporated.
3 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
A Product Line of
Diodes Incorporated
DXT690BP5
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
OFF CHARACTERISTICS
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 7)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Symbol
Min
Typ
Max
Unit
Test Condition
C = 100μA, IE = 0
60
45
5
V
V
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
20
20
20
I
I
I
C = 10mA, IB = 0
V
E = 100μA, IC = 0
nA
nA
nA
VCB = 35V, IE = 0
VCB = 35V, VBE = 0
VEB = 4V, IC = 0
Collector Cutoff Current
ICES
Emitter Cutoff Current
IEBO
ON CHARACTERISTICS (Note 7)
IC = 1A, IB = 0.5mA
IC = 1A, IB = 5mA
IC = 2A, IB = 40mA
85
360
320
350
Collector-Emitter Saturation Voltage
mV
VCE(SAT)
I
C = 3A, IB = 150mA
Base-Emitter Saturation Voltage
Base-Emitter Turn-On Voltage
1.2
1.1
V
V
VBE(SAT)
VBE(ON)
IC = 3A, IB = 150mA
VCE = 2V, IC = 3A
VCE = 2V, IC = 100mA
VCE = 2V, IC = 1A
VCE = 2V, IC = 2A
VCE = 2V, IC = 3A
500
400
150
60
DC Current Gain
hFE
AC CHARACTERISTICS
Transition Frequency
Output Capacitance
VCE = 5V, IC = 50mA,
f = 50MHz
150
MHz
pF
fT
16
Cobo
ton
toff
VCB = 10V, f = 1MHz
VCC = 10V, IC = 500mA,
IB1 = IB2 = 50mA
33
1300
ns
ns
Switching Times
Notes:
7. Pulse Test: Pulse width 300μs. Duty cycle 2.0%.
PowerDI is a registered trademark of Diodes Incorporated.
4 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
A Product Line of
Diodes Incorporated
DXT690BP5
Typical Characteristic
1.0
0.8
0.6
0.4
0.2
0.0
IC/IB=100
Tamb=25°C
-55°C
100m
IC/IB=200
25°C
IC/IB=100
10m
100°C
IC/IB=10
100m
1m
1m
10m
1
10
1m
10m
100m
1
IC Collector Current (A)
IC Collector Current (A)
VCE(SAT) v IC
VCE(SAT) v IC
1000
VCE=2V
IC/IB=100
900
800
700
600
500
400
300
200
100
0
1.0
0.8
0.6
0.4
1.2
100°C
1.0
0.8
0.6
0.4
0.2
0.0
-55°C
25°C
100°C
25°C
-55°C
1m
10m
100m
1
10
1m
10m
100m
1
10
IC Collector Current (A)
IC Collector Current (A)
hFE v IC
VBE(SAT) v IC
VCE=2V
1.0
0.8
0.6
0.4
-55°C
25°C
100°C
1m
10m
100m
1
10
IC Collector Current (A)
VBE(ON) v IC
PowerDI is a registered trademark of Diodes Incorporated.
5 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
A Product Line of
Diodes Incorporated
DXT690BP5
Package Outline Dimensions
A
PowerDI®5
D
b2
D2
Dim
A
A2
b1
b2
D
D2
E
e
E1
E2
L
L1
W
Min
1.05
0.33
0.80
1.70
3.90
Max
1.15
0.43
0.99
1.88
4.05
A2
L
E2
E
E1
3.054 Typ
6.40
5.30
6.60
1.84 Typ
W
5.45
L1
3.549 Typ
0.75
0.50
1.10
0.95
0.65
1.41
e
b1
b1
A2
All Dimensions in mm
Suggested Pad Layout
Z
C
Dimensions Value (in mm)
Z
6.6
1.4
3.6
0.8
4.7
3.87
0.9
X1
X2
Y1
Y2
C
E1
X1
X2
E1
Y1
Y2
PowerDI is a registered trademark of Diodes Incorporated.
6 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
A Product Line of
Diodes Incorporated
DXT690BP5
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2009, Diodes Incorporated
www.diodes.com
PowerDI is a registered trademark of Diodes Incorporated.
7 of 7
www.diodes.com
March 2010
© Diodes Incorporated
DXT690BP5
Document number: DS31801 Rev. 2 - 2
厂商 型号 描述 页数 下载

RADIOMETRIX

DXT-433-TX2A [ DX series remote control boards ] 7 页

RADIOMETRIX

DXT-434.650-NTX2B [ DX series remote control boards ] 7 页

DIODES

DXT2010P5 60V NPN中功率晶体管PowerDI®5[ 60V NPN MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2010P5-13 60V NPN中功率晶体管PowerDI®5[ 60V NPN MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2011P5 100V NPN低SAT中功率晶体管PowerDI®5[ 100V NPN LOW SAT MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2011P5-13 100V NPN低SAT中功率晶体管PowerDI®5[ 100V NPN LOW SAT MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2012P5 60V PNP中功率晶体管PowerDI®5[ 60V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2012P5-13 60V PNP中功率晶体管PowerDI®5[ 60V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2013P5 100V PNP中功率晶体管PowerDI®5[ 100V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2013P5-13 100V PNP中功率晶体管PowerDI®5[ 100V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.189464s
