EXC3BP600H

型号:

EXC3BP600H

描述:

片式磁珠芯[ Chip Bead Cores ]

品牌:

PANASONIC[ PANASONIC ]

页数:

8 页

PDF大小:

287 K

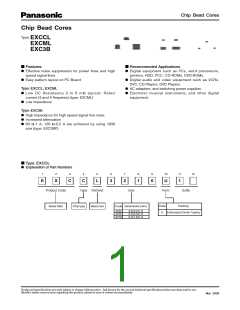

Chip Bead Cores
Chip Bead Cores
Type:
EXCCL
EXCML
EXC3B
Features
Recommended Applications
Effective noise suppression for power lines and high
speed signal lines
Easy pattern layout on PC Board
Digital equipment such as PCs, word processors,
printers, HDD, PCC, CD-ROMs, DVD-ROMs.
Digital audio and video equipment such as VCRs,
DVC, CD Players, DVD Players.
Type: EXCCL, EXCML
AC adapters, and switching power supplies.
Electronic musical instruments, and other digital
equipment.
Low DC Resistance 3 to 8 mȑ typical: Rated
current (3 and 4 Amperes) (type: EXCML)
Low impedance
Type: EXC3B
High impedance for high speed signal line noise
Increased attenuation
60 ȑ-1 A, 120 ȑ-0.5 A are achieved by using 1608
size (type: EXC3BP)
Type: EXCCL
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
X
C
C
L
3
2
1
6
U
1
Product Code
Type Part kind
Size
Form
Suffix
Code
U
Packing
Embossed Carrier Taping
Noise Filter
Chip type
Bead core
Code Dimensions (mm)
4532
3225
3216
4.5x3.2x1.8
3.2x2.5x1.6
3.2x1.6x1.6
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2008
Chip Bead Cores
Construction
Dimensions in mm (not to scale)
A
A
L
Mass
Dimensions (mm)
Type
(inches)
Ferrite core
(Weight)
[mg/pc.]
Electrode
L
W
H
A
EXCCL4532
(1812)
4.5 0.4 3.2 0.3 1.8 0.2 0.5 0.2 125.8
EXCCL3225
(1210)
EXCCL3216
(1206)
3.2 0.3 2.5 0.3 1.6 0.3 0.5 0.3
3.2 0.3 1.6 0.3 1.6 0.3 0.5 0.3
60.5
37
Type: EXCML
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
X
C
M
L
2
0
A
3
9
0
U
Product Code
Type Part kind
Size
Material
Nominal Impedance
Form
Molded
Chip type
The first two digits are
significant figure of
impedance value and the
third one denotes the
Code
U
Packing
Noise Filter
Bead core
Code Dimensions (mm)
45
32
20
16
4.5x1.6 x1.1
3.2x1.6 x0.9
2.0x1.25x0.9
1.6x0.8 x0.8
Embossed Carrier Taping
(EXCML16 to 32)
number of zeros following
Embossed Carrier Taping
(EXCML45)
H
Construction
Dimensions in mm (not to scale)
T
e
W
L
Ferrite core
Mass
Dimensions (mm)
Type
(inches)
(Weight)
[mg/pc.]
L
W
T
e
Conductor
Electrode
EXCML16
(0603)
EXCML20
(0805)
EXCML32
(1206)
EXCML45
(1806)
1.6 0.2
0.8 0.2
0.8 0.2
(0.4)
(0.5)
(0.6)
(0.6)
4.5
10.5
21.5
36.0
2.0 0.2 1.25 0.20 0.9 0.2
3.2 0.3
4.5 0.3
1.6 0.3
1.6 0.3
0.9 0.2
1.1 0.2
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2008
Chip Bead Cores
Type: EXC3B
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
X
C
3
B
B
2
2
1
H
Product Code
Size
Type Characteristics
Nominal Impedance
Form
Suffix
Multilayer
Chip type
Bead Core
High frequency
High attenuation
for signal Lines
High frequency
High attenuation
for Power Lines
The first two digits are
significant figure of
impedance value and the
third one denotes the
number of zeros following
Code
H
Packing
Noise Filter
Code Dimensions (mm)
1.6x0.8x0.8
B
P
3
Embossed Carrier Taping
Construction
Dimensions in mm (not to scale)
T
e
Ferrite core
W
L
Inner Conductor
Electrode
Mass
Dimensions (mm)
Type
(inches)
(Weight)
[mg/pc.]
L
W
T
e
EXC3BB
(0603)
EXC3BP
(0603)
1.6 0.2
1.6 0.2
0.8 0.2
0.8 0.2 0.30 0.15
0.8 0.2 0.30 0.15
4.5
4.5
0.8 0.2
Ratings
Impedance
Rated Current
(mA DC)
DC Resistance
Type
Part Number
( ) max.
ȑ
( ) at 100 MHz
tol.(%)
ȑ
4532
3225
3216
4516
3216
2012
1608
EXCCL4532U1
EXCCL3225U1
EXCCL3216U1
EXCML45A910H
EXCML32A680U
EXCML20A390U
EXCML16A270U
EXC3BP600H
EXC3BP121H
EXC3BB221H
EXC3BB601H
EXC3BB102H
115
45
2000
2000
2000
3000
3000
4000
4000
1000
500
0.1
0.05
0.05
0.016
0.012
0.008
0.006
0.07
0.1
25
91
68
39
25
27
60
120
220
600
1000
1608
200
0.3
100
0.8
50
1
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Bead Cores
Impedance Characteristics (Reference Data) Measured by HP4291A
ȊZȊ : Impedance
R : Resistance
X : Reactance
EXCML16A270U (1608)
EXCCL4532U1 (4532)
140
120
100
80
140
120
Z
100
80
60
40
20
0
R
60
X
40
Z
R
20
X
0
10
100
1000
10000
1
1
10
100
1000
10000
10000
10000
Frequency(MHz)
Frequency(MHz)
EXCCL3225U1 (3225)
EXCML20A390U (2012)
140
120
100
80
140
120
100
80
60
60
40
20
0
Z
Z
40
20
0
R
R
X
X
1
10
100
1000
10000
1
10
100
1000
Frequency(MHz)
Frequency(MHz)
EXCML32A680U (3216)
EXCCL3216U1 (3216)
140
120
100
140
120
100
80
Z
80
60
40
20
0
R
60
Z
40
20
0
X
R
X
1
10
100
1000
10000
1
10
100
1000
Frequency(MHz)
Frequency(MHz)
EXCML45A910H (4516)
180
160
140
120
Z
100
R
80
60
40
20
0
X
1
10
100
1000
10000
Frequency(MHz)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Bead Cores
Impedance Characteristics (Reference Data) Measured by HP4291A
ȊZȊ : Impedance
R : Resistance
X : Reactance
EXC3BB221H (1608)
EXC3BP121H (1608)
1400
1200
1000
800
600
400
200
0
200
150
100
50
Z
R
X
Z
R
0
X
1
10
100
1000
10000
10000
10000
1
10
100
1000
10000
Frequency(MHz)
Frequency(MHz)
EXC3BB601H (1608)
EXC3BP600H (1608)
1400
1200
1000
800
600
400
200
0
200
150
100
50
Z
R
R
Z
X
X
0
1
10
100
1000
1
10
100
1000
10000
Frequency(MHz)
Frequency(MHz)
EXC3BB102H (1608)
1400
1200
Z
1000
800
600
400
200
0
R
X
1
10
100
1000
Frequency(MHz)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Bead Cores
Packaging Methods (Taping)
Standard Quantity
Part Number
Kind of Taping
Pitch (P1)
8 mm
Quantity
EXCCL4532U1
EXCCL3225U1
EXCCL3216U1
EXCML45A910H
EXCML32A680U
EXCML20A390U
EXCML16A270U
1000 pcs./reel
2000 pcs./reel
3000 pcs./reel
Embossed Carrier Taping
4 mm
4000 pcs./reel
EXC3B
H
२२२२
Embossed Carrier Taping
Taping Reel
T
t1
Sprocket hole
Compartment
φD0
φ C
A
φ D
E
P1
P2
P0
t2
Chip component
Tape running direction
φ A
W
t
Embossed Carrier Dimensions (mm)
Part Number
A
B
W
F
E
P1
P2
P0
D
t1
t2
φ
0
EXCCL4532U1
EXCCL3225U1
EXCCL3216U1
3.6 0.2 4.9 0.2 12.0 0.2 5.5 0.1
8.0 0.1
2.4 max.
2.1 max.
2.9 0.2 3.6 0.2
8.0 0.2 3.5 0.1
2.0 0.2 3.6 0.2
EXCML45A910H 1.9 0.2 4.8 0.2 12.0 0.2 5.5 0.1 1.75 0.10 4.0 0.1 2.0 0.1 4.0 0.1 1.5 0.1 0.20 0.05 1.8 max.
EXCML32A680U 1.9 0.2 3.5 0.2
EXCML20A390U 1.5 0.2 2.3 0.2
8.0 0.2 3.5 0.1
1.6 max.
EXCML16A270U 1.1 0.2 2.1 0.2
EXC3B 1.0 0.1 1.8 0.1
H
0.25 0.05
२२२२
Standard Reel Dimensions (mm)
Part Number
A
B
C
D
φ
E
W
T
t
φ
φ
φ
+0.5
EXCCL4532U1
EXCCL3225U1
EXCCL3216U1
EXCML45A910H
EXCML32A680U
EXCML20A390U
EXCML16A270U
13.0
16.5 max.
13 max.
–1.0
+0.5
–1.0
09.5
180.003.0
60.0 1.0
13.0 0.5
21.0 0.8
2.0 0.5
13.0+10..05
16.5 max.
1.2 0.5
+0.5
09.5
13 max.
–1.0
EXC3B
H
२२२२
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Bead Cores
Recommended Land Pattern Dimensions in mm (not to scale)
(mm)
Part Number
EXCCL4532U1
EXCCL3225U1
A
3
B
C
5.4
4.1
4.1
2.8
2.1
1.2
1.7
EXCCL3216U1
EXCML45A910H
EXCML32A680U
EXCML20A390U
EXCML16A270U
1.7
A
B
2.6 to 3
1.6 to 2
0.8 to 1.2
0.6 to 1
0.8 to 1
5.5 to 6.5
4 to 5
1.2 to 1.6
1.2 to 1.6
1 to 1.2
0.8 to 1
0.8 to 1
3 to 4
2 to 3
C
EXC3B
H
2 to 2.6
२२२२
Recommended Soldering Conditions
Recommendations and precautions are described below.
Recommended soldering conditions for reflow
· Reflow soldering shall be performed a maximum of
two times.
· Please contact us for additional information when
used in conditions other than those specified.
· Please measure the temperature of the terminals
and study every kind of solder and printed circuit
board for solderability before actual use.
For soldering (Example : Sn-37Pb)
Temperature
Time
Preheating
Main heating
Peak
140 °C to 160 °C
Above 200 °C
235 10 °C
60 s to 120 s
30 s to 40 s
max. 10 s
Peak
Preheating
For lead-free soldering (Example : Sn/3Ag/0.5Cu)
Temperature
150 °C to 170 °C
Above 230 °C
max. 260 °C
Time
Heating
Preheating
Main heating
Peak
60 s to 120 s
30 s to 40 s
max. 10 s
Time
<Repair with hand soldering>
Preheat with a blast of hot air or similar method. Use a soldering iron with a tip temperature of 350 °C or less. Solder
each electrode for 3 seconds or less.
Never touch this product with the tip of a soldering iron.
Safety Precautions
The following are precautions for individual products. Please also refer to the precautions common to EMI Filters,
ESD Suppressors, Fuses, and MR Sensors shown on page EL113 of this catalog.
1. Flow soldering may cause this product to come off because the adhesiveness of the product element is low.
Please consult our sales representative in advance about flow soldering.
2. Use rosin-based flux or halogen-free flux.
3. For cleaning, use an alcohol-based cleaning agent. Before using any other type, consult with our sales person
in advance.
4. Do not apply shock to Chip Bead Cores (hereafter called the bead cores) or pinch them with a hard tool (e.g.
pliers and tweezers). Otherwise, their bodies may be chipped, affecting their performance.
Excessive mechanical stress may damage the bead cores. Handle with care.
5. Store the bead cores in a location with a temperature ranging from -5 °C to +40 °C and a relative humidity of
40 % to 60 %, where there are no rapid changes in temperature or humidity.
6. Use the bead cores within a year (EXC3B Type: within half a year) after the date of the outgoing inspection
indicated on the packages.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jul. 2008
Safety Precautions (Common precautions for EMI Filters, ESD Suppressors, Fuses, and MR Sensors)
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject
to change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as damage to
vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating
appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.
Systems equipped with a protection circuit and a protection device
Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault
(1) Precautions for use
• These products are designed and manufactured for general and standard use in general electronic equipment
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
• These products are not intended for use in the following special conditions. Before using the products,
carefully check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent
2. In direct sunlight, outdoors, or in dust
3. In salty air or air with a high concentration of corrosive gas, such as Cl2, H2S, NH3, SO2, or NO2
4. Electric Static Discharge (ESD) Environment (except ESD Suppressors)
These components are sensitive to static electricity and can be damaged under static shock (ESD).
Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic Environment
Avoid any environment where strong electromagnetic waves exist.
6. In an environment where these products cause dew condensation
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range due
to the effects of neighboring heat-generating components. Do not mount or place heat-generating components
or inflammables, such as vinyl-coated wires, near these products (except Thermal Cutoffs).
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the
performance or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the performance
or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave water
residues. Otherwise, the insulation performance may be deteriorated.
(2) Precautions for storage
The performance of these products, including the solderability, is guaranteed for a year from the date of arrival
at your company, provided that they remain packed as they were when delivered and stored at a temperature
of 5 °C to 35 °C and a relative humidity of 45 % to 85 %. (Micro Chip Fuses: Guaranteed for 6 months from the
date of arrival at your company)
The performance of EMI Filters is guaranteed for 6 months or a year from the outgoing inspection date indicated on
the packages, provided that they are stored at a temperature of -5 °C to +40 °C and a relative humidity of 40 %
to 60 %. Check the guarantee period in the specifications. The performance of Thermal Cutoffs is guaranteed for a
year from the outgoing inspection date indicated on the packages, provided that they are stored at a temperature of
-10 °C to +40 °C and a relative humidity of 30 % to 75 %.
Even within the above guarantee periods, do not store these products in the following conditions. Otherwise,
their electrical performance and/or solderability may be deteriorated, and the packaging materials (e.g. taping
materials) may be deformed or deteriorated, resulting in mounting failures.
1. In salty air or in air with a high concentration of corrosive gas, such as Cl2, H2S, NH3, SO2, or NO2
2. In direct sunlight
<Package markings>
Package markings include the product number, quantity, and country of origin.
In principle, the country of origin should be indicated in English.
Jan. 2008
– EL113 –
厂商 型号 描述 页数 下载

PANASONIC

EXC-14CE900U 要求批准产品规格[ PRODUCT SPECIFICATION FOR APPROVAL ] 12 页

PANASONIC

EXC-24CB102U 2模式噪声滤波器[ 2 mode Noise Filters ] 4 页

PANASONIC

EXC-24CE900U 共模噪声滤波器[ Common mode Noise Filters ] 2 页

PANASONIC

EXC-24CP221U 2模式噪声滤波器[ 2 mode Noise Filters ] 4 页

PANASONIC

EXC-28BB221U 片式磁珠阵列[ Chip Bead Array ] 4 页

PANASONIC

EXC-3BP121H [ Chip Bead Cores ] 7 页

PANASONIC

EXC-3BP600H 片式磁珠芯[ Chip Bead Cores ] 7 页

PANASONIC

EXC-CET103U 有效的噪声抑制电源线和高速信号线[ Effective noise suppression for power lines and high speed signal lines ] 8 页

PANASONIC

EXC-CET220U [ Chip EMI Filters ] 3 页

PANASONIC

EXC-ELDR35V EMI胎圈芯[ EMI Bead Cores ] 5 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.176272s
