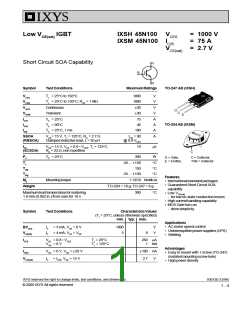

Low VCE(sat) IGBT
IXSH 45N100 VCES
IXSM 45N100 IC25
= 1000 V
= 75 A
VCE(sat) = 2.7 V
Short Circuit SOA Capability
Symbol
TestConditions
MaximumRatings
TO-247 AD (IXSH)
VCES
VCGR
TJ = 25°C to 150°C
1000
1000
V
V
TJ = 25°C to 150°C; RGE = 1 MW
VGES
VGEM
Continuous
Transient
±20
±30
V
V
G
C
E
IC25
IC90
ICM
TC = 25°C
75
45
A
A
A
TO-204 AE (IXSM)
TC = 90°C
TC = 25°C, 1 ms
180
SSOA
(RBSOA)
VGE= 15 V, TJ = 125°C, RG = 2.7 W
Clamped inductive load, L = 30 mH
ICM = 90
@ 0.8 VCES
A
tSC
(SCSOA)
VGE= 15 V, VCE = 0.6 • VCES, TJ = 125°C
RG = 22 W, non repetitive
10
ms
W
C
PC
TC = 25°C
300
G = Gate,
C = Collector,
E = Emitter,
TAB = Collector
TJ
-55 ... +150
150
°C
°C
°C
TJM
Tstg
-55 ... +150
Features
Md
Mountingtorque
1.13/10 Nm/lb.in.
• Internationalstandardpackages
• Guaranteed Short Circuit SOA
capability
Weight
TO-204 = 18 g, TO-247 = 6 g
Maximumleadtemperatureforsoldering
1.6 mm (0.062 in.) from case for 10 s
300
°C
• Low VCE(sat)
- for low on-state conduction losses
• Highcurrenthandlingcapability
• MOS Gate turn-on
- drive simplicity
Symbol
TestConditions
CharacteristicValues
(TJ = 25°C, unless otherwise specified)
min. typ. max.
Applications
• AC motor speed control
• Uninterruptiblepowersupplies(UPS)
• Welding
BVCES
VGE(th)
IC = 3 mA, VGE = 0 V
IC = 4 mA, VCE = VGE
1000
5
V
V
8
ICES
VCE = 0.8 • VCES
VGE = 0 V
TJ = 25°C
TJ = 125°C
250 mA
mA
1
Advantages
IGES
VCE = 0 V, VGE = ±20 V
±100 nA
2.7
• Easy to mount with 1 screw (TO-247)
(isolatedmountingscrewhole)
• High power density
VCE(sat)
IC = IC90, VGE = 15 V
V
IXYS reserves the right to change limits, test conditions, and dimensions.
© 2000 IXYS All rights reserved
93013E(12/96)
1 - 4
