JXTXGPS-CZ-1575-75N

型号:

JXTXGPS-CZ-1575-75N

描述:

GPS车载天线[ GPS VEHICLE ANTENNA ]

品牌:

AAC[ AMERICAN ACCURATE COMPONENTS, INC. ]

页数:

2 页

PDF大小:

44 K

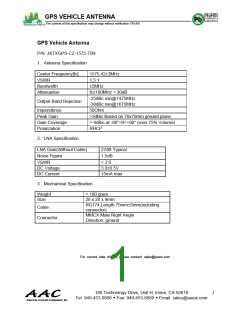

GPS VEHICLE ANTENNA
The content of this specification may change without notification 7/01/09
GPS Vehicle Antenna
P/N: JXTXGPS-CZ-1575-75N
1. Antenna Specification
Center Frequency[fc]
VSWR
1575.42±3MHz
1.5:1
Bandwidth
±5MHz
Attenuation
fc±100MHz > 30dB
-25dBc min@1475MHz
-30dBc min@1675MHz
50Ohm
Output Band Rejection
Impendence
Peak Gain
>3dBic Based on 70x70mm ground plane
>-4dBic at -90°<0<+90° (over 75% Volume)
RHCP
Gain Coverage
Polarization
2. LNA Specification
LNA Gain(Without Cable)
Noise Figure
27dB Typical
1.5dB
VSWR
< 2.0
DC Voltage
DC Current
3.0±0.5V
15mA max
3. Mechanical Specification
Weight
Size
< 100 gram
28 x 28 x 9mm
RG174,Length:75mm±5mm(including
connector)
Cable
MMCX Male Right Angle
Direction: ground
Connector
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Š Fax: 949-453-8889 Š Email: sales@aacix.com
American Accurate Components, Inc.
GPS VEHICLE ANTENNA
The content of this specification may change without notification 7/01/09
Outline Drawing
4. Environmental Specification
Working Temperature
Storage Temperature
-40°C ~ +85°C
-40°C ~ +100°C
Sine sweep 1g(0-p)
10~50Hz each axis
95%~100% RH
Vibration
Humidity
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
2
Tel: 949-453-9888 Š Fax: 949-453-8889 Š Email: sales@aacix.com
American Accurate Components, Inc.
