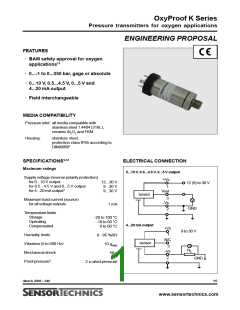

OxyProof K Series
Pressure transmitters for oxygen applications
ENGINEERING PROPOSAL
ELECTROMAGNETIC CAPABILITY8
Test conditions
Criterion Interference
Radiated, radio frequency electromagnetic
field immunity (RFI)
EN61000-4-3: Grade 3, 10 V/m, 80 to 1000 MHz
80 % AMC (1 kHz)
A
<1 %FSO
Electrical fast transient / burst immunity (EFT) EN61000-4-4: Grade 3, ±2 kV
B
B
<1 %FSO
<1 %FSO
Electrostatic discharge immunity test (ESD)
EN61000-4-2: Grade 4, ±8 kV, contact discharge
Immunity to conducted disturbances induced EN61000-4-6: Grade 3, 0.15 to 80 MHz
A
<1 %FSO
by radio-frequency fields
10 V, 80 % AMC (1 kHz)
RECOMMENDED PLUG (DIN 43650-A)
Plug and profile washer included in delivery!
LOAD LIMITATION
4...20 mA output version
1400
Ohm
1200
1000
800
600
400
200
0
5
16 20
25 30 V
9
dimensions in mm
supply voltage
Specification notes (for all devices):
The package is an all-sealed housing. IP65 protection is given when the connector is locked with a rubber washer. For proper
function the gage port is vented to the atmosphere through the connector/cable assembly. Thus the cable end must have
access to the ambient pressure.
1.
The minimum supply voltage is directly proportional to the load resistance seen by the transmitter. For more details see the
load limitation diagram.
2.
Proof pressure is the maximum pressure which may be applied without causing damage to the sensing element.
Thermal effects tested and guaranteed from 0 to 60°C relative to 25°C. All specifications shown are relative to 25°C.
Non-linearity refers to the Best Straight Line fit measured for offset, full scale span and 1/2 full scale span.
Long term stability is the change in output after one year or 1 million pressure cycles.
Span is the arithmetic difference in transmitter output signal measured at zero pressure and the maximum operating pressure.
Test are in accordance with EN61000-6-2, April 1999.
3.
4.
5.
6.
7.
8.
CE-labelling is in accordance with 89/336/EEC.
9.
The pressure transmitters must not be used as safety accessories according to article 1, 2.1.3 of the directive 97/23/EC.
BAM certification-No: BAM/ZBA/001/07. The BAM certificate refers only to the burn-out safety of the materials in oxygen
service.
10.
11.
