WSLT39212L000FEA

型号:

WSLT39212L000FEA

描述:

功率金属金光大道®电阻器,耐高温( 275 ℃)低的值(低至0.001 Ω ) ,表面贴装[ Power Metal Strip® Resistors, High Temperature (275 °C) Low Value (down to 0.001 Ω), Surface Mount ]

品牌:

VISHAY[ VISHAY ]

页数:

3 页

PDF大小:

251 K

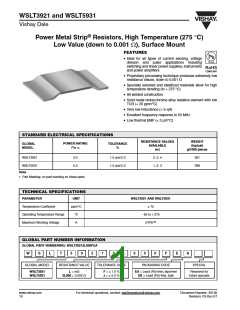

WSLT3921 and WSLT5931
Vishay Dale
Power Metal Strip® Resistors, High Temperature (275 °C)
Low Value (down to 0.001 Ω), Surface Mount
FEATURES
Ideal for all types of current sensing, voltage
division and pulse applications including
switching and linear power supplies, instruments
and power amplifiers
RoHS
COMPLIANT
Proprietary processing technique produces extremely low
resistance values, down to 0.001 Ω
Specially selceted and stabilized materials allow for high
temperature derating (to + 275 °C)
All welded construction
Solid metal nickel-chrome alloy resistive element with low
TCR (< 20 ppm/°C)
Very low inductance (< 5 ηH)
Excellent frequency response to 50 MHz
Low thermal EMF (< 3 µV/°C)
STANDARD ELECTRICAL SPECIFICATIONS
RESISTANCE VALUES
AVAILABLE
mΩ
WEIGHT
(typical)
g/1000 pieces
POWER RATING
GLOBAL
MODEL
TOLERANCE
%
P70 °C
WSLT3921
WSLT5931
3.0
5.0
1.0 and 5.0
1.0 and 5.0
2, 3, 4
1, 2, 3
281
398
Note
• Part Marking: no part marking on these parts
TECHNICAL SPECIFICATIONS
PARAMETER
UNIT
ppm/°C
°C
WSLT3921 AND WSLT5931
Temperature Coefficient
Operating Temperature Range
Maximum Working Voltage
75
- 65 to + 275
(P/R)1/2
A
GLOBAL PART NUMBER INFORMATION
GLOBAL PART NUMBERING: WSLT39212L000FEA
W
S
L
T
3
9
2
1
2
L
0
0
0
F
E
A
GLOBAL MODEL
RESISTANCE VALUE
TOLERANCE CODE
PACKAGING CODE
SPECIAL
WSLT3921
WSLT5931
L = mΩ
2L000 = 0.002 Ω
F = 1.0 %
J = 5.0 %
EA = Lead (Pb)-free, tape/reel
EK = Lead (Pb)-free, bulk
Reserved for
future specials
www.vishay.com
18
For technical questions, contact: ww2bresistors@vishay.com
Document Number: 30136
Revision: 03-Dec-07
WSLT3921 and WSLT5931
Power Metal Strip® Resistors, High Temperature (275 °C)
Low Value (down to 0.001 Ω), Surface Mount
Vishay Dale
DIMENSIONS
DIMENSIONS in inches [millimeters]
MODEL
L
W
H
T
H
0.394 0.010 0.205 0.010 0.020 0.080 0.010
[10.0 0.254] [5.20 0.254] [0.5] [2.00 0.254]
D
WSLT3921
WSLT5931
L
W
0.020
0.591 0.010 0.305 0.010
[15.0 0.254] [7.75 0.254]
0.157 0.010
[4.00 0.254]
0.010
[0.5]
T
SOLDER PAD DIMENSIONS
in inches [millimeters]
MODEL
I
d
b
L
b
0.106 0.010
[2.70 0.254]
0.244 0.010
[6.20 0.254]
0.220 0.005
[5.60 0.13]
d
WSLT3921
WSLT5931
0.205 0.010
[5.20 0.254]
0.344 0.010
[8.75 0.254]
0.220 0.005
[5.60 0.13]
120
100
80
RESISTANCE
VALUE
GLOBAL
MODEL
“D”
THICKNESS
ELEMENT
MATERIAL
mΩ
WSLT3921
WSLT3921
WSLT3921
WSLT5931
WSLT5931
WSLT5931
2.0
3.0
4.0
1.0
2.0
3.0
0.0270
0.0170
0.0130
0.0330
0.0155
0.0105
Fe-Cr
Fe-Cr
Fe-Cr
Fe-Cr
Fe-Cr
Fe-Cr
60
40
20
0
- 65 - 25
25
75
70
125
175
225
275
Ambient Temperature in °C
Derating
PERFORMANCE
TEST
CONDITIONS OF TEST
TEST LIMITS
Thermal Shock
- 55 °C to + 150 °C, 1000 cycles, 15 min at each extreme
5 x rated power for 5 s
(1.0 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
(1.0 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
(1.0 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
(0.5 % + 0.0005 Ω) ΔR
Short Time Overload
Low Temperature Storage
- 65 °C for 45 min
High Temperature Exposure
Bias Humidity
1000 h at + 275 °C
+ 85 °C, 85 % RH, 10 % Bias, 1000 h
100 g’s for 6 ms, 5 pulses
Mechanical Shock
Vibration
Frequency varied 10 to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at 70 °C, 1.5 h “ON”, 0.5 h “OFF”
260 °C Solder, 10 - 12 s dwell, 25 mm/s emergence
MIL-STD-202, Method 106, 0 % power, 7a and 7b not required
Load Life
Resistance to Solder Heat
Moisture Resistance
PACKAGING
REEL
MODEL
TAPE WIDTH
DIAMETER
330 mm/13"
330 mm/13"
PIECES/REEL
CODE
EA
WSLT3921
WSLT5931
16 mm/embossed plastic
16 mm/embossed plastic
3000
1500
EA
Note
• Embossed carrier tape per EIA-481-2
Document Number: 30136
Revision: 03-Dec-07
For technical questions, contact: ww2bresistors@vishay.com
www.vishay.com
19
