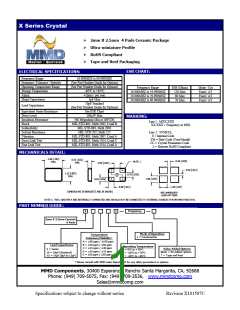

X Series Crystal
¾ 2mm X 2.5mm 4 Pads Ceramic Package
¾ Ultra-miniature Profile
¾ RoHS Compliant
¾ Tape and Reel Packaging
ESR CHART:
ELECTRICAL SPECIFICATIONS:
Frequency Range
16.000MHZ to 60.000MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
Frequency Range
ESR (Ohms)
120 Max
80 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
16.000MHZ to 19.999MHZ
20.000MHZ to 29.999MHZ
30.000MHZ to 60.000MHZ
±2ppm / per year
Shunt Capacitance
3pF Max
50 Max
10pF Standard
(See Part Number Guide for Options)
Load Capacitance
Equivalent Series Resistance
Drive Level
Insulation Resistance
Shock
See ESR Chart
100µW Max
500 Megaohms Min at 100VDC
MIL-STD-883, Meth 2002, Cond B
MIL-STD-883, Meth 2003
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Solderability
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MIL-STD-202, Meth 215
MIL-STD-883, Meth 2007, Cond A
MIL-STD-883, Meth 1014, Cond C
MIL-STD-883, Meth 1014, Cond A
MECHANICALS DETAIL:
2.60 [.102]
MAX
0.55 [.022]
MAX
0.50 [.020]
NOTE 1
0.90 [.035]
0.30 [.012]
3
2
4
1
2.10 [.083]
MAX
0.70 [.028]
1.00 [.039]
0.65 [.026]
0.80 [.031]
1.20 [.047]
DIMENSIONS IN BRACKETS ARE IN INCHES
RECOMMENDED
LAND PATTERN
NOTE 1: PIN 2 AND PIN 4 ARE INTERNALLY CONNECTED AND SHOULD NOT BE CONNECTED TO EXTERNAL SOURCES FOR PROPER FUNCTION.
PART NUMBER GUIDE:
Frequency
X
1
2mm X 2.5mm Ceramic
4 Pads
Mode of Operation
1 = Fundamental
Temperature
Tolerance/Stability*
A = ±50 ppm / ±100 ppm
B = ±30 ppm / ±50 ppm
C = ±15 ppm / ±30 ppm
D = ±10 ppm / ±15 ppm
E = ±50 ppm / ±50 ppm
Load Capacitance
Operating Temperature
A = 0°C to +70°C
B = -20°C to +70°C
C = -40°C to +85°C
Value Added Options
Blank = No Added Options
T = Tape and Reel
S = Series
10 = 10pF (Standard)
XX = XXpF (8pF to 12pF)
* Please consult with MMD sales department for any other parameters or options.
MMD Components, 30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536, www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision X101507C
