RX3408

型号：

RX3408

描述：

RX3408低功耗IF接收机和PLL频率合成器IC[ RX3408 Low Power IF Receiver and PLL Frequency Synthesizer IC ]

品牌：

ETC[ ETC ]

页数：

13 页

PDF大小：

415 K

下载PDF手册

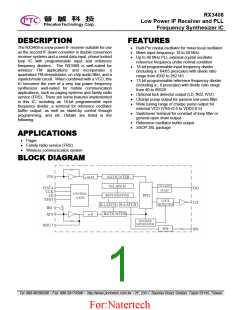

RX3408
Low Power IF Receiver and PLL
Frequency Synthesizer IC
DESCRIPTION
FEATURES
The RX3408 is a low power IF receiver suitable for use
as the second IF down-converter in double conversion
receiver systems and a serial data input, phase-locked
loop IC with programmable input and reference
frequency dividers. The RX3408 is well-suited for
•
•
•
Built-Pin crystal oscillator for mixer local oscillator
Mixer input frequency: 10 to 50 MHz
Up to 40 MHz PLL external crystal oscillator
reference frequency under normal condition
18-bit programmable input frequency divider
(including a ¸ 64/65 prescaler) with divide ratio
range from 4032 to 262143
•
wireless FM applications and incorporates
a
quadrature FM demodulator, on-chip audio filter, and a
squelch/mute circuit. When combined with a VCO, this
IC becomes the core of a very low power frequency
synthesizer well-suited for mobile communication
applications, such as paging systems and family radio
service (FRS). There are some features implemented
in this IC, including an 18-bit programmable input
frequency divider, a terminal for reference oscillator
buffer output, as well as stand-by control through
programming, and etc. Details are listed in the
following.
•
13-bit programmable reference frequency divider
(including a ¸ 8 prescaler) with divide ratio range
from 40 to 65528
•
•
•
Optional lock detector output (LD, fR/2, fV/2)
Charge pump output for passive low-pass filter
Wide tuning range of charge pump output for
external VCO (VSS+0.5 to VDD2-0.5)
Switchover terminal for constant of loop filter or
general open drain output
•
•
•
Reference oscillator buffer output
SSOP 28L package
APPLICATIONS
•
•
•
Pager
Family radio service (FRS)
Wireless communication system
BLOCK DIAGRAM
Tel: 886-66296288‧Fax: 886-29174598‧ http://www.princeton.com.tw‧2F, 233-1, Baociao Road, Sindian, Taipei 23145, Taiwan
For:Natertech
RX3408
APPLICATION CIRCUIT
R12
R11
DIODE
D1
C17
C16
R10
C18
R13
R14
C20
R8
MCU
To Audio Amp.
R7
R6
DEC
C28
R5
R
C21
C15 C14
C13 C12
R
R
R
C19
R9
455KHZ
FLT
RX3408
C10
XTL Buffer Out
To MCU
C9
XTL1
C2
C11
C1
XTL2
R1
C7
C8
BATTERY
R2
R4
Supply voltage
1st IF-AMP
(21.4MHZ)
C3
C4
C6
1st MIXER
(460MHZ)
VCO
LNA
C5
R3
(460MHZ)
(460MHZ)
RFSWITCH
PA
(460MHZ)
(460MHZ)
V2.1
2
For:Natertech
RX3408
ORDER INFORMATION
Package Type
28 Pins, SSOP, 150mil
Top Code
Valid Part Number
RX3408-LF
RX3408-LF
PIN CONFIGURATION
V2.1
3
For:Natertech
RX3408
PIN DESCRIPTION
Pin Number
Name
I/O
Description
1
BO
O
Terminal of reference crystal oscillator buffer output
Reference crystal oscillator or external clock input with internally
biased amplifier. (any external input to XIN must be ac-coupled)
2
XIN
I
3
XOUT
VDD2
DO
O
Reference crystal oscillator or external clock output
4
POWER Nominal 3.0 V supply voltage
5
O
GND
I
Single-ended charge pump output for passive low-pass filter
6
VSS
PLL Ground
7
FIN
VCO frequency input with internally biased input amplifier
8
VDD1
LD
POWER (any external input to FIN must be ac-coupled)
9
O
Nominal 1.0 V supply voltage
Lock detector output (high when PLL is locked)
Ground
10
11
12
13
14
15
16
17
18
19
20
21
22
23
GND
GND
MIXIN
XSC0
XSC1
MIXOUT
VCC
I
I
Mixer input (3.3 KΩ input impedance)
Oscillator input (base)
O
O
Mixer output (1.8 KΩ output impedance)
POWER Nominal 3.0 V supply
LMTIN
DCP0
DCP1
QUAD
AUDOUT
FLTIN
FLTOUT
SQUIN
I
IF amplifier input (1.8 KΩ input impedance)
IF amplifier de-coupling capacitor connection
IF amplifier de-coupling capacitor connection
Quadrature FM demodulator input
Quadrature FM demodulator output
Audio bandpass filter input
I
O
I
O
I
Audio bandpass filter output
Squelch circuit input
Scan control output for LO. Output is high when squelch circuit
input level is low.
24
SCANCTL
O
25
26
27
CLK
DATA
LE
O
I
Shift register clock input
Serial data input
I
Latch enable input
Switchover terminal for constant of loop filter or a general open
drain output
28
SW
I
V2.1
4
For:Natertech
RX3408
FUNCTION DESCRIPTION
The RX3408 is a MCP (Multi Chip Package), it combines PTC RX3361 and FS8308. The IF receiver part (RX3361)
incorporates a mixer, crystal-based local oscillator, IF amplifier, quadrature FM demodulator, audio filter, and a squelch
circuit and is capable of demodulating FM input signals. The PLL part (FS8308) supports 20MHz to 500MHz frequency
range.
IF RECEIVER PART
MIXER
The mixer down converts frequency from the 1st IF input on pin MIXIN to the 455 KHz 2nd IF output on MIXOUT. The
external 2nd IF filter should be chosen so that the specified output impedance on the mixer output port is an acceptable
termination for the filter.
CRYSTAL OSCILLATOR
A single dc/dc coupled transistor is available as a two port gain element (pins XOSC0 & XOSC1) to implement a crystal
oscillator. The device is biased on-chip to a constant dc current.
IF AMPLIFIER
The IF limiter amplify and limits the signal on pin LMTIN input from the external 2nd IF filter. The out put signal is a
square wave that drives the following demodulator stage. Two off-chip decoupling capacitors to VCC are required on
pins DCP0 & DCP1 to remove dc content from the limiter input.
FM DEMODULATOR
The demodulator provides an audio output generated by multiplying the input IF from the limiter with a quadrature of the
input. The quadrature is generated by the combination of an on-chip 10pF series capacitor with an off-chip shunt LCR
resonator connected between pin QUAD and VCC. Biasing for the input transistor connects to pin QUAD comes from
the off-chip resonator. The shape of the demodulator S-curve is determined by the shunt resistance on this LCR
resonator. An off-chip RC low pass filter should be used on pin AUDOUT for removal of the 2nd IF components.
FILTER AMPLIFIER
The filter amplifier provides an inverting gain element between pins FLTIN & FLTOUT for the implementation of an audio
filter. Typically, a band-pass active filter is built by adding externally at least two resistors and two capacitors to this
amplifier. An external dc path must be provided through the feedback network across these pins to set the dc operating
point. The design equations are as follows:
Where:
fo is the desired center frequency, Q is the quality factor, Ao is the voltage gain at band center, R2 is the feedback
resistance, C is the value for both capacitors, R1 the series input resistance and R2 the shunt resistance.
V2.1
5
For:Natertech
RX3408
PLL PART
PROGRAMMABLE INPUT FREQUENCY DIVIDER
The VCO input to the FIN pin is divided by the programmable divider and then internally output to the phase/frequency
detector (PFD) as fv. The programmable input frequency divider consists of a÷64/65 (P/P+1) dual-modulus prescaler in
prior to a 18-bit (N) counter, which is further comprised of a 6-bit swallow (A) counter, and a 12-bit main (B) counter. The
total divide ratio, N, is related to values for P, A, and B through the relation
N = (P + 1)×A +P ×(B –A) = P ×B +A ,
With B ≧ A. The minimum available programmable divisor for continuous counting is given by P ×(P – 1)=64 × 63=4032,
and the valid total divide ratio range for the input divider is M = 4032 to 262143.
Take N=10000 for example, since P=64 and hence that B=156 and A=16. Therefore, the binary codes of B and A should
be 0000 1001 1100 and 010000, respectively. An alternative approach is to translate the decimal N into binary code
directly. And then just take the last 6-bit as A and the remaining 12-bit as B. By far the binary code of N=10000 is 00 0010
0111 0001 0000. One can get the same result as the former method.
PROGRAMMABLE REFERENCE FREQUENCY DIVIDER
The crystal oscillator output is divided by the programmable divider and then internally output to the PFD as fR. The
programmable reference frequency divider consists of a fixed ÷ 8 (S) prescaler and a 13-bit reference (R) counter. The
total divide ratio, T, is related to values for S and R through the relation
T = S×R = 8 ×R.
The usable divisor range of the reference counter is R = 5 to 8191 and therefore, the valid total divide ratio range for
the reference divider is T = 40 to 65528 (in steps of 8.)
SERIAL INPUT DATA FORMAT
The divisors of the input and reference dividers are input using a 20-bit serial interface consisting of separate clock
(CLK), data (DATA), and latch enable (LE) lines. The format of the serial data is shown in the figure below
Serial input data format
DATA[17:0]
19
CB[1:0]
2
1
0
The data on the DATA line is written to the shift register on the rising edge of the CLK signal and is input with MSB first.
The last two bits are recognized as the latch select control bits.
Control Bit Setting
CB[1]
CB[0]
Fetching Target of Serial Data Input
X
0
1
0
1
1
N-counter
PS and SW
R-counter
V2.1
6
For:Natertech
RX3408
Data on the DATA line should be changed on the falling edge of CLK, and LE should be held low while data is being
written to the shift register. Data is transferred from the shift register to either one of the frequency divider latches or the
optional control latch when LE is set high. When the latch select control bits are set high-low or low-low, data is loaded to
the 18-bit N-counter latch, and when the latch select control bits are set high-high, the 2 MSBs are ignored, the next 13
data bits are loaded to the 13-bit R-counter latch and the remaining 3 LSBs are used to control testing modes and should
be set as follows for normal operation: LD[2] = high, LD[1] = low, LD[0] = low. To disable LD output (i.e. set LD low),
LD[2] should be set low. The LD output control bits is shown in Table 6. When the latch select control bits are set
low-high, the 2 MSBs are recognized as PS and SW, which are used as stand-by control and open drain output control,
respectively. The detail of two control bits setting is summarized in Table 1. In normal work condition, PS is set to low.
When PS is programmed to high, it will enter stand-by mode.
The definition of the contents of the shift register relating to each particular latch location is listed in the table below.
Serial data input format
First bit
Shift Register Bit Location
Last bit
19 18 17 16 15 14 13 12 11 10 9
8
7
6
5
4
3
2
1
0
N-counter
Optional
Control
N [ 17:0 ]
X
0
PS SW Ignored
0
1
1
1
R-counter
Ignored
R [ 12:0 ]
LD[2:0]
The 18-bit input (N) divider ratios are specified by the N [17:0] bits, respectively, and are defined in the table below.
Input divider ratios
N [17:0]
Divide
Ratio
B[11:0]
A [5:0]
17 16 15 14 13 12 11 10 9
8
1
1
7
1
1
6
1
1
5
0
0
4
0
0
3
0
0
2
0
0
1
0
0
0
0
1
4032
4033
‧
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧
262143
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Similarly, the Optional Control are specified by PS and SW bits, respectively, and are defined in the table below
Data format for 2 optional bits
Bit States
Description
H
Stand-by mode
PS
L
Normal work mode
SW
Open drain output control
Similarly, the 13-bit reference (R) divider ratios are specified by the R[12:0] bits, respectively, and are defined in the table
below
Similarly, the 13-bit reference (R) divider ratios are specified by the R[12:0] bits, respectively, and are defined in the table
below
Reference divider ratios
R [12:0]
Divide
Ratio
12 11 10
9
0
8
0
7
6
0
5
0
4
0
3
0
2
1
1
0
0
1
5
6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
0
‧
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
‧
1
8191
V2.1
7
For:Natertech
RX3408
The outputs selected by the LD[3:0] control bits for the multiplexed LD output pin are defined in the table below.
LD output control bits
LD[2]
R, bit 2
LD[1]
R, bit 1
LD[0]
R, bit 0
Output State
DO Pin
BO Pin
LD Pin
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
-
-
-
-
-
-
-
-
R-Divider/2 Output
XOUT / R Output
XOUT / 8 Output
Normal Mode (Lock Detector Output)
N-Divider/2 Output
Test Mode
Tri-state
Tri-state
-
-
Tri-state
Tri-state
XOUT / 8 Output
Serial input data timing waveforms are shown in the figure below.
Serial input data timing waveforms
V2.1
8
For:Natertech
RX3408
PHASE/FREQUENCY DETECTOR (PFD)
The PFD compares an internal input frequency divider output signal, fV, with an internal reference frequency divider
output signal, fR, and generates an error signal, DO, which is proportional to the phase error between fV and fR. The DO
output is intended for use with a passive filter as shown in the figure below.
Passive low-pass filter circuit
LOCK DETECTOR (LD)
When phase comparator detects phase difference, LD terminal outputs “L”. When phase comparator locks, LD terminal
outputs “H”. On standby, outputs “H”. The criteria for lock condition are that the phase difference between fV and fR is
less than 2/xin and continues for more than three consecutive times. The input/output waveforms for the PFD and LD are
shown in the figure below.
PFD input/output waveforms
STAND-BY MODE
The stand-by mode for the PLL is entered by programming the PS bit to high. In the standby mode, the XIN and FIN
amplifiers, N-counter, and R-counter are stopped, as well as the internal current bias for charge pump block, the N- and
R-counters are also reset, and the DO and DB outputs are set to the high impedance state. As long as voltage is
supplied to VDD2, data loaded to the latches is kept. To exit from stand-by mode to normal operation, the PS bit must be
programmed to low.
REFERENCE CRYSTAL OSCILLATOR BUFFER OUTPUT (BO)
This IC provides a reference crystal oscillator buffer output intended to be used as a crystal local oscillator to a 2nd mixer.
The terminal is represented as BO. For cases to enhance the buffer output swing, increasing VDD1 will be an efficient
way.
Filter Switch Control (SW)
Control of SW terminal by “SW” bit. This terminal is for switching time-constant of loop filter. Output type of this terminal
is open drain output. When constant of loop filter doesn’t change by this switch, general open drain output is available.
Note that there is an internal 200ꢀ resistor connected between and drain terminal and output pin.
V2.1
9
For:Natertech
RX3408
ABSOLUTE MAXIMUM RATINGS
VSS = 0V
Parameter
Symbol
Rating
Unit
V
VSS – 0.3 to VSS + 2
VDD1
V
Supply Voltage
VSS – 0.3 to VSS + 6
VSS – 0.3 to VSS + 6
VSS – 0.3 to VDD + 0
–30 to 70
VDD2
V
VCC
VFIN
Input Voltage Range
V
℃
℃
℃
Sec.
Operating Temperature Range
Storage Temperature Range
Soldering Temperature Range
Soldering Time Range
TOPR
TSGT
TSLD
tSLD
–65 to 150
255
10
RECOMMEND OPERATING CONDITIONS
VSS = 0V
Value
Symbol
VCC
Unit
Parameter
Min.
2
Typ.
3
Max.
6
V
V
Supply Voltage Range
0.95
2.4
1.0
3.6
10.7
25
2.0
3.0
VDD1
VDD2
fMIXIN
TA
V
MIXIN Input Frequency
Operating Temperature
MHz
℃
-40
85
V2.1
10
For:Natertech
RX3408
ELECTRICAL CHARACTERISTICS
VCC=VDD2=3.0V, VDD1=1.0V, VSS = 0V, CE = 3.0V. Temp =27 ℃, fo = 10.7MHz, fdev = +/- 3KHz, fm = 1KHz.
Value
Symbol
Condition
Unit
Parameter
Min.
Typ. Max.
DC
Current Consumption, Un-muted
Current Consumption, Muted
IF Receiver Part
ICC,UNM
ICC,MUT
SQUIN=1V
SQUIN=0V
-
-
4.0
5.4
-
-
mA
mA
Input Limiting Sensitivity
Mixer Conversion Gain
-
-
-
-
-
-
2.6
28
-
uV
dB
Kꢀ
VLIM3dB
GMIX
-
Mixer Input Resistance
Mixer Input Capacitance
Audio Output Voltage
Total Harmonic Distortion
Audio Output Impedance
Filter Amplifier Gain
-
-
3.3
9.0
-
RMIX,IN
CMIN,INn
VAUD
THD
ZAUD
-
210
-
-
-
pF
mVrms
%
130
-
-
40
0.5
170
0.86
450
50
MIXIN = 10mV rms
Measured at AUDOUT
Ω
dB
GFLT
AUDIO = 0.3V, 10KHz
Measured at FLTOUT
Filter Amplifier DC Output voltage
0.7
0.9
V
V
V
VFLT
Scan Control Output Level, Un-Muted
Scan Control Output Level, Muted
Squelch Circuit Hysteresis
PLL Part
SQUIN=1V
SQUIN=0V
-
2
-
0
2.9
45
0.4
-
VSC,UNM
VSC,MUT
VHYS
Referred to SQUIN
100
mV
PFIN=-15dBm
DD1=1V, PS bit = “L”
FIN Operating Frequency Range
fFIN
20
-
500
MHz
V
XIN Operating Frequency Range
FIN Input Voltage Swing
XIN Input Voltage Swing
V
DD1=1V
7
-15
0.3
-
-
-
40
-
-
MHz
dBm
VPK-PK
fXIN
PFIN
VXIN
-
-
CLK, DATA, LE Logic LOW Input Voltage
-
-
-
-
0.3
V
VIL
CLK, DATA, LE Logic HIGH Input
Voltage
VDD2
-0.3
VIH
-
-
V
XIN Logic LOW Input Current
IIL,XIN
VIL =0V
VIH = VDD1
VIL =0V
-
10
uA
XIN Logic HIGH Input Current
FIN Logic LOW Input Current
FIN Logic HIGH Input Current
Charge Pump Drive Current
Charge Pump Sink Current
LD, FV, FR Logic LOW Output Current
LD, FV, FR Logic HIGH Output Current
SW Logic LOW Output Current
SW Logic HIGH Output Current
DATA to CLK Setup Time
-
-
-
10
60
60
-
uA
uA
uA
mA
mA
mA
mA
uA
mA
us
IIH,XIN
IIL,FIN
IIH,FIN
IDO
-
-
VIH = VDD1
-
-
1.0
1.0
-
VDD2=3.0V,
VDO=1.5V
IDO
-
-
-
-
-
-
-
-
-
0.1
0.1
-
-
IOL
-
-
IOH
2.8
2.8
-
10
-
ISW,OFF
ISW,ON
tSU1
-
2
2
2
-
CLK to LE Setup Time
tSU2
-
-
us
Hold Time
-
-
us
tHOLD
V2.1
11
For:Natertech
RX3408
PACKAGE INFORMATIONS
28 PINS, SSOP, 150 MIL
Symbol
Min.
1.34
0.10
1.24
0.20
0.10
9.80
5.79
3.81
-
Nom.
Max.
1.75
0.25
1.52
0.30
0.25
10.00
6.19
3.98
-
A
A1
A2
b
1.6
-
-
0.25
c
-
D
E
-
5.99
E1
e
3.91
0.63
L
0.38
-
-
-
1.27
θ
y
0°
-
8°
0.1
Notes :
1. Refer to JEDEC MO-137
2. Unit : mm
V2.1
12
For:Natertech
RX3408
IMPORTANT NOTICE
Princeton Technology Corporation (PTC) reserves the right to make corrections, modifications, enhancements,
improvements, and other changes to its products and to discontinue any product without notice at any time.
PTC cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a PTC product. No
circuit patent licenses are implied.
Princeton Technology Corp.
2F, 233-1, Baociao Road,
Sindian, Taipei 23145, Taiwan
Tel: 886-2-66296288
Fax: 886-2-29174598
http://www.princeton.com.tw
V2.1
13
For:Natertech
厂商 型号 描述 页数 下载

RUBYCON

 		RX30 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 4 页

FUJITSU

 		RX300 富士通PRIMERGY RX300 S6双插槽2 U机架式服务器[ Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server ] 10 页

ETC

 		RX30000 RX4000安装|用户手册[ 10/2001 ]\n[ RX4000 Installation | User＇s Manual[10/2001] ] 111 页

RICHCO

 		RX3030-0 电缆，光纤管理[ CABLE & FIBER MANAGEMENT ] 1 页

RICHCO

 		RX3030-4 电缆，光纤管理[ CABLE & FIBER MANAGEMENT ] 1 页

ETC

 		RX3034B70W 双极NPN UHF /微波Transisitor\n[ Bipolar NPN UHF/Microwave Transisitor ] 5 页

RUBYCON

 		RX30_1 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 2 页

PTC

 		RX3140 RX3140低功耗IF接收机IC[ RX3140 Low Power IF Receiver IC ] 9 页

TE

 		RX314005 电源PCB继电器[ Power PCB Relay ] 4 页

TE

 		RX314005C 电源PCB继电器[ Power PCB Relay ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.247186s
