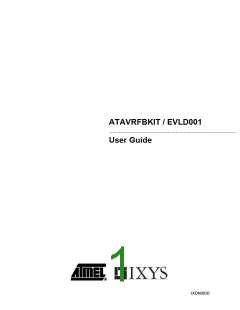

ATAVRFBKIT / EVLD001

..............................................................................................

User Guide

IXDN0036

Section 1

Introduction...........................................................................................1-1

1.1 General Description ..................................................................................1-2

1.2 Ballast Demonstrator Features .................................................................1-3

Section 2

Ballast Demonstrator Device

Features................................................................................................2-5

2.1 Atmel Supported Products ........................................................................2-5

2.2 IXYS^®Supported Products .......................................................................2-5

Section 3

Microcontroller Port Pin Assignments...................................................3-7

Section 4

Ballast Demonstrator Operation ...........................................................4-9

4.1 General Requirements..............................................................................4-9

4.2 Circuit Topology ........................................................................................4-9

4.3 Startup and PFC Description ..................................................................4-10

4.4 Lamp Operation Description ...................................................................4-11

Section 5

Device Design & Application...............................................................5-15

5.1 Magnetics................................................................................................5-15

5.2 IXYS IXTP02N50D depletion mode Mosfet Used As Current Source ....5-15

5.3 IXYS IXD611 Half- bridge MOSFET driver .............................................5-15

5.4 IXYS IXI859 Charge Pump Regulator.....................................................5-16

5.5 IXYS IXTP3N50P PolarHVTM N-Channel Power MOSFET...................5-17

Section 6

ATPWMx Demonstrator Software.......................................................6-19

6.1 Main_pwmx_fluo_demo.c .......................................................................6-20

6.2 Pfc_ctrl.c .................................................................................................6-26

6.3 Lamp_ctrl.c .............................................................................................6-30

Section 7

Conclusion..........................................................................................7-33

7.1 Appendix 1: SWISS DIM.........................................................................7-33

7.2 Appendix 2: Capacitor Coupled Low Voltage Supply..............................7-34

7.3 Appendix 3: PFC Basics .........................................................................7-35

7.4 Appendix 4: Bill Of Material.....................................................................7-36

7.5 Appendix 5: Schematics..........................................................................7-39

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Section 1

Introduction

Efficient fluorescent lamps and magnetic ballasts have been the standard lighting fixture

in commercial and industrial lighting for many years. Several lamp types, rapid start,

high output, and others are available for cost effective and special applications. But

incandescent lamps, in spite of the poor light to power ratio typically one fourth of fluo-

rescent, offer one feature - dimming - that hasn’t been available in fluorescent lamps

until now. Dimming allows the user to conserve electrical power under natural ambient

light or create effects to enhance mood or image presentation projection for example.

Typical rapid start fluorescent lamps have two pins at each end with a filament across

the pins. The lamp has argon gas under low pressure and a small amount of mercury in

the phosphor coated glass tube. As an AC voltage is applied at each end and the fila-

ments are heated, electrons are driven off the filaments that collide with mercury atoms

in the gas mixture. A mercury electron reaches a higher energy level then falls back to a

normal state releasing a photon of ultraviolet (UV) wavelength. This photon collides with

both argon assisting ionization and the phosphor coated glass tube. High voltage and

UV photons ionize the argon, increasing gas conduction and releasing more UV pho-

tons. UV photons collide with the phosphor atoms increasing their electron energy state

and releasing heat. Phosphor electron state decreases and releases a visible light pho-

ton. Different phosphor and gas materials can modify some of the lamp characteristics.

ATAVRFBKIT / EVLD001 User Guide

1-1

7597A–AVR–02/06

Introduction

Figure 1-1. Fluorescent Tube Composition

Since the argon conductivity increases and resistance across the lamp ends decreases

as the gas becomes excited, an inductance (ballast) must be used to limit and control

the gas current. In the past, an inductor could be designed to limit the current for a nar-

row range of power voltage and frequency. A better method to control gas current is to

vary an inductor’s volt-seconds to achieve the desired lamp current and intensity. A vari-

able frequency inverter operating from a DC bus can do this. If the inductor is part of an

R-L-C circuit, rapid start ignition currents, maximum intensity, and dimming currents are

easily controlled depending on the driving frequency versus resonant frequency.

A ballast should include a power factor corrector (PFC) to keep the main current and

voltage in phase with a very low distortion over a wide range of 90 to 265 VAC 50/60 Hz.

With microcontroller control, economical remote analog or digital control of lamp func-

tion and fault reporting are a reality. Moreover, adjusting the lamp power to correspond

with human perceived light level is possible. An application specific microcontroller

brings the designer the flexibility to increase performance and add features to his light-

ing product. Some of the possible features are described in detail below. The final

design topology is shown in the block diagram of figure 3.

Now, a new way of dimming fluorescent lamps fills the incandescent/fluorescent feature

gap plus adds many additional desirable features at a very reasonable cost.

1-2

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Introduction

1.1

General

Description

Fluorescent ballast topology usually includes line conditioning for CE and UL compli-

ance, a power factor correction block including a boost converter to 380 V for universal

input applications and a half bridge inverter. By varying the frequency of the inverter, the

controller will preheat the filaments (high frequency), then ignite the tube (reducing the

frequency). Once the tube is lit, varying the frequency will dim the light. The Atmel

AT90PWMx microcontroller can be programmed to perform all these functions.

Figure 1-2. Ballast Demonstrator Board

1.2

Ballast

• Automatic microcontroller dimmable ballast

Demonstrator

Features

• Universal input – 90 to 265 VAC 50/60 Hz, 90 to 370 VDC

• Power Factor Corrected (PFC) boost regulator

• Power feedback for stable operation over line voltage range

• Variable frequency half bridge inverter

• 18W, up to 2 type T8 lamps

• Automatic dimmable single lamp operation

• Automatic detection of Swiss, DALI, or 0 – 10V dimming control

• Very versatile power saving options with microcontroller design for most functions

ATAVRFBKIT / EVLD001 User Guide

1-3

7597A–AVR–02/06

Section 2

Ballast Demonstrator Device

Features

2.1

Atmel Supported AT90PWMx Microcontroller

Products

• High speed comparator for PFC zero crossover detection

• High speed configurable PWM outputs for PFC and ½ bridge inverter

• 6 Analog inputs for A/D conversion, 2.56V reference level

• 3 Digital inputs used for the dimming control input

• 3 High speed PWM outputs used for the PFC and ½ bridge driver

• A fully differential A/D with programmable gain used for efficient current sensing

• SOIC 24 pin package

• Low power consumption in standby mode

2.2

IXYS^®Supported

Products

IXI859 Charge pump with voltage regulator and MOSFET driver

• 3.3V regulator with undervoltage lockout

• Converts PFC energy to regulated 15VDC

• Low propagation delay driver with 15V out and 3V input for PFC FET gate

IXTP3N50P MOSFET

• 500V, low R_DS(ON) power MOSFET, 3 used in design

IXTP02N50D depletion mode MOSFET

• 500V, 200mA, normally ON, TO-220 package and configured as current source

ATAVRFBKIT / EVLD001 User Guide

2-5

7597A–AVR–02/06

Ballast Demonstrator Device Features

IXD611S MOSFET driver

• Up to 600mA drive current

• ½ bridge, high and low side driver in a single surface mount IC

• Undervoltage lockout

Figure 2-1. Ballast Demonstrator Block Diagram

RESONATING

INDUCTOR

AND

FILAMENT

TRANSFORMER

BALANCE

TRANSFORMER

AND

LAMPS

PFC BOOST REGULATOR

INVERTER

PFC Inductor

15V

UVLO

IXD611

IX859

R13

R10

R14

Driver

Regulators

15V

C11

3.3V

C14

Driver

R35

R39

PFC Driver

R28

R42

AT90PWX

PFC_ZCD

V_BUS

Dimming

Control

ACMP0/PD7

PSCOUT00/PD0

ADC5/PB2

PFC Output

V_HAVERSINE

ADC4/PB7

Isolated

DALI

DALI_TX

TXD/DALI/PD3

RXD/DALI/PD4

PE1

DALI_RX

SWISS_CTRL

ZERO_TEN_V

SWITCH_0_10

SWISS

ADC7/PB6

PE2

Isolated

0-10V

V_LAMP

I_LAMP

ADC4/PB7

PSCOUT20/PB0

AMP0+/PB4

Inverter High

Inverter Low

PSCOUT21/PB1

AMP0-/PB3

2-6

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Section 3

Microcontroller Port Pin

Assignments

PD0

PD1

PD3

PD4

PD5

PD6

PCOUT00

PSCIN0

TXD/DALI

RXD/DALI

ADC2

PFC_OUTPUT - To IXI859 FET driver input

DUAL_LAMP - Dual lamp detection

DALI_TX - DALI transmit line

DALI_RX - DALI receive line

LAMP_EOL - Not supported in hardware or software

ADC3

V_LAMP - Rectified lamp voltage sense, missing lamp,

open or shorted filament, preheat, ignition & run.

PD7

ACMP0

PFC_ZCD - Comparator for PFC zero current crossing

sense

PB0

PB1

PB2

PB3

PB4

PB5

PB6

PB7

PSCOUT20

PSCOUT21

ADC5

INVERTER_L - Low side ½ bridge driver output

INVERTER_H - High side ½ bridge driver output

V_BUS - 380VDC bus voltage sense for regulation.

GND - Diff amp - A/D, 1 ohm bus current shunt resistor

I_LAMP - Diff amp + A/D

AMP0-

AMP0+

ADC6

TEMPERATURE - Ambient temperature in lamp housing

ZERO_TEN_V - 0 to 10V control input

ADC7

ADC4

V_HAVERSINE - Haversine input sense.

PE0

RST#

RESET - Reset pin for zero crossing detector

SWISS_CTRL - SWISS Control input

PE1 PE1

PE2 ADC0

SWITCH_0_10 - Switch ON/OFF for 0-10V interface

ATAVRFBKIT / EVLD001 User Guide

3-7

7597A–AVR–02/06

3-8

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Section 4

Ballast Demonstrator Operation

4.1

General

Requirements

• Constant power as determined by DALI or analog power setting

380 volt DC bus as provided by a power factor correcting boost regulator (PFC)

100% to 2% dimming setting

• One or two lamps, type T8 of any characteristics

Ballast to compensate automatically

Hardware is capable of up to 40W per lamp

• Line voltage of 90 to 265 VAC, 50 or 60 Hz

• Control method

DALI power control – auto recognition of control means

0-10 volt power control – auto recognition of control means

One touch “Swiss” dimming

100% ON after ignition then dim to the last or current programmed value, if any.

4.2

Circuit Topology Input filter with variator for noise suppression and protection.

PFC / boost circuit including IXI859 MOSFET driver

Megaballast microcontroller 24 pin SOIC

½ bridge driver

½ bridge power MOSFET stage for up to 2 lamps

Voltage driven filaments for wider lamp variety and better stability under all conditions

380VDC bus voltage after the PFC boost

ATAVRFBKIT / EVLD001 User Guide

4-9

7597A–AVR–02/06

Ballast Demonstrator Operation

4.3

Startup and PFC

Description

Upon application of main power, the micontroller does not drive the PFC MOSFET Q3.

The C9 capacitor is charged to the peak line voltage.

The depletion FET Q1 and the Zener Diode provide a DC voltage (UVLO) with enough

current to supply the control part of the ballast.

As soon as the microcontroller request the ballast to start, the PFC is started according

to the following sequence.

Microcontroller checks that the DC bus voltage is 0.9 times the haversine peak

and the under voltage lockout (UVLO) requirements are met, a series of fixed

width soft-start pulses are sent to the PFC MOSFET (Q3) at 10 µS at a 20 KHz

rate. At very low load currents the bus voltage should rise to 380V. If the bus

rises to 410 VDC all PFC pulses stop. As the 380V drops, the zero crossing

detector PD7 starts to sense a zero crossing from the PFC transformer second-

ary. A 380V DC bus and a zero crossing event starts the PFC control loop.

Checks are made for the presence of the rectified power (haversine) and bus voltage

throughout normal operation. Mains sense at PB7 < 0.848 (90 VAC) or > 2.497 (265

VAC) peak faults the PFC to off, turns off the PFC MOSFET (Q3) and initiates a restart.

The control consists of measuring the error between VBUS and 380V (2.27V at PB2) to

determine the PFC drive pulse width (PW). The PW is proportional to the error, and has

to be constant over a complete half period. The update is done each time the haversine

reaches zero.

The maximum curent the PFC MOSFET (Q3) can sustain is 4.5A. The relation between

PW and and the peak current in PFC MOSFET (Q3) is:

PW = t = L x Ipk / Vhaversine_max

With L at 700µH and Ipk at 4.5A, PWmax = 8.5µS at high line (265 Vrms).

With L at 700µH and Ipk at 4.5A, PWmax = 24.7µS at high line (90 Vrms).

This also effectively limits the FET dissipation under upset conditions. Under

normal operation, a pulse width maximum of 25µS is allowed for a maximum

bus voltage error with the high line limitation. Regulation of 1% of the VBUS is

achieved with this control scheme.

After the PFC FET ON pulse, the PFC inductor flyback boosts the voltage through the

PFC diode to the bulk filter capacitor. The boost current decays as measured by the

inductor secondary. After the current goes to zero, the next pulse is started. This

ensures operation in a critical conduction boost mode. The current zero crossing detec-

tion of PD7 sets the PFC off time. This off time is effectively proportional to the

haversine amplitude with the lowest PFC frequency occurring at the haversine crest and

the highest frequency at the haversine zero. Because of the haversine voltage and

di=v*dt/L, the mains current envelope should follow the voltage for near unity power fac-

tor. This assumes a nearly constant error (di) of the 380 VDC bus over each haversine

period.

4-10

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Ballast Demonstrator Operation

The PFC ON time is modified proportionally to the error between 380V and the actual

value of the bus. In case the Vbus reaches the overshoot value of 410V the pulse is

reduced to 0.

This control loop will determine the regulation response to ripple current on the 380V

bulk filter cap and the loads for a specific application design requirements.

4.3.1

System Sequential

Step Description

Main voltage applied.

Undervoltage lockout (UVLO) released.

IXI859 voltage regulator supplies 3.3V to microcontroller.

Power microcontroller ON in low current standby mode.

Disable ½ bridge drive output PB0 & PB1

Disable PD5 comparator (Not implemented).

PB7, scaled haversine voltage must be >0.848 Vmin (90VAC) & <2.497 (265VAC)

Vmax (haversine peak) for the PFC to start.

-Check AC line condition every 200 mS maximum (10 cycles of 50 Hz).

-If the check fails, halt PD0, PB0, PB1 andset line voltage alarm high or low. Do not

restart until line within specs to protect PFC.

PD0 soft start PFC with 10µS pulses at 50µS period for 800µS.

Monitor comparator at PD7 for change 1 to 0 indicating a zero crossing of the

PFC inductor secondary voltage. This occurs after the 10µS start pulse burst.

If no PD7 change and after 800µS halt PD0, wait 1 second and provide PD0

with 10µS pulses for 800µS. Try 10 times and if no crossing, set PFC alarm.

After PD7 comparator transition and 380VDC (2.368V at PB2), enable PFC control loop.

-Set PB2 (380VDC sense) setpoint to 2.368V with deadband.

-If PB2 > 2.50V then inhibit PD0 pulse.

-If PB2 = < 2.368V then use the control loop to establish the PD0 PFC pulse width.

Limit pulse width to 25uS or as determined by the haversine peak voltage.

After PD0 PFC pulse, wait until PD0 = 0 & PD7 = 0 (PD0 off time) then enable

PD0 pulse according to table of error from setpoint.

-If PB2 (380V sense) > A/D 255 = overshoot.

When PB7 < 0.100V, limit PD0 minimum to 5 µS to reduce distortion at havers-

ine zero

crossover.

4.4

Lamp Operation

Description

T4 primary and C11 form a serial resonant circuit driven by the output half bridge. Since

the output is between 380V and 0V, DC isolation is provided by C14 to drive the lamp

circuit with AC. The lamp is placed across the resonating capacitor C11. The lamp fila-

ments are driven by windings on T1 secondaries to about 3Vrms so that the resonating

inductor current provides the starting lamp filament current.

ATAVRFBKIT / EVLD001 User Guide

4-11

7597A–AVR–02/06

Ballast Demonstrator Operation

Initially, the lamp is started at a frequency well above resonance at 80KHz before ramp-

ing down to 55KHz for ignition. 80KHz provides a lagging power factor where most of

the drive voltage appears across the inductor. A smaller voltage appears across the res-

onating capacitor and the lamps. However with 1 mH gapped inductance, there is

sufficient inductor current to heat the filaments.

For lamp ignition, the frequency is reduced from 80 KHz to 40 KHz at 30 KHz/sec

towards resonance causing the lamp voltage to rise to about 340V peak. Ignition occurs

at about 40KHz for a 18W T8 lamp. The plasma established in the lamp presents a

resistive load across the resonating capacitor thereby reducing the voltage across the

capacitor and shifting the reactive power in the bridge circuit to resistive power in the

lamp.

A further reduction in frequency to 32KHz at 30KHz/sec establishes maximum bright-

ness as the resonant circuit now has a leading (capacitive) power factor causing more

voltage and current (approx. 360 Vpeak) across the capacitor and the lamp.

Dimming is accomplished by raising the drive frequency towards 100 KHz. The lower

lamp (capacitor) voltage caused by changing from a leading to a lagging (inductive)

power factor and the resulting drop in lamp current causes lamp dimming. The visual

perception of brightness is logarithmic with applied power and must be taken into

account in the control method scheme.

4.4.1

Single Lamp

Operation

Single lamp operation can be detected from the 380VDC bus current through a 1 ohm

sense resistor sensed by the differential input PB3/PB4. The AT90PWMx differential

amplifier has the gain preset in the source code at 10. This scales the 200mV for two

lamps to a reasonable A/D resolution. PB4 requires low pass filtering. Through the 1

ohm sense resistor R28, V = I*R = 80 Watts*1/380V = 210mA*1 = 210mV. At preheat,

the current for one lamp is half that for two lamps. This current is also used to sense

open filament condition or lamp removed under power condition. An abrupt change in

the bus current is a good indicator of lamp condition that does not require a high fre-

quency response or a minimal response due to reactive currents.

Once single lamp condition is detected, the minimum run frequency is determined by

lamp current PB4 < 100mV. If the single lamp condition occurs while running, as noted

by a decrease in current of more than 20% from the preset level, increase the frequency

until the PB4 = 90mV. If the PB4 increases to 120mV, assume the lamp has been

replaced. Increase the frequency to 80KHz to restart the ignition process. This is neces-

sary to preheat the new lamp filament to ensure that the hot lamp will not ignite any

sooner than the cold lamp, exceeding the balance transformer range. Start the ignition

sequence. With one cold lamp in parallel with one hot lamp, it may be necessary to

restart several times to get both lamps to ignite.

Note that the lamp and resonant circuit use a common return ground separate from the

rest of the circuit. The ballast demonstrator uses active power feedback of the sense

voltage vs. drive frequency to meet power objectives. Also note that the differential

amplifier is connected across the current sense resistor R28 to ensure a Kelvin connec-

tion. Layout of the amplifier + and – is critical for fast noise free loop response.

4-12

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Ballast Demonstrator Operation

4.4.2

Lamp Sequential

Step Description

After PB2 (boost voltage at 380V) = > 2.380V start preheat

Enable PD6 rectified lamp voltage sense

Enable PB0 and PB1 ½ bridge drive output

PB0 & PB1 12.5µS total period (80 KHz) 50% duty 180° out of phase.

Check PB4 > 20mV, then 2 lamps. If PB4 < 20mV assume a single lamp.

If PB4 < 10mV assume an empty fixture = fault & shutdown.

Determine the lamp intensity control method DALI (presence of data stream at PD4),

Swiss (presence of 50/60 Hz modulated 0 – 10V at PB6) or 0 - 10V (constant non-zero

voltage) at PB6.

4.4.3

Start and Ignition

Sequential Step

Description

Sweep PB0 and PB1 frequency down at 30KHz/sec or 33µS/sec rate.

Stop sweep at 40KHz or 25µS period (12.5µS pulses for each ½ bridge FET)

Check PB4 > 100mV (2 lamps) or > 30mV (1 lamp) for proof of ignition.

Hold ignition frequency for 10mS.

If no PD6 voltage, collapse to < 200mV for proof of ignition, increase frequency to

77KHz for preheat for 1 second.

Repeat ignition sequence 6 times then if fails, set DALI fail flag or shut down.

Disable if dimmed frequency > 60 KHz. Disable if single lamp.

Proceed to power setting command at 30KHz/sec rate as established by external con-

trol or if no internal control proceed to PB4 195mV at input terminals before gain (about

32KHz) for 100% power.

If Swiss control, proceed to max power. The Swiss continuous switch closure will cause

progressive increase in frequency at 33KHz per second. The exception for a single lamp

will be minimum frequency for 97mV (39 watts) at PB4 for 100% brightness. This is the

default power for a single lamp with no dimming.

ATAVRFBKIT / EVLD001 User Guide

4-13

7597A–AVR–02/06

Section 5

Device Design & Application

5.1

Magnetics

PFC – Power Factor Correction

Without going into the derivations of the formulas used, the inductor design is as

follows:

L = 1.4 * 90VAC * 25µS = 700µH

4.5A peak

The ON time has been discussed earlier and the OFF time maximum will occur at high

line condition at the peak of the haversine. A 16mm core was chosen for the recom-

mended power density at 200mT and 50KHz.

5.2

IXYS

The IXYS IXTP02N50D depletion mode MOSFET is used in this circuit to provide power

and a start-up voltage to the Vcc pin of the IXI859 charge pump regulator. The

IXTP02N50D acts as a current source and self regulates as the source voltage rises

above the 15V zener voltage and causes the gate to become more negative than the

source due to the voltage drop across the source resistor. Enough energy is available

from the current source circuit during the conduction angles to keep the IXI859 (U1) pin

1 greater than 14VDC as required to enable the Under Voltage Lock Out (UVLO) cir-

cuitry in the IXI859.

IXTP02N50D

DEPLETION

MODE MOSFET

USED AS

CURRENT

SOURCE

5.3

IXYS IXD611

Half- bridge

MOSFET driver

The IXD611 half bridge driver includes two independent high speed drivers capable of

600mA drive current at a supply voltage of 15V. The isolated high side driver can with-

stand up to 650V on its output while maintaining its supply voltage through a bootstrap

diode configuration. In this ballast application, the IXD611 is used in a half bridge

inverter circuit driving two IXYS IXTP3N50P power MOSFETs. The inverter load con-

sists of a serie resonant inductor and capacitor to power the lamps. Filament power is

also provided by the load circuit and is wound on the same core as the resonant induc-

tor. Pulse width modulation (PWM) is not used in this application, instead the power is

varied and the dimming of the lamps is controlled through frequency variation. It is

important to note that pulse overlap, which could lead to the destruction of the two MOS-

ATAVRFBKIT / EVLD001 User Guide

5-15

7597A–AVR–02/06

Device Design & Application

FETs due to current shoot through, is prevented via the input drive signals through the

microcontroller.

Other features of the IXD611 driver include:

• Wide supply voltage operation 10-35V

• Matched propagation delay for both drivers

• Undervoltage lockout protection

• Latch up protected over entire operating range

• +/- 50V/ns dV/dt immunity

5.4

IXYS IXI859

Charge Pump

Regulator

The IXI859 charge pump regulator integrates three primary functions central to the PFC

stage of the ballast demonstrator. First it includes a linear regulated supply voltage out-

put, and in this application the linear regulator provides 3.3V to run the microcontroller.

The second function is a gate drive buffer that switches an external power MOSFET

used to boost the PFC voltage to 380V. Once the microcontroller is booted up and run-

ning, it generates the input signal to drive the PFC MOSFET through the IXI859 gate

drive buffer. Finally, the third function provides two point regulated supply voltage for

operating external devices. As a safety feature, the IXI859 includes an internal Vcc

clamp to prevent damage to itself due to over-voltage conditions.

In general applications at start-up, an R-C combination is employed at the Vcc supply

pin that ramps up a trickle voltage to the Vcc pin from a high voltage offline source. The

value of R is large to protect the internal zener diode clamp and as a result, cannot sup-

ply enough current to power the microcontroller on it’s own. C provides energy to boot

the microcontroller. At a certain voltage level during the ramp up, the Under Voltage

Lock Out point is reached and the IXI859 enables itself. The internal voltage regulator

that supplies the microcontroller is also activated during this time. However, given the

trickle charge nature of the Vcc input voltage, the microcontroller must boot itself up and

enable PFC operation to provide charge pump power to itself. This means that the R-C

combination must be sized carefully so that the voltage present at the Vcc pin does not

collapse too quickly under load and causes the UVLO circuitry to disable device opera-

tion before the microcontroller can take over the charge pump operation. Also note that

there is an internal comparator that only releases charge pump operation when the Vcc

voltage drop below 12.85V. The charge pump is released and Vcc voltage is pumped up

to 13.15V at which time the internal comparator disables the charge pump. This results

in a tightly regulated charge pump voltage.

One problem with the R-C combination described above is that when a universal range

is used at the Vcc pin, 90-265VAC, R must dissipate nine times the power, current

squared function for power in R, over a three-fold increase of voltage from 90V at the

low end to 265V on the high end. As an alternative and as used in the ballast demon-

strator, the Vcc pin is fed voltage by way of a constant current source as previously

described in section 6.2. This circuit brings several advantages over the regular R-C

usage. First we can reduce power consumed previously by R and replace it with a circuit

that can provide power at startup. It can also provide sufficient power to run the micro-

controller unlike the R-C combination. This would be an advantage in the case that a

5-16

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Device Design & Application

standby mode is desired. Overall power consumption can be reduced by allowing the

microcontroller to enter a low power mode and shut down PFC operation without having

to reboot the microcontroller. Since the R-C combination cannot provide enough power

to sustain microcontroller operation, the microcontroller must stay active running the

PFC section to power itself.

5.5

IXYS IXTP3N50P

PolarHV N-

The IXTP3N50P is a 3A 500V general purpose power MOSFET that comes

from the family of IXYS PolarHV MOSFETs. When comparing equivalent die

sizes, PolarHT results in 50% lower R^DS(ON), 40% lower RTHJC (thermal resis-

tance, junction to case), and 30% lower Qg (gate charge) enabling a 30% - 40%

die shrink, with the same or better performance verses the 1st generation power

MOSFETs.

Channel Power

MOSFET

Within the ballast demonstrator itself the IXTP3N50 serves two functions. The first of

which is the power switching pair of devices in the half-bridge circuit that drives the

lamps. While a third device serves in the main PFC circuit as the power switch that

drives the PFC inductor.

ATAVRFBKIT / EVLD001 User Guide

5-17

7597A–AVR–02/06

Section 6

ATPWMx Demonstrator Software

This section of the application note describes the software architecture utilizing the fol-

lowing source code files and related state machines.

Main_pwmx_fluo_demo.c

ADC State Machine

COMMAND CONTROL State Machine

Pfc_ctrl.c

PFC State Machine

Lamp_ctrl.c

Lamp State Machine

Associated header files:

• Main_pwmx_fluo_demo.h

• Pfc_ctrl.h

• Lamp_ctrl.h

Including the following peripherals:

• TIMER0, ADC, amplifier, Comparator0, PSC0, PSC2, PLL, DALI via

EUSART

The application has been designed to work either with the AT910PW3 and 2.

In order to operate ballast operate, three primary control systems should run simulta-

neously. One for the PFC control, one for the Lamp control, and one for the Command

control of the ballast.

ATAVRFBKIT / EVLD001 User Guide

6-19

7597A–AVR–02/06

ATPWMx Demonstrator Software

Furthermore, in order to work properly the state machines require input data. The ana-

log data is provided primarily by an auto running interrupt mode ADC state machine.

The complete software package for the application is split into the functional blocks in

the diagram shown below. While the variables are identified as follows.

global

gv_

gs_

global volatile

global static

Voltage and current variables are identified by the following examples.

g_v or g_i

global - voltage/current

gv_v or gv_i

gs_v or gs_i

global volatile - voltage/current

global static - voltage/current

Figure 6-1. Demo Software Architecture

6.1

Main_pwmx_fluo_de This file executes all the peripheral initializations and then schedules the different con-

mo.c

trol tasks.

The ADC and the Command control state machines are also included in this file. The

ADC machine is controlled via interrupts.

6-20

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

ATPWMx Demonstrator Software

6.1.1

ADC STATE

MACHINE

The ADC state machine functional diagram is shown below:

Figure 6-2. ADC State Machine

ADC_OFF

V_HAVERSINE_CONV

V_BUS_CONV

ZERO_TEN_VOLT_CONV

g_time_waiting_since_latest_temperature_conv >=

TIME_TO_WAIT_BETWEEN_TWO_TEMPERATURE_CONV

TEMPERATURE_CONV

gv_lamp_on == 1

V_LAMP_CONV

gv_lamp_on == 1

gv_request_lamp_off == 0

I_LAMP_CONV

gv_lamp_on == 1

gv_request_lamp_off == 0

gs_i_lamp_number_of_conversions < 2

The different states are outlined below:

ADC_OFF

The ADC was previously off. This is the first conversion and is not necessarily valid.

Start the first V_HAVERSINE_CONV conversion.

ATAVRFBKIT / EVLD001 User Guide

6-21

7597A–AVR–02/06

ATPWMx Demonstrator Software

V_HAVERSINE_CONV

Get back the v_haversine result.

Start the next V_BUS_CONV conversion.

V_BUS_CONV

Get back the v_bus result.

Start the next ZERO_TEN_VOLT_CONV conversion.

ZERO_TEN_VOLT_CONV

Get back the zero_ten_volt_result and make a slipper filter with 512 conversion results.

Start the V_HAVERSINE_CONV, the TEMPERATURE_CONV, or the V_LAMP_CONV

conversion depending on g_time_waiting_since_latest_temperature_conv and

gv_lamp_on.

TEMPERATURE_CONV

Get back the temperature_result.

Start the V_HAVERSINE_CONV or the V_LAMP_CONV conversion depending on

gv_lamp_on.

V_LAMP_CONV

Get back the v_lamp result.

Start the v_haversine or the i_lamp conversion depending on gv_lamp_on and

gv_request_lamp_off.

If a lamp off (gv_request_lamp_off == 1) has been requested by the command control

task or a lamp fault mode on Lamp_ctrl.c file, the PSC2 and the amplifier0 are switched

off and the following variables are set in at the following values:

• gv_lamp_on = 0;

• gv_lamp_state = LAMP_OFF;

• gv_pfc_state =

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED;

Then a V_HAVERSINE_CONV conversion is started.

Else an I_LAMP_CONV conversion is started.

6-22

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

ATPWMx Demonstrator Software

I_LAMP_CONV

Get back the i_lamp result and depending on gv_lamp_on and gv_request_lamp_off,

start another I_LAMP_CONV conversion in order to increase the accuracy and resolu-

tion of the i_lamp measurement then start another cycle beginning with a

V_HAVERSINE_CONV conversion.

If a lamp off (gv_request_lamp_off == 1) has been requested by the command control

task or a lamp fault mode on Lamp_ctrl.c file, the PSC2 and the amplifier0 are switched

off and the following variables are set at the following values:

• gv_lamp_on = 0;

• gv_lamp_state = LAMP_OFF;

• gv_pfc_state =

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED;

Then a V_HAVERSINE CONV conversion is started.

6.1.2

ADC State Machine

Global Variables

6.1.2.1 Input variables

which have an

• g_v_lamp_on is normally set only by the CONFIGURE_LAMP_PREHEAT state of

the Lamp state machine in the Lamp_ctrl.c file.

impact on ADC state

machine

• gv_request_lamp_off can be set by the command control state machine in the case

the user requests to switch the lamp off.

6.1.2.2 Output variables

which can impact

the other state

• g_v_lamp_on which can be cleared during the V_LAMP_CONV or I_LAMP_CONV

state in case the gv_request_lamp_off has been set by the command control state

machine.

machines

• gv_lamp_state within the Lamp state machine in the Lamp_ctrl.c file can be set to

LAMP_OFF during the V_LAMP_CONV or I_LAMP_CONV state.

• gv_pfc_state within the PFC state machine in the Pfc_ctrl.c file can be set to

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED state during the

V_LAMP_CONV or I_LAMP_CONV state.

6.1.3

6.1.4

Miscellaneous

The gv_lamp_on checks during V_LAMP_CONV and I_LAMP_CONV states are nor-

mally useless because gv_lamp_on is reset only by the same states of the ADC state

machine.

COMMAND

CONTROL STATE

MACHINE

The Command Control state machine centralizes the 0-10V, SWISS, and DALI controls

in order to switch PFC operation On or Off and to set the lamp control instructions given

by the user.

The Command Control state machine functional diagram is shown below:

ATAVRFBKIT / EVLD001 User Guide

6-23

7597A–AVR–02/06

ATPWMx Demonstrator Software

Figure 6-3. Control State Machine

INIT_SELECT_CONTROL_MEANS

No immediate DALI message

DALI message

g_control_means = =

USE_DALI_CONTROL

WAIT_FOR_FIRST_COMMAND

INIT_DALI

SET_DALI_IN_RX_MODE

g_control_means = =

USE_ZERO_TEN_VOLT_CONTROL

g_control_means = =

USE_SWISS_CONTROL

No DALI message

WAIT_FOR_DALI_MESSAGE

DALI message

PINE2 = = 0

Swiss command

ZERO_TEN_VOLT_CONTROL

SWISS_CONTROL

DALI_MESSAGE_EXPLOITATION

DALI expects an answer

WAIT_FOR_DALI_TX_COMPLETED

DALI TX completed

gv_request_lamp_off = = 1 during V_LAMP_CONV or

I_LAMP_CONV in ADC state machine in ADC state machine

CONTROL_OFF

The different states are outlined below:

INIT_SELECT_CONTROL_MEANS

The DALI bus is initialized in order to be able to receive a DALI message in case this

bus is used as the control means for the ballast. In case a DALI message arrives at

once, g_control_means is set to USE_DALI_CONTROL, and the gv_control_state is set

to DALI_MESSAGE_EXPLOITATION, otherwise gv_control_state is set to

WAIT_FOR_FIRST_COMMAND.

6-24

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

ATPWMx Demonstrator Software

WAIT_FOR_FIRST_COMMAND

The three control means are scrutinized, and the first command caught sets the

g_control_means variable according to the command received. Then the command is

applied to the corresponding command state machine.

ZERO_TEN_VOLT_CONTROL

Analog control with 0-10V laboratory supply. PINE2 allows the lamp to be switched on

and off.

SWISS_CONTROL

Read the input pin.

Analyze the touch dim command.

Set the control variable values corresponding to the user request.

INIT_DALI

Initialize the DALI microcontroller peripheral and jump to SET_DALI_IN_RX_MODE.

SET_DALI_IN_RX_MODE

Set the DALI bus in RX mode and jump to the WAIT_FOR_DALI_MESSAGE state or to

the DALI_MESSAGE_EXPLOITATION state in case a message had been received as

soon as the DALI was ready.

WAIT_FOR_DALI_MESSAGE

Wait for a DALI message, in the case one arrives, jump to the

DALI_MESSAGE_EXPLOITATION state.

DALI_MESSAGE_EXPLOITATION

Analyze the DALI message content and modify control variables according to the

request. In case a request from the DALI master is expected, answer, and jump back to

SET_DALI_IN_RX_MODE state in order to wait for the next command, or jump to the

WAIT_FOR_DALI_TX_COMPLETED state in case the TX is not completed.

WAIT_FOR_DALI_TX_COMPLETED

Stay in this state until the DALI transmission is completed. As soon as the transmission

is done, jump to SET_DALI_IN_RX_MODE in order to reinitialize the DALI bus for the

next message.

Notes: 1. Control state machine Global variables

ATAVRFBKIT / EVLD001 User Guide

6-25

7597A–AVR–02/06

ATPWMx Demonstrator Software

6.1.4.1 Input variables

which have an

impact on the

Control state

• None

machine:

6.1.4.2 Output variables

which can impact

other state

•

gv_pfc_state is set from PFC_OFF state to

INIT_PFC_HAVERSINE_CHECK state on the PFC state machine in the

Pfc_ctrl.c file when the user requests the lamp to switch on.

machines

• gv_request_lamp_off is set by the control state machine.

6.2

Pfc_ctrl.c

This file executes the PFC state machine according to the scheduler in the

Main_pwmx_fluo_demo.c file.

6.2.1

PFC STATE

MACHINE

The PFC state machine functional diagram is shown below:

6-26

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

ATPWMx Demonstrator Software

Figure 6-4. PFC State Machine

PFC_OFF

transition request on control state machine

INIT_PFC_HAVERSINE_CHECK

HAVERSINE_CHECK

g_pfc_time_since_previous_timer_reset < =

HAVERSINE_MIN_CHECK_TIME

PFC_HAVERSINE_CHECK

HAVERSINE_PEAK_MIN < = gs_v_haversine_peak < =

HAVERSINE_PEAK_MAX

(0.95 * gs_v_haversine_peak) < = gv_v_bus < = V_BUS_SET_POINT

CONFIGURE_PFC_SOFT_START

START_PFC_SOFT_START

gs_pfc_soft_start_tries < = PFC_START_MAX_TRIES

PFC_PROBLEM

PFC_SOFT_START

gvs_pfc_soft_start_shots < = PFC_MAX_START_SHOTS

Get_v_bus() > = V_BUS_OVERSHOOT

PFC_DELAY_FOR_NEXT_SOFT_START

gs_multiplier_pfc_time_since_previous_timer_reset > =

DELAY_MULTIPLIER_FOR_NEXT_PFC_SOFT_START

gvs_zcd_occures

START_PFC_CONTROL_LOOP

SET_MICROCONTROLLER_NOMINAL_SPEED

PFC_CONTROL_LOOP

gv_request_lamp_off = = 1 during V_LAMP_CONV or

I_LAMP_CONV in ADC state machine in ADC state machine

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED

ATAVRFBKIT / EVLD001 User Guide

6-27

7597A–AVR–02/06

ATPWMx Demonstrator Software

The different states are outlined below:

PFC_OFF

Nothing happen, the exit from this state is requested by the Command Control state

machine in the Main_pwmx_fluo_demo.c file.

INIT_PFC_HAVERSINE_CHECK

Initialize the control values of the PFC.

Then jump to the HAVERSINE_CHECK state.

HAVERSINE_CHECK

Measure the haversine peak voltage during HAVERSINE_MIN_CHECK_TIME.

Then jump to the PFC_HAVERSINE_CHECK state.

PFC_HAVERSINE_CHECK

PFC haversine peak must be between HAVERSINE_PEAK_MIN and

HAVERSINE_PEAK_MAX (90VAC and 265VAC).

If the haversine value is OK, set the max pulse width allowed and jump to the

CONFIGURE_PFC_SOFT_START state.

Else go back to INIT_PFC_HAVERSINE_CHECK state.

CONFIGURE_PFC_SOFT_START

Configures the peripherals PSC0 and comparator0 to soft start the PFC.

Then jump to START_PFC_SOFT_START.

START_PFC_SOFT_START

Check that the soft start has been tried less than PFC_START_MAX_TRIES

If OK then start PSC0 and jump to PFC_SOFT_START state.

Else immediately jump to the PFC_PROBLEM state.

PFC_SOFT_START

The PFC soft start consists of PFC_MAX_START_SHOTS pulses configured by

PFC_SOFT_START_CONFIGURATION.

If a zero crossing detection appears, jump to the START_PFC_CONTROL_LOOP state

Else

INIT_PFC_HAVERSINE_CHECK,

PFC_DELAY_FOR_NEXT_PFC_SOFT_START, or PFC_PROBLEM state depending

on the different conditions detailed in the PFC diagram.

6-28

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

ATPWMx Demonstrator Software

PFC_DELAY_FOR_NEXT_PFC_SOFT_START

In case the soft start fails, the

software

has

wait

DELAY_FOR_NEXT_PFC_SOFT_START*DELAY_MULTIPLIER_FOR_NEXT_PFC_S

OFT_START,

before trying a new soft start by going back to the START_PFC_SOFT_START state.

START_PFC_CONTROL_LOOP

A zero crossing detection occurs so the PFC is now started, and the PFC can be config-

ured to autoretrigg mode.

The power will then be sufficient to set the microcontroller at its nominal speed on the

next SET_MICROCONTROLLER_NOMINAL_SPEED state.

SET_MICROCONTROLLER_NOMINAL_SPEED

The PFC is now running, so the microcontroller can now run at its full speed and the

lamp can be switched on.

Then the gv_pfc_state is set to PFC_CONTROL_LOOP. This directly impacts the lamp

state machine which goes from

CONFIGURE_LAMP_PREHEAT state.

LAMP_OFF state to

PFC_CONTROL_LOOP

PFC is now running... This is the normal PFC loop control.

In the case g_v_request_lamp_off is equal to 1 during a V_LAMP or an I_LAMP state of

the ADC state machine, the PFC will be shut down and the microcontrollers speed will

be decreased in order to reduce power consumption in the new

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED state.

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED

Switch off the PFC.

Switch the microcontroller to a low power consumption mode.

Then go back to PFC_OFF state.

6.2.2

PFC State Machine

Global variables

6.2.2.1 Input variables

which have an

• gv_pfc_state is set from PFC_OFF state to INIT_PFC_HAVERSINE_CHECK state

on the Control state machine in Main_pwmx_fluo_demo.c file when the user

requests to switch the lamp on.

impact on PFC state

machine:

• gv_pfc_state is also set from PFC_CONTROL_LOOP state to

SHUT_DOWN_PFC_AND_SLOW_DOWN_UC_SPEED state on the Control state

machine in Main_pwmx_fluo_demo.c file when the user requests to switch the lamp

off.

ATAVRFBKIT / EVLD001 User Guide

6-29

7597A–AVR–02/06

ATPWMx Demonstrator Software

6.2.2.2 Output variables

which can impact

other state

• gv_lamp_state is set from the LAMP_OFF state to the

CONFIGURE_LAMP_PREHEAT state when the PFC is ready on the

PFC_CONTROL_LOOP state.

machines:

6.3

Lamp_ctrl.c

This file executes the Lamp state machine according to the scheduler in the

Main_pwmx_fluo_demo.c file.

6.3.1

Lamp State Machine The Lamp state machine functional diagram is shown below:

The different states are outlined below:

Figure 6-5. Lamp State Machine

LAMP_OFF

gv_pfc_state==PFC_CONTROL_LOOP

CONFIGURE_LAMP_PREHEAT

LAMP_PREHEAT

gs_lamp_ignition_tries <

LAMP_IGNITION_MAX_TRIES

g_lamp_time_multiplier >= LAMP_PREHEAT_TIME_MULTIPLIER

RESTART_PREHEAT LAMP_NUMBER_CHECK

gs_lamp_check_number >= 15

g_number_of_lamps > 0

START_IGNITION

g_inverter_comparison_values.ontime1 <

INVERTER_XXX_LAMP_IGNITION_HALF_PERIOD

IGNITION

Get_i_lamp() >= ONE_LAMP_MINIMUM_IGNITION_CURRENT

&& et_v_lamp() < IGNITION_MAXIMUM_IGNITION_VOLTAGE

NO_LAMP

START_RUN_MODE

g_inverter_comparison_values.ontime1 >=

INVERTER_RUN_HALF_PERIOD

TOO_MANY_LAMP_IGNITION_TRIES

RUN_MODE

gv_request_lamp_off ==1 during V_LAMP_CONV or

I_LAMP_CONV in ADC state machine in ADC state machine

6-30

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

ATPWMx Demonstrator Software

LAMP_OFF

Nothing happens, the exiting of this state takes place as soon as the gv_pfc_state is set

to PFC_CONTROL_LOOP.

CONFIGURE_LAMP_PREHEAT

This is the first time the lamp is attempted to be started once the user has requested to

switch it on.

Configure the amplifier0, which is used to measure the current, then configure the PSC2

according to the definitions in the config.h file, and initialize all the lamp control

variables.

Then jump to the LAMP_PREHEAT state.

LAMP_PREHEAT

Starts the preheat sequence for LAMP_PREHEAT_TIME.

Then jump to the LAMP_NUMBER_CHECK state.

LAMP_NUMBER_CHECK

Check the preheat current in order to know whether there is one or two lamps

Then jump to the START_IGNITION state.

In the case there is no lamp, jump to the NO_LAMP state.

START_IGNITION

Decrease the frequency from the init frequency down to

INVERTER_IGNITION_HALF_PERIOD.

Then jump to the IGNITION state.

IGNITION

The ignition sequence consists of maintaining the ignition frequency determined by

INVERTER_IGNITION_HALF_PERIOD for 10ms, and then checking if ignition occurs

by measuring lamp current and voltage.

In case it is... START_RUN_MODE.

In case it isn’t... RESTART_PREHEAT.

RESTART_PREHEAT

Reconfigure the Inverter with the Restart parameters, then go to LAMP_PREHEAT.

If Ignition fails too many times... Go to TOO_MANY_LAMP_IGNITION_TRIES.

START_RUN_MODE

Increase the frequency from the init frequency, INVERTER_IGNITION_HALF_PERIOD.

Then jump to the RUN_MODE state.

ATAVRFBKIT / EVLD001 User Guide

6-31

7597A–AVR–02/06

ATPWMx Demonstrator Software

RUN_MODE

Normal control loop to have the light in accordance with the gv_lamp_preset_current

variable that is permanently updated in the command control state machine in the

Main_pwmx_fluo_demo.c file.

The transition from the RUN_MODE state to the LAMP_OFF state is done in the ADC

state machine during the V_LAMP_CONV or I_LAMP_CONV state in the case the

gv_request_lamp_off has been set by the command control task in the

Main_pwmx_fluo_demo.c file.

TOO_MANY_LAMP_IGNITION_TRIES

If the ignition has failed LAMP_IGNITION_MAX_TRIES, a lamp switch off is requested

by setting the gv_request_lamp_off and the LAMP_OFF state takes effect during the

next I_LAMP_CONV or the V_LAMP_CONV state of the ADC state machine in the

Main_pwmx_fluo_demo.c file.

NO_LAMP

If no lamp is detected during the LAMP_NUMBER_CHECK, a lamp off is requested by

setting the gv_request_lamp_off and the effective return to the LAMP_OFF state takes

place during the next I_LAMP_CONV or the V_LAMP_CONV state of the ADC state

machine in the Main_pwmx_fluo_demo.c file.

6.3.2

Lamp state machine

Global variables

6.3.2.1 Input variables

which have an

• The transition from LAMP_OFF to PFC_CONTROL_LOOP is done when the

gv_pfc_state is set to PFC_CONTROL_LOOP in Pfc_ctrl.c file.

impact on the Lamp

state machine

• The transition from the RUN_MODE state to the LAMP_OFF state is done in

the ADC machine during the V_LAMP_CONV or I_LAMP_CONV state in the

case gv_request_lamp_off has been set by the command control task in the

Main_pwmx_fluo_demo.c file.

6.3.2.2 Output variables

which can impact

• A lamp off (gv_request_lamp_off == 1 ) can be set by the lamp fault mode. The effect

of this request takes place in the I_LAMP_CONV or V_LAMP_CONV in the ADC

state machine in the Main_pwmx_fluo_demo.c file.

other state machine

6-32

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Section 7

Conclusion

The ballast demonstrator shows that the AT90PWMx microcontroller can control and

regulate fluorescent lamps from any of the three (DALI, 0 – 10VDC & SWISS) methods

of dimming. It can automatically sense the control method used thereby providing lamp

controller manufacturers with maximum flexibility in their design. One or more lamps can

be controlled with flexibility and precision. Universal input and power factor control adds

to the flexibility of the design with a minimal addition of more expensive active

components.

Additionally, the programmability of the microcontroller offers the lamp manufacturer the

flexibility to add more design features than are shown here to enhance their market

position. The ballast demonstrator, with it's many features, does not address all the pos-

sibilities available to the lamp controller designer.

7.1

Appendix 1:

SWISS DIM

The SwissDIM allows dimming control using a simple switch connected to the mains

phase.

SwissDIM operation

The SwissDIM operation is as follows:

With the lamp switched on:

A short push switches the luminary off and stores the current light level.

A long push gradually dims the light level. (Change direction by briefly taking your finger

off the button and pressing down again)

With the lamp switched off:

A short push switches the lamp on to the last light level used. (Optional: Use a soft start

from minimum level to last level used)

A longer push starts on the last light level used and gradually raises the light level to the

required brightness.

ATAVRFBKIT / EVLD001 User Guide

7-33

7597A–AVR–02/06

Conclusion

The lamps are dimmed for as long as the switch is pressed or until the minimum or max-

imum dimmer setting is reached.

7.2

Appendix 2:

Capacitor

Coupled Low

Voltage Supply

Small currents for the low voltage supply can be obtained from the AC line at

low loss by means of capacitor coupling as shown in the figures below. To esti-

mate the required size of the coupling capacitor, use the following relationships

for current, charge, voltage and capacitance.

1.dQ/dt = I_DC

Figure 7-1. Negative Line Half Cycle

V_D

- V_C1

I_DC

V_D

Ich1

-V_PK

“Negative” line half -cycle:

C1 charges to Vpk - V_Dwith polarity shown.

Figure 7-2. Positive Line Half Cycle

V_D

+ V_C1

+V_PK

Ich2

I_DC

V_D

“Positive” line half-cycle:

C1 charges to Vpk - V_D- Vo with polarity shown.

1.dV = 2Vpk-Vo-2V_D

2.dQ = CdV or C = dQ/dV

For example, to obtain 15 ma at 20 VDC from a 220 Vrms 50 Hz line:

1.dQ/dt = (15 millijoules/sec)/(50 cycles/sec) or 0.3 millijoules / cycle.

7-34

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Conclusion

2.Over 1 cycle, the coupling capacitor (C1) will charge from –220V x 1.4 to

+220V x 1.4 – 20V- V_D. dV = 2*Vpk-Vo-2V_D. dV ~= 600V.

3. The required C1 ~ 0.3 millijoules/600V or 0.5 uF

In practice, C1 may have to be larger depending on the amount of ripple allowed by C2

and to account for component tolerances, minimum voltage, and current in the regulator

diode. C1 must be a non-polarized type with a voltage rating to withstand the peak line

voltage including transients. A high quality film capacitor is recommended.

7.3

Appendix 3: PFC The function of the PFC boost regulator is to produce a regulated DC supply voltage

from a full wave rectified AC line voltage while maintaining a unity power factor load.

Basics

This means that the current drawn from the line must be sinusoidal and in phase with

the line voltage.

The ballast PFC circuit accomplishes this by means of a boost converter operating (See

Figure 7-3) at critical conduction so that the current waveform is triangular (See Figure

7-4).

Figure 7-3. PFC Boost Regulator

PFC BOOST REGULATOR

Ioff

PFC Inductor

Vbus

POWER

VOLTAGE

Vin

PFC Switch

Ion = (Vin x t )/ L

The boost switch ON time is maintained constant over each half cycle of the input volt-

age sinusoid. Therefore the peak current for each switching cycle is proportional to the

line voltage which is nearly constant during Ton. (Ipk = Vin x Ton/L). Since the average

value of a triangular waveform is ½ its peak value, the average current drawn is also

proportional to the line voltage.

Figure 7-4. Main voltage supply cutting

Main Supply

Voltage

Actual switching frequency

Ipeak = Vin x Ton / L

is higher than shown

Imean = Ipeak/2

Ioff

PFC

DRIVING

ATAVRFBKIT / EVLD001 User Guide

7-35

7597A–AVR–02/06

Conclusion

7.4

Appendix 4: Bill

Of Material

Figure 7-5. Bill of Materials 1

7-36

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Conclusion

Figure 7-6. Bill of Materials 2

ATAVRFBKIT / EVLD001 User Guide

7-37

7597A–AVR–02/06

Conclusion

Figure 7-7. Bill of Materials 3

7-38

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

Conclusion

7.5

Appendix 5:

Schematics

TO-220

VDC

R72

100

D27

75-F17724332000

PPC62KW-3JCT-ND

62K 3W

1A-600V/FR

IXTP02N50D

VOLTAGE DOUBLER

C46

BOOSTVSUP

CONNECTOR

75-WYO222MCMBF0K

DF10SDI-ND

R73

22 OHM

D28

LL4148-13

.022uF

P7186-ND

BR1

VARISTOR265VAC

15V Zener

18K

RV1

100 OHM

LL4148-13

15V

VCC

TP3

15V

1A-600V/FR

110/220-VIN

600V

.1uF 600V

1nF

PLK1069-ND

20K

250VAC

CM CHOKE

VCC

D26

TP4

TP5

nF 600

PB5 ADC6

VCC

VCAP

VSUP

GND

GND GND

1800 pF 250VAC

AMPS PEAK

OVERTEMP DET.

VOUT

LL4148-13

10uF 25V

47 uF

RT1

10K

0.264

1.1V

80C

25C

MURS160DICT-ND

25C

P5948-ND

250 uA MAX.

PD0

GATE

75-MKP1840410634

1uF

IXI859S1

22uF@450V

VBUS

1A-600V/FR

IXTP3N50P

TP6

R10

GATEDR

50uF 475V

R11

C10 .02 uF

BOOSTVSUP

200 OHM

LPFC

R12

BOOST10V

VCC

R14

PD7 ACMP0

VCC

BOOSTVSUP

MBRS140CT

R13

LL4148-13

R15

22K

LL4148-13

PB2 ADC5

PB7ADC4

400V BUS TEST

T4A

HAVERSINE TEST

MBRS140CT

LL4148-13

D10

C13

15V

C14

.1uF 600V

PROXIMITY

R18

TP8

GATEHI

.1 uF 600V FILM

100K 1/4W

TRANSFORMER

REMOVE FOR SINGLE LAMP OP.

Isense GND

R19

1A-600V/FR

IXTP3N50P

C11

.01uF 1500V FILM

R21

R22

200 OHM

3 W

RESONANT CAP

JP2

200 OHM

3 W

SINGLE LAMP OP

505-M100.01/2000/5

VCC

R20

JUMPER

C15

.1uF

C16

BALANCE

C17

PB1

C12

HIN

LIN

400K

VCC

Isense GND

HF_OUT

.1uF

CLOSE TO U2

VCC

5 nF

PB0

REMOVE FOR SINGLE LAMP OP.

R23

IXTP3N50P

COM

T4C

R25

T4B

C18

R24

D11

TP9

GATELO

C20

LL4148-13

400K

TP7

VCC

C19

IXD611S1

TP-7

0.8

R26

Isense GND

220nF 100V

PD5 ACMP2

TRANSFORMER

220nF 100V

TRANSFORMER

VCC

TP-6

R30

460

Swiss Control

R29

.001uF

LAMP VOLT DET.

END OF LIFE DC

D13

MBRS140CT

R27

R28

/1%

1.2K

D12

LL4148-13

DAC CONTROLLED WINDOW

COMP.

FL2

FL1

CONNECTOR

D15

R32

R31

VCC

R33

1.25 TO 2.75 NORMAL

1.00 TO 3.00 END OF

LIFE T8

SWISS

PB4 AMP0+

1A-600V/FR

200K

D16

1.8

D14

LL4148-13

Flourescent Lamp

D17

LL4148-13

HIGH FET CURRENT

ALARM

LL4148-13

R34

10K

TP-8

CURRENT SENSE FOR

POWER CALC

PD6 ACD3

LAMP MISSING DET.

LAMP CURRENT DET.

D18 LL4148-13

RECT. LAMP VOLTAGE DET.

T4D

T4E

IGNITION, RAMP, MISSING LAMP DET.

ANALOG INPUT

C22

C21

NOTES:

220nF 100V

TRANSFORMER

Isense GND

OPEN FILAMENTS DETECTED BY 1/2 BRIDGE CURRENT, ONE LAMP

JUMPER, RECT LAMP VOLTAGE. OPTION IN CODE TO ACCEPT

ONE LAMP W/DALI FLAG OR FAULT.

PRELIMINARY

WL Williamson & ASSOC

Ballast Power Section

Document Number

Title

Size

Rev

3.1

C-2346-2

Date:

Friday, September 23, 2005

Sheet

ATAVRFBKIT / EVLD001 User Guide

7-39

7597A–AVR–02/06

Conclusion

SINGLE LAMP OPERATION PIN

JUMPER IN

C48

SPARE IF CODE RECOGNIZES SINGLE LAMP

JP3

THROW AWAY JUMPER FOR DUAL

LAMP

R70

.01uF

PSCIN0

JUMPER

R35 12K

OHM

HAVERSINE

PB7ADC4

FREQ. IN

PD0

GND

PDO (PSCOUT00/XCK/SS_A)

(ADC4/PSCOUT01) PB7

(ADC7/ICP1B) PB6

(ADC6/INT2) PB5

(AMP0+) PB4

R36

100

ADC7

VCC

RESET*

PEO (RESET/OCD)

PB5 ADC6

TEMP SENSE

PDI

PD1 (PSCIN0/CLK)

PD4

VCC

CURRENT SENSE

PB4 AMP0+

SCK

VCC

PDO

PD2 (PSCIN2/OC1A/MISO_A)

C25

1uF

PD3

CURRENT SENSE

C24

.1uF

R37

PD3 (TXD/DALI/OC0A/MOSI_A)

(AMP-) PB3

C23

.1uF

22 OHM

VCC

AREF

D19

LOCATE IN CENTER OF BOARD

TP1

GND

AGND

HEADER6PIN

VCC

C29

TESTPT

PB0

PB1

PBO (PSCOUT20)

PB1 (PSCOUT21)

PE1 (OC0B/XTAL1)

PE2 (ADC0/XTAL2)

PD4 (ADC1/RXD/DALI/CP1A/SCL_A)

AVCC

LL4148-13

VCC

400

DETECT

R38

C28

1nF

10uF 25V

PB2 ADC5

(ADC5/INT1) PB2

(ACMP0) PD7

C27

.1uF

VCC

PE1

PE2

PD4

R68

22 OHM

PFC ZERO

400

DET.

2.2K

PD7 ACMP0

PD6 ACD3

R40

10K

R41

R71

10K

RECTIFIED LAMP VOLTAGE

R39

12K

BC857B

(ADC3/ACMPM/INT0) PD6

(ADC2/ACMP2) PD5

C30

.1uF

ISO1

4.7K

PD5 ACMP2

R42

PE1

BC857BLT1OSCT-ND

C32

.1uF

PD4

C26

.1uF

100

C47

.1uF

LDA111S

C31

100PF

R44

100

AT90PWM2

END OF LIFE CKT

RH02DICT-ND

R43

CON2

4.7K

BR2

0.5A 200V

BC846BCT

SWISS

VCC

R45

100

C33

.1uF

R49

R46

10K

R47

R48

10R

100

470

TP2

ISO2

LDA111S

TESTPT

BZX84C5V6SDICT-ND

R50

100

BC846BCT

VCC

R51

10K

PD3

C45

47nF

CON2

10V

R53

100

R52

PE2

CON4

1. DALI

2. DALI

DALI must recognize the difference in

pulse rate between the DALI input,

the VCO output range and the much

longer Swiss control.

ISO4

LDA111S

to 10

control (+)

control (-)

R69

100

10V

R54

R67

10V

VCC

R57

10V

R55

R59

4.7K

R56

1.5K

R58

VDD

Reset

100

PNP BCE

Q10

Disch Output

PNP BCE

Thres

Trig

Vss

R60

ADC7

Control

R62

100 K

LMC555CM

R61

330

ISO3

LDA111S

C35

1uF

R63

100

C36

C37

.01uF

.1uF

10V

R65

C38

C39

D20

R64

10 VDC

HF_OUT

BOOST10V

200 pF

KV 200 pF 1 KV

LL4148-13

100 OHM

D21

LL4148-13

D22

LL4148-13

C41

10uF 25V

C40

.1uF

D23

36 KHz

10V Zener

2ND SECONDARY ON PFC TRANSFORMER

D24

LL4148-13

D25

LL4148-13

R66

C43

C44

C42

nF 600 V

200 pF 1 KV 200 pF 1 KV

WL Williamson & ASSOC

Ballast Control

PRELIMINARY

Title

Size

Document Number

Rev

3.1

C-2346-2

Date:

Friday, September 23, 2005

Sheet

7-40

ATAVRFBKIT / EVLD001 User Guide

7597A–AVR–02/06

IXYS

CORPORATION

IXYS Corporation

Micronix, Inc.

3540 Bassett St.

145 Columbia

Santa Clara, CA. 95054-2704

(408) 982-0700 FAX (408) 496-0670

www.ixys.com

Aliso Viejo, CA. 92656-1490

(949) 831-4622 FAX (949) 831-4628

www.claremicronix.com

Clare, Inc.

78 Cherry Hill Drive

MicroWave Technology, Inc.

4268 Solar Way,

Fremont, CA. 94538

(510) 651-6700 FAX (510) 651-2208

www.mwtinc.com

Beverly, MA. 01915-1048

(978) 524-6700 FAX (978) 524-4700

www.clare.com

Westcode Semiconductors Ltd.

Langley Park Way, Langley Park

Chippenham, Wiltshire, SN15 IGE

Directed Energy, Inc.

2401 Research Blvd., Suite 108

Fort Collins, CO. 80526

(970) 493-1901 FAX (970) 493-1903

www.directedenergy.com

+44 (0) 1249 444524 FAX +44 (0) 1249 659448

Westcode Semiconductors Inc.

3270 CherryAvenue

Long Beach, CA 90807

USA

(562) 595-6971 FAX (562) 595-8182

www.westcode.com

IXYS RF

2401 Research Blvd.,

Fort Collins, CO. 80526

(970) 493-1901 x26 FAX (970) 493-1903

www.ixysrf.com

IXYS_{Semiconductor}

IXYS Semiconductor GmbH

EdisonstraBe 15

D-68623 Lampertheim

+49 6206 503-0 FAX +49 6206 503-627

e-mail:A.Vanroosbroeck@ixys.de

Atmel Corporation

Atmel Operations

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 487-2600

Memory

RF/Automotive

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 436-4314

Theresienstrasse 2

Postfach 3535

74025 Heilbronn, Germany

Tel: (49) 71-31-67-0

Fax: (49) 71-31-67-2340

Regional Headquarters

Microcontrollers

Europe

Atmel Sarl

Route des Arsenaux 41

Case Postale 80

CH-1705 Fribourg

Switzerland

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 436-4314

1150 East Cheyenne Mtn. Blvd.

Colorado Springs, CO 80906, USA

Tel: 1(719) 576-3300

Fax: 1(719) 540-1759

La Chantrerie

BP 70602

44306 Nantes Cedex 3, France

Tel: (33) 2-40-18-18-18

Fax: (33) 2-40-18-19-60

Biometrics/Imaging/Hi-Rel MPU/

High Speed Converters/RF Datacom

Avenue de Rochepleine

BP 123

38521 Saint-Egreve Cedex, France

Tel: (33) 4-76-58-30-00

Tel: (41) 26-426-5555

Fax: (41) 26-426-5500

Asia

Room 1219

Chinachem Golden Plaza

77 Mody Road Tsimshatsui

East Kowloon

Hong Kong

Tel: (852) 2721-9778

Fax: (852) 2722-1369

ASIC/ASSP/Smart Cards

Zone Industrielle

13106 Rousset Cedex, France

Tel: (33) 4-42-53-60-00

Fax: (33) 4-42-53-60-01

Fax: (33) 4-76-58-34-80

1150 East Cheyenne Mtn. Blvd.

Colorado Springs, CO 80906, USA

Tel: 1(719) 576-3300

Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

Fax: 1(719) 540-1759

Scottish Enterprise Technology Park

Maxwell Building

East Kilbride G75 0QR, Scotland

Tel: (44) 1355-803-000

Tel: (81) 3-3523-3551

Fax: (81) 3-3523-7581

Fax: (44) 1355-242-743

Literature Requests

www.atmel.com/literature

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or

otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET

FORTH IN ATMEL’S TERMS AND CONDITIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER

AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL

ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT

LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR

INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no

representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make

changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information

contained herein. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or

sustain life.

marks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.

Printed on recycled paper.

7597A–AVR–02/06

厂商	型号	描述	页数
IXYS	IXD1201P341PR-G	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201P412PR-G	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201P422PR-G	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201P442PR-G	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201P571DR-G	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201P571MR-G	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201P592MR	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201T222DR	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201T312MR	[ Fixed Positive Standard Regulator ]	22 页
IXYS	IXD1201T312MR-G	[ Fixed Positive Standard Regulator ]	22 页
