EZHV-F81C1-1LPGS-F6500

型号：

EZHV-F81C1-1LPGS-F6500

描述：

小包装效率高[ Small package with high efficiency ]

品牌：

EVERLIGHT[ EVERLIGHT ELECTRONICS CO., LTD ]

页数：

27 页

PDF大小：

876 K

下载PDF手册

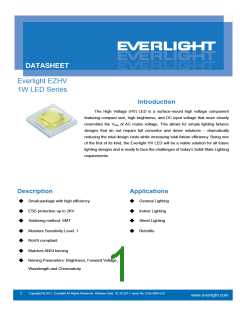

Everlight EZHV
1W LED Series
Introduction
The High Voltage (HV) LED is a surface-mount high voltage component
featuring compact size, high brightness, and DC input voltage that more closely
resembles the Vrms of AC mains voltage. This allows for simple lighting fixtures
designs that do not require full convertor and driver solutions – dramatically
reducing the total design costs while increasing total fixture efficiency. Being one
of the first of its kind, the Everlight HV LED will be a viable solution for all future
lighting designs and is ready to face the challenges of today’s Solid-State Lighting
requirements.
Description
Applications
◆
Small package with high efficiency
◆
General Lighting
◆
◆
ESD protection up to 2KV
Soldering method: SMT
◆
◆
Indoor Lighting
Street Lighting
◆
◆
◆
◆
Moisture Sensitivity Level: 1
RoHS compliant
◆
Retrofits
Matches ANSI binning
Binning Parameters: Brightness, Forward Voltage,
Wavelength and Chromaticity
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
1
www.everlight.com
DATASHEET
EZHV
1W LED Series
Table of Content
Table of Content............................................................................................................................. 2
Product Nomenclature ................................................................................................................... 3
Absolute Maximum Ratings (Ts=25℃)........................................................................................... 4
JEDEC Moisture Sensitivity ........................................................................................................... 4
Luminous Flux Characteristics for the EZHV 1W series ................................................................ 5
PN of the EZHV 1W series : White LEDs....................................................................................... 6
Product Binning.............................................................................................................................. 7
Forward Voltage Bins................................................................................................................... 14
Mechanical Dimension................................................................................................................. 15
Pad Configuration ........................................................................................................................ 16
Reflow Soldering Characteristics ................................................................................................. 17
Typical Wavelength Characteristics ............................................................................................. 18
Typical Light Output Characteristic vs. Thermal Pad Temperature............................................... 19
Typical Relative Luminous Flux vs. Forward Current ................................................................... 19
Typical Electrical Characteristics.................................................................................................. 20
Typical CCT Shift Characteristics vs. Forword Current ................................................................ 20
Typical Radiation Patterns ........................................................................................................... 22
Typical Difference of CIE of Cool-White vs. Angle........................................................................ 23
Typical Difference of CIE of Warm-White vs. Angle ..................................................................... 23
Emitter Tape Packaging ............................................................................................................... 24
Emitter Reel Packaging................................................................................................................ 25
Product Labeling.......................................................................................................................... 25
Storage Conditions....................................................................................................................... 26
Revision History........................................................................................................................... 27
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
2
www.everlight.com

DATASHEET
EZHV
1W LED Series
Product Nomenclature
The product name is designated as below:
EZHV– ABCDE – FGHIJ – V1234
Designation:
AB = min. luminous flux (lm) or radiation power (mW) performance
C = radiation pattern [1]
D = color [2]
E = power consumption [3]
F = voltage group [4]
G = internal code
H = packaging type [5]
IJ = internal code
V = forward voltage bin
1234 = color bin or CCT bin
Note:
1. Table of radiation patterns
Symbol
Description
Lambertian
Others
1
2
2. Table of color offerings:
Symbol
Color
Color Temperature
4745~7050K
3710~4745K
C
N
M
Cool-White
Neutral-White
Warm-White
2580~3710K
3. Table of power consumptions:
Symbol
Description
1
2
4
1W
2W
4W
4. Voltage group.
Voltage group
Description
0 < VF < 25
25 < VF < 75
75 < VF < 127
127 < VF < 175
175 < VF < 243
0
1
2
3
4
5. Table of packaging types:
Symbol
Description
P
B
T
Tape
Tube
Tray
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
3
www.everlight.com
DATASHEET
EZHV
1W LED Series
Absolute Maximum Ratings (Ts=25℃)
Parameter
Symbol
Ratings
Unit
Max. DC Forward Current (mA)
Max. ESD Resistance
Reverse Voltage
IF
30[1]
2000
mA
V
VB
VR
Note [2]
10~12
125
V
Thermal Resistance
Rth
TJ
°C/W
°C
Max. Junction Temperature
Operating Temperature
Storage Temperature
TOpr
TStg
TSol
n/a
-40 ~ +100[3]
-40 ~ +100
260
°C
°C
Max. Soldering Temperature
Allowable Reflow Cycles
°C
2[4]
cycles
Notes:
1. Maximum forward current for 1W is 30mA (Thermal Pad=25℃).
2. The HV series LEDs are not designed for reverse bias operation.
3. Avoid operating HV LEDs at maximum operating temperature exceeding 1 hour.
4. It is not recommended to subject LED to two cycles of reflow.
JEDEC Moisture Sensitivity
Soak Requirements
Standard
Floor Life
Level
Time
(hours)
Time
(hours)
Conditions
≦30°C / 85% RH
Conditions
85°C / 85% RH
1
unlimited
168 (+5/-0)
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
4
www.everlight.com
DATASHEET
EZHV
1W LED Series
Luminous Flux Characteristics for the EZHV 1W series
1W
View Angle
Type
Color
Part Number
Drive Current
(mA)
Minimum Luminous Flux(lm)
（°）
Warm
White
3000
EZHV – F61M1
EZHV – F81C1
EZHV – F81C1
60
Cool
White
5700
80
80
20
110
Cool
White
6500
Notes:
1. Luminous flux measurement tolerance: ±10%.
2. The data of luminous flux measured at thermal pad=25℃
3. Typical luminous flux or light output performance is operated within the condition guided by this datasheet
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
5
www.everlight.com
DATASHEET
EZHV
1W LED Series
PN of the EZHV 1W series : White LEDs
The table below is a list of part numbers for the Everlight EZHV 1W series HV LED. All parts listed match ANSI
binning standards. Bin offerings of 3000K ,5700K and 6500K are listed and currently available. Typical view angle is
110°. These clearly listed binning options allow for proper design and implementation into lighting applications. The
Order Codes below are currently available EZHV 1W LEDs.
For Example: If you order product using P/N EZHV-F61M1-1LPHS-F3000, you will be specifying:
Forward
Voltage
(V)
Minimum
Luminous
Flux (lm)
Color Radiation
Variant Pattern
CRI
CCT
47-49(A3)
49-51(A4)
51-53(A5)
53-55(A6)
30K-1 ~ 30K-2
~
30K-3 ~ 30K-4
Warm
White
Lambertian 80
60
EZHV 1W series LEDs at 20mA are listed below：
Minimum
CCT (K)
CRI
Forward
Color
Order Code of EZHV
Luminous Flux
(lm)
Wavelength
(nm)
Voltage
(V)
(min)
F6
F7
F8
F8
F9
J1
F8
F9
J1
60
70
Warm
White
3000
30K-1~30K-4
57K-1~57K-4
65K-1~65K-4
EZHV-F61M1-1LPHS-F3000
80
80
80
Cool
White
5700
47~55
90
EZHV-F81C1-1LPGS-F5700
EZHV-F81C1-1LPGS-F6500
100
80
70
Cool
White
6500
90
100
Notes:
1. CRI measurement tolerance: ±2.
2. Luminous flux measurement tolerance: ±10%.
3. The data of luminous flux is measured at thermal pad=25oC
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
6
www.everlight.com
DATASHEET
EZHV
1W LED Series
Product Binning
Luminous Flux Bins
Minimum
Photometric
Flux (lm)
Maximum
Photometric
Flux (lm)
Minimum
Photometric Photometri
Flux (lm)
Maximum
Group
Bin
Group
Bin
c Flux (lm)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
4
5
6
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
225
250
275
300
325
350
375
400
425
450
475
500
525
550
575
600
625
650
675
700
725
750
775
800
850
900
950
250
275
300
325
350
375
400
425
450
475
500
525
550
575
600
625
650
675
700
725
750
775
800
850
900
950
1000
5
6
8
8
10
13
17
20
23
27
33
39
45
52
60
70
80
90
100
E
K
10
13
17
20
23
27
33
39
45
52
60
70
80
90
F
N
1
2
3
4
5
6
7
8
9
100
110
120
130
140
150
160
180
200
110
120
130
140
150
160
180
200
225
J
P
Notes:
1. Currently available brightness bins available for White LEDs are highlighted and bolded.
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
7
www.everlight.com
DATASHEET
EZHV
1W LED Series
White Bin Coordinates
Chromaticity specification defined by ANSI
Notes:
1.
2.
3.
4.
5.
The CCT range of Cool-White varies from 4745K to 7050K.
The CCT range of Neutral-White varies from 3710K to 4745K.
The CCT range of Warm-White varies from 2580K to 3710K.
Color coordinates measurement allowance: ±0.01.
Color bins are defined as IF=20mA operation within EZHV 1W series.
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
8
www.everlight.com
DATASHEET
EZHV
1W LED Series
Cool-White Bin Structure
Cool-White Bin Coordinates
6500K
Bin
CIE X
0.312
0.313
0.321
0.321
CIE Y
Bin
CIE X
0.303
0.305
0.313
0.312
CIE Y
0.330
0.321
0.329
0.339
0.339
0.329
0.337
0.348
65K-1
65K-2
Reference Range: 6020~6500K
Reference Range: 6500~7050K
Bin
65K-4
CIE X
0.313
0.315
0.322
0.321
CIE Y
Bin
65K-3
CIE X
0.305
0.307
0.315
0.313
CIE Y
0.329
0.319
0.326
0.337
0.321
0.311
0.319
0.329
Reference Range: 6020~6500K
Reference Range: 6500~7050K
5700K
Bin
CIE X
0.329
0.329
0.337
0.338
CIE Y
Bin
57K-2
CIE X
0.321
0.321
0.329
0.329
CIE Y
0.354
0.342
0.349
0.362
0.346
0.335
0.342
0.354
57K-1
Reference Range: 5310~5700K
Reference Range: 5700~6020K
Bin
57K-4
CIE X
0.329
0.329
0.337
0.337
CIE Y
Bin
57K-3
CIE X
0.321
0.322
0.329
0.329
CIE Y
0.342
0.331
0.337
0.349
0.335
0.324
0.331
0.342
Reference Range: 5310~5700K
Reference Range: 5700~6020K
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
9
www.everlight.com
DATASHEET
EZHV
1W LED Series
5000K
Bin
CIE X
0.346
0.345
0.353
0.355
CIE Y
0.369
0.356
0.362
0.376
Bin
CIE X
0.338
0.337
0.345
0.346
CIE Y
0.362
0.349
0.356
0.369
50K-1
50K-2
Reference Range: 4745~5000K
Reference Range: 5700~6020K
Bin
50K-4
CIE X
0.345
0.344
0.352
0.353
CIE Y
Bin
50K-3
CIE X
0.337
0.337
0.344
0.345
CIE Y
0.356
0.343
0.349
0.362
0.349
0.337
0.343
0.356
Reference Range: 4745~5000K
Reference Range: 5700~6020K
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
10
www.everlight.com
DATASHEET
EZHV
1W LED Series
Neutral-White Bin Structure
Neutral-White Bin Coordinates
4500K
Bin
CIE X
0.364
0.362
0.370
0.374
CIE Y
0.381
0.366
0.373
0.387
Bin
CIE X
0.355
0.353
0.362
0.364
CIE Y
0.374
0.360
0.366
0.381
45K-1
45K-2
Reference Range: 4260~4500K
Reference Range: 4500~4745K
Bin
45K-4
CIE X
0.362
0.359
0.367
0.370
CIE Y
Bin
45K-3
CIE X
0.353
0.351
0.359
0.362
CIE Y
0.366
0.352
0.358
0.373
0.360
0.347
0.352
0.366
Reference Range: 4260~4500K
Reference Range: 4500~4745K
4000K
Bin
CIE X
0.387
0.383
0.395
0.401
CIE Y
Bin
40K-2
CIE X
0.374
0.370
0.383
0.387
CIE Y
0.396
0.380
0.388
0.404
0.387
0.373
0.380
0.396
40K-1
Reference Range: 3710~4000K
Reference Range: 4000~4260K
Bin
40K-4
CIE X
0.383
0.378
0.390
0.395
CIE Y
Bin
40K-3
CIE X
0.370
0.367
0.378
0.383
CIE Y
0.380
0.365
0.372
0.388
0.373
0.358
0.365
0.380
Reference Range: 3710~4000K
Reference Range: 4000~4260K
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
11
www.everlight.com
DATASHEET
EZHV
1W LED Series
Warm-White Bin Structure
Wram-White Bin Coordinates
3500K
Bin
CIE X
0.415
0.408
0.422
0.430
CIE Y
Bin
CIE X
0.400
0.394
0.408
0.415
CIE Y
0.402
0.385
0.392
0.409
0.409
0.392
0.399
0.417
35K-1
35K-2
Reference Range: 3220~3500K
Reference Range: 3500~3710K
Bin
35K-4
CIE X
0.408
0.402
0.415
0.422
CIE Y
Bin
35K-3
CIE X
0.394
0.389
0.402
0.408
CIE Y
0.392
0.375
0.381
0.399
0.385
0.369
0.375
0.392
Reference Range: 3220~3500K
Reference Range: 3500~3710K
3000K
Bin
CIE X
0.443
0.435
0.447
0.456
CIE Y
Bin
30K-2
CIE X
0.430
0.422
0.435
0.443
CIE Y
0.421
0.403
0.408
0.426
0.417
0.399
0.403
0.421
30K-1
Reference Range: 2870~3000K
Reference Range: 3000~3220K
Bin
30K-4
CIE X
0.435
0.426
0.437
0.447
CIE Y
Bin
30K-3
CIE X
0.422
0.415
0.426
0.435
CIE Y
0.403
0.385
0.389
0.408
0.399
0.381
0.385
0.403
Reference Range: 2870~3000K
Reference Range: 3000~3220K
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
12
www.everlight.com
DATASHEET
EZHV
1W LED Series
2700K
Bin
CIE X
0.469
0.459
0.470
0.481
CIE Y
0.429
0.410
0.413
0.432
Bin
CIE X
0.456
0.447
0.459
0.469
CIE Y
0.426
0.408
0.410
0.429
27K-1
27K-2
Reference Range: 2580~2700K
Reference Range: 2700~2870K
Bin
27K-4
CIE X
0.459
0.448
0.459
0.470
CIE Y
Bin
27K-3
CIE X
0.447
0.437
0.448
0.459
CIE Y
0.410
0.392
0.394
0.413
0.408
0.389
0.392
0.410
Reference Range: 2580~2700K
Reference Range: 2700~2870K
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
13
www.everlight.com
DATASHEET
EZHV
1W LED Series
Forward Voltage Bins
Group Name
Bins
A
B
C
D
E
F
A3+A4
A4+A5
A5+A6
A3+A4+A5
A4+A5+A6
A3+A4+A5+A6
Production Line
Maximum voltage (V)
Bins
Minimum voltage (V)
A1
A2
A3
A4
A5
A6
A7
A8
A9
43
45
47
49
51
53
55
57
59
45
47
49
51
53
55
57
59
61
Notes:
1. Forward voltage measurement tolerance: ±1V.
2. Forward voltage bins are defined at IF=20mA operation.
3. Other Forward Voltage bins for White LEDs available upon request. Please contact your local Everlight sales office.
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
14
www.everlight.com
DATASHEET
EZHV
1W LED Series
Mechanical Dimension
Notes:
1. Dimensions are in millimeters.
2. Tolerances unless mentioned are ± 0.15mm.
3. Do not handle the device by the lens. Incorrect force applied to the lens may lead to the failure of devices.
4. The thermal pad is electrically isolated from the Anode and Cathode contact pads.
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
15
www.everlight.com
DATASHEET
EZHV
1W LED Series
Pad Configuration
PAD
FUNCTION
ANODE
1
2
CATHODE
P
THERMAL PAD
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
16
www.everlight.com
DATASHEET
EZHV
1W LED Series
Reflow Soldering Characteristics
For Reflow Process
A. Suitable for SMT processes.
B. Curing of glue in oven must be according to standard operation flow processes.
C.Reflow soldering should not be done more than twice.
D.In soldering process, stress on the LEDs during heating should be avoided.
E.After soldering, do not bend the circuit board.
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
17
www.everlight.com
DATASHEET
EZHV
1W LED Series
Typical Wavelength Characteristics
For Cool-White (Thermal Pad Temperature = 25℃)
For Warm-White (Thermal Pad Temperature = 25℃)
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
18
www.everlight.com
DATASHEET
EZHV
1W LED Series
Typical Light Output Characteristic vs. Thermal Pad Temperature
Cool-White and Warm-White for 20mA Drive Current
Typical Relative Luminous Flux vs. Forward Current
Cool-White and Warm-White for 20mA Drive Current
@ Thermal Pad Temperature = 25℃
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
19
www.everlight.com
DATASHEET
EZHV
1W LED Series
Typical Electrical Characteristics
Cool-White and Warm-White for 20mA Drive Current
@ Thermal Pad Temperature = 25℃
Typical CCT Shift Characteristics vs. Forword Current
For Cool-White @ Thermal Pad Temperature = 25℃
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
20
www.everlight.com
DATASHEET
EZHV
1W LED Series
For Warm-White @ Thermal Pad Temperature = 25℃
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
21
www.everlight.com
DATASHEET
EZHV
1W LED Series
Typical Radiation Patterns
Typical Spatial Radiation Pattern for Cool-White and Warm-White
Notes:
1. 2θ1/2 is the off axis angle from lamp centerline where the luminous intensity is 1/2 of the peak value.
2. Viewing angle tolerance is ± 10∘ .
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
22
www.everlight.com
DATASHEET
EZHV
1W LED Series
Typical Difference of CIE of Cool-White vs. Angle
Typical Difference of CIE of Warm-White vs. Angle
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
23
www.everlight.com
DATASHEET
EZHV
1W LED Series
Emitter Tape Packaging
Carrier Tape Dimensions as the following:
Order Qty.: > 2Kpcs, MPQ: 400pcs/reel
Notes:
1. Dimensions are in millimeters.
2. Tolerances for fixed dimensions are ±0.1mm..
Moisture Resistant Packaging
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
24
www.everlight.com
DATASHEET
EZHV
1W LED Series
Emitter Reel Packaging
Reel Dimensions
Notes:
1.Dimensions are in millimeters
2.Tolerances unless mentioned are ±0.1mm
Product Labeling
Label Explanation
CPN: Customer Specification (when required)
P/N : Everlight Production Number
QTY: Packing Quantity
CAT: Luminous Flux (Brightness) Bin
HUE: Color Bin
REF: Forward Voltage Bin
LOT No: Lot Number
MADE IN TAIWAN: Production Place
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
25
www.everlight.com
DATASHEET
EZHV
1W LED Series
Storage Conditions
Before the package is opened. The LEDs should be stored at 30°C or less and 85%RH or less after
being shipped from Everlight and the storage life limits are 1 year. If the LEDs are stored for 1 year or
more, they can be stored for 3 years in a sealed container with a nitrogen atmosphere and moisture
absorbent material.
After opening the package: The LED's floor life is 1 year under 30℃ or less and 60%RH or less. The
LED should be soldered with 168hrs (7days) after opening the package. If unused LEDs remain, it
should be stored in moisture proof packages.
If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage
time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃
for 24 hours.
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
26
www.everlight.com
DATASHEET
EZHV
1W LED Series
Revision History
Current version: 10/19/2011
Previous version: 05/10/2011
Device No.
Rev.3
Page
Subjects (major change in previous version)
Date of change
New Spec.
05/10/2011
Increased Bin offerings of 2700K,3500K,4000K,4500K,5000K,
5700K,6500K
5，6，9
09/22/2011
21
9
modified Emitter Tape Packaging
09/22/2011
10/19/2011
Modified 65K-4 & 65K-3 CIE-X is 0314 changed of 0.315
Modified Mechanical Dimension of the tolerances unless
mentioned are ± 0.15mm
15
24
10/19/2011
10/19/2011
Modified of Emitter Tape Packaging
Copyright © 2011, Everlight All Rights Reserved. Release Date: 10.19.2011. Issue No: DHE-0001538
27
www.everlight.com
厂商 型号 描述 页数 下载

EVERLIGHT

 		EZHV-F61M1 小包装效率高[ Small package with high efficiency ] 27 页

EVERLIGHT

 		EZHV-F61M1-1LPHS-F3000 小包装效率高[ Small package with high efficiency ] 27 页

EVERLIGHT

 		EZHV-F81C1 小包装效率高[ Small package with high efficiency ] 27 页

EVERLIGHT

 		EZHV-F81C1-1LPGS-F5700 小包装效率高[ Small package with high efficiency ] 27 页

EVERLIGHT

 		EZHV-J31M2 白光LED[ White LED ] 21 页

EVERLIGHT

 		EZHV-J31M2-2LPHS-F2700 白光LED[ White LED ] 21 页

EVERLIGHT

 		EZHV-J31M2-2LPHS-F3000 白光LED[ White LED ] 21 页

EVERLIGHT

 		EZHV-K21M4 小包装效率高[ Small package with high efficiency ] 27 页

EVERLIGHT

 		EZHV-K21M4-2LPHS-F3000 小包装效率高[ Small package with high efficiency ] 27 页

EVERLIGHT

 		EZHV-K51C4 小包装效率高[ Small package with high efficiency ] 27 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.214910s
