1SS356WS

型号:

1SS356WS

描述:

波段开关二极管[ BAND SWITCHING DIODE ]

品牌:

SEMTECH[ SEMTECH CORPORATION ]

页数:

3 页

PDF大小:

208 K

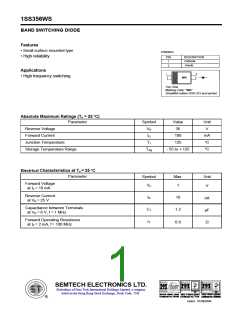

1SS356WS
BAND SWITCHING DIODE
Features
• Small surface mounted type
• High reliability
PINNING
DESCRIPTION
Cathode
PIN
1
Anode
2
Applications
2
1
• High frequency switching
WR
Top View
Marking Code: "WR"
Simplified outline SOD-323 and symbol
O
Absolute Maximum Ratings (Ta = 25 C)
Parameter
Symbol
VR
Value
35
Unit
V
Reverse Voltage
Forward Current
IO
100
mA
O
Junction Temperature
Storage Temperature Range
TJ
125
C
O
C
Tstg
- 55 to + 125
O
Electrical Characteristics at Ta = 25 C
Parameter
Symbol
VF
Max.
1
Unit
V
Forward Voltage
at IF = 10 mA
Reverse Current
at VR = 25 V
IR
CT
rF
10
nA
pF
Capacitance between Terminals
at VR = 6 V, f = 1 MHz
1.2
Forward Operating Resistance
at IF = 2 mA, f = 100 MHz
0.9
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 01/09/2006
1SS356WS
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 01/09/2006
1SS356WS
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
SOD-323
A
c
HE
A
D
E
bp
UNIT
mm
A
bp
C
D
E
HE
1.10
0.80
2.80
2.30
0.40
0.25
1.35
1.15
0.15
0.00
1.80
1.60
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 01/09/2006
