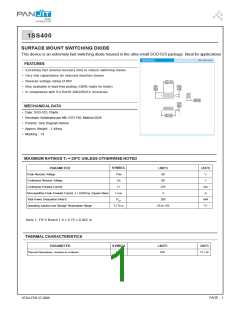

1SS400
SURFACE MOUNT SWITCHING DIODE
This device is an extremely fast switching diode housed in the ultra-small SOD-523 package. Ideal for applications
FEATURES
• Extremely fast reverse recovery time to reduce switching losses
• Very low capacitance for reduced insertion losses
• Reverse voltage rating of 80V
• Also available in lead-free plating (100% matte tin finish)
• In compliance with EU RoHS 2002/95/EC directives
MECHANICALDATA
• Case: SOD-523, Plastic
• Terminals: Solderable per MIL-STD-750, Method 2026
• Polarity: See Diagram Below
• Approx.Weight : 1.48mg
• Marking : 14
MAXIMUM RATINGS TJ = 25OC UNLESS OTHERWISE NOTED
SYMBOL
PARAMETER
Peak Reverse Voltage
LIMITS
UNITS
V
90
80
V
RM
Continuous Reverse Voltage
V
V
R
Continuous Forward Current
225
mA
A
I
F
Non-repetitive Peak Forward Current , t = 0.001ms, Square Wave
Total Power Dissipation (Note1)
4
I
FSM
200
mW
OC
Ptot
Operating Junction and Storage Temperature Range
-55 to 150
TJ,TSTG
Note 1. FR-5 Board 1.0 x 0.75 x 0.062 in
THERMALCHARACTERISTICS
SYMBOL
PARAMETER
LIMITS
625
UNITS
OC / W
Thermal Resistance, Junction to Ambient
RθJA
PAGE . 1
STAD-FEB.27.2008
