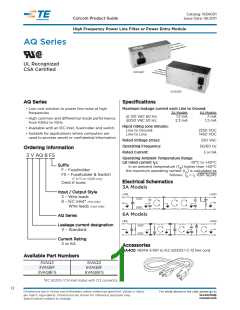

Catalog: 1654001
Issue Date: 06.2011
Corcom Product Guide
High Frequency Power Line Filter or Power Entry Module
AQ Series
UL Recognized
CSA Certified
3VAQ8F
6VAQ8F
AQ Series
Specifications
• Low cost solution to power line noise at high
frequencies
Maximum leakage current each Line to Ground:
3A Models
1.2 mA
6A Models
@ 120 VAC 60 Hz:
@250 VAC 50 Hz:
.7 mA
• High common and differential mode performance
from 10kHz to 1GHz
2.3 mA
1.2 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
• Available with an IEC inlet, fuseholder and switch
2250 VDC
1450 VDC
• Suitable for applications where computers are
used to process secret or confidential information
Rated Voltage (max):
Operating Frequency:
Rated Current:
250 VAC
50/60 Hz
3 or 6A
Ordering Information
3 V AQ 8 FS
Operating Ambient Temperature Range
(at rated current I ): -10°C to +40°C
r
Suffix
F – Fuseholder
In an ambient temperature (T ) higher than +40°C
a
the maximum operating current (I ) is calculated as
o
FS – Fuseholder & Switch
follows: I = I (85-Ta)/45
o
r
(F & FS on VAQ8 only)
Electrical Schematics
3A Models
Omit if none
Input / Output Style
3 – Wire leads
LINE
LOAD
8 – IEC inlet* (line side)
Wire leads (load side)
6A Models
AQ Series
LINE
LOAD
Leakage current designation
V – Standard
Current Rating
3 or 6A
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
Available Part Numbers
3VAQ3
3VAQ8F
3VAQ8FS
6VAQ3
6VAQ8F
6VAQ8FS
*IEC 60320-1 C14 inlet mates with C13 connector
12
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
